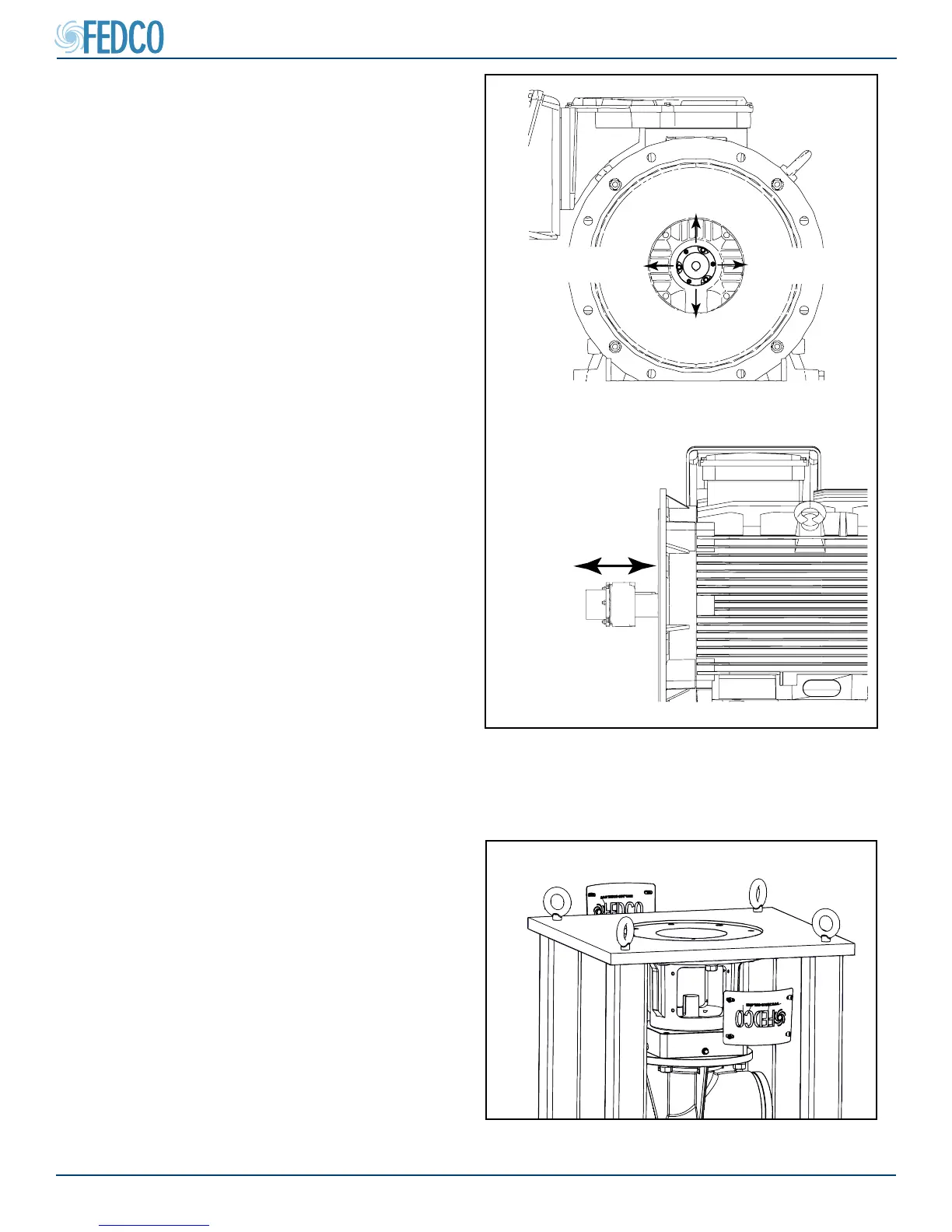

Figure 39 - Remove Coupling Guards
5. Loosen screws and remove the two coupling
guards. This allows better access to view
the coupling alignment.
Figure 38 - Check Flex Coupling Fit On Shaft
4. Inspect the exible coupling radial and axial
t. It should be tight with no visible radial
movement and slide smoothly on and o󰀨
the motor shaft.
Pump Assembly Continued
NO
MOVEMENT
NO
MOVEMENT
NO
MOVEMENT
NO
MOVEMENT
SMOOTH MOVEMENT
