Pump Assembly Continued
FEELER GAGE

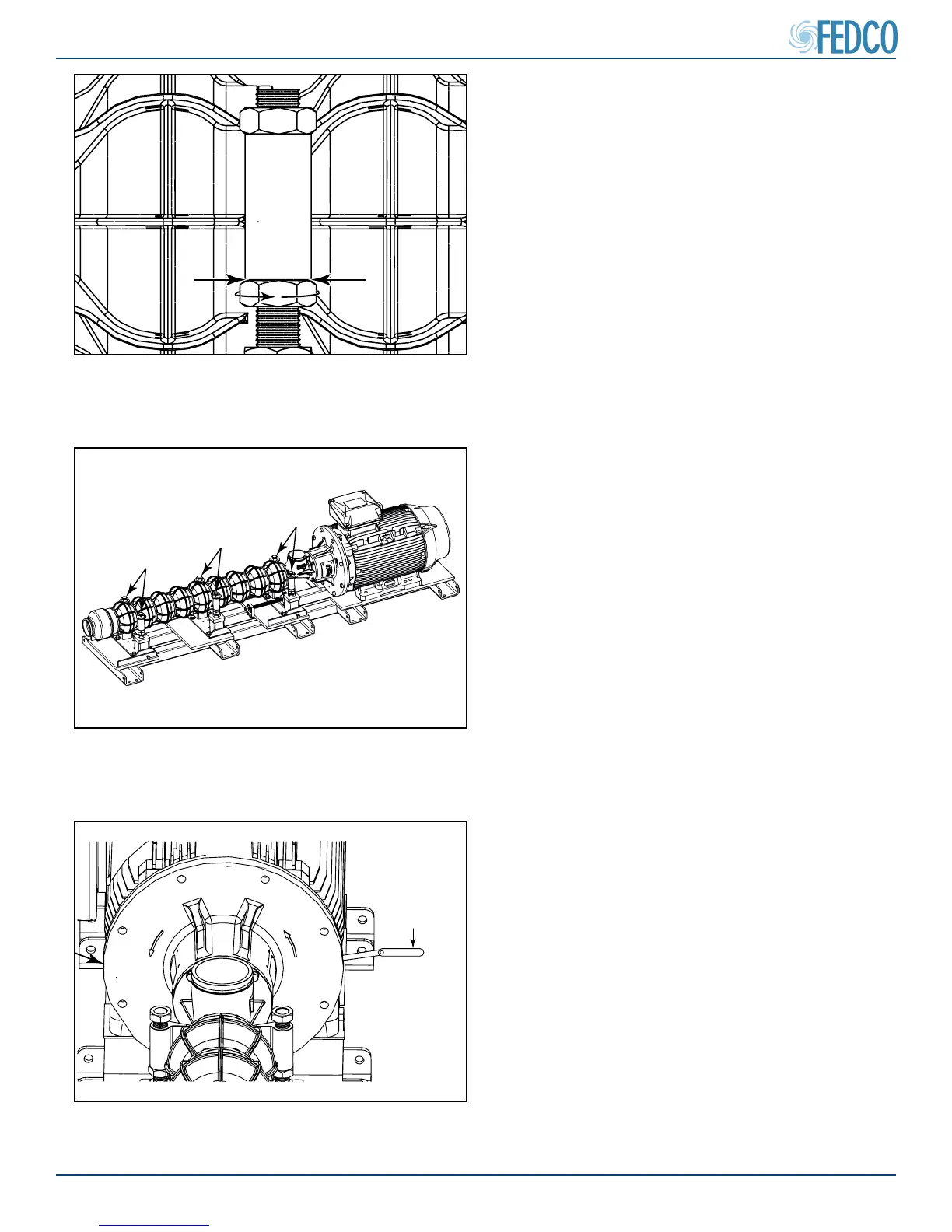

Figure 69 - Measuring Motor Adapter Side Gap
12. Using feeler gauges, re-measure any gap
between the motor adapter and the motor
on both sides of the motor adapter.
NOTES: In some instances, there may be no
gap between the motor and motor adapter.
NOTES: These values should be identical with
the “C” & “D” values found in the Start Up Re-
cord section of this manual.
11. Tighten all precision leveling feet top nuts
to torque specs specied in the Fastener
Torque Specications section of this manu-
al.
Figure 68 - Precision Leveling Foot Top Nuts
Figure 67 - Intermediate Leveling Foot
Adjustment
10. Rotate the adjustment nuts on the inter-
mediate leveling feet until they contact the
bottom of the stage brackets.
To Next Page
