SECTION IB-2A-210
INSTALLATION & OPERATION INSTRUCTIONS
TYPE PSE PAD-MOUNTED SWITCHGEAR
NOVEMBER 2017, REV 4.2
PAGE 7

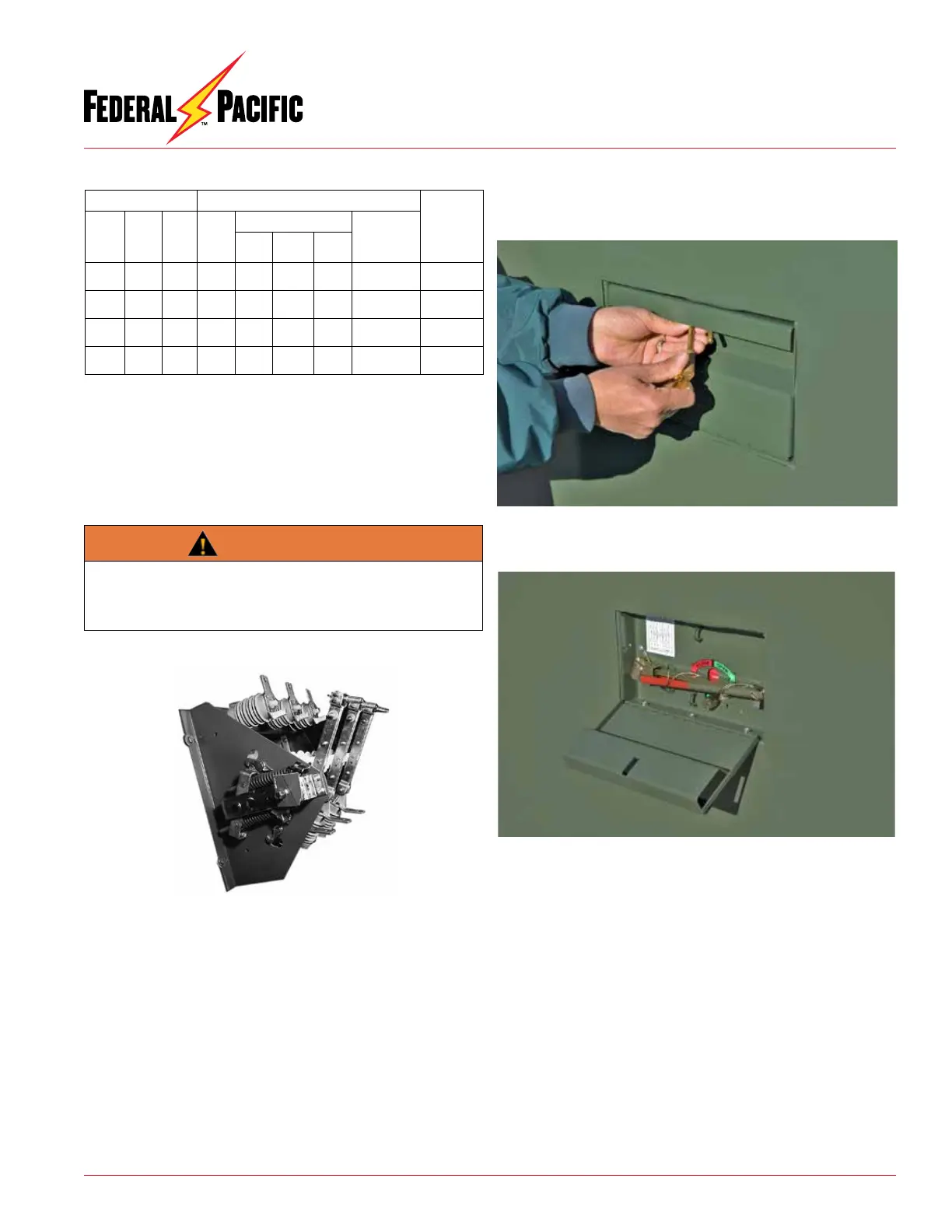

Figure 12. Remove padlock.
Figure 13. Open switch lockbox access cover. Handle is connected to
enclosure by a cable.
Ratings of the pad-mounted switchgear assembly are based on
the lowest ratings of the components furnished. Refer to ratings
labels on the interior of the compartment doors.
Figure 11. 15-kV Auto-jet
®
II Switch
*The three-time duty-cycle fault-closing rating means that the switch
can be closed three times into rated fault amperes and remain
operable and able to carry and interrupt its rated load current.
Switch Ratings
kV Amperes, RMS
Fault-
Close
Duty
Cycle*
Nom.
Max.
Des.
BIL Cont.
Interrupting
Nom. &
Fault-Close
(ASYM KA)
Load Cap. Mag.
15 17.5 95 600 600 10 21 40 3
15 17 95 1200 1200 10 21 40 3
25 27 125 600 600 15 21 40 3
35 38 150 600 600 20 21 40 3
Operating the Auto-Jet
®
II Switch
1. Remove padlock and open the switch lockbox access cover.
(See Figures 12 and 13.)
WARNING
To avoid exposure to potential arcing conditions and even though
the switch is behind a grounded panel, it is recommended that
all switching operations with the Auto-jet
®
switch be performed
with all enclosure doors closed and latched.
To Next Page
