Federal RSSM360 - Locating Case in Counter & Counter Drop-In Cutout All Versions

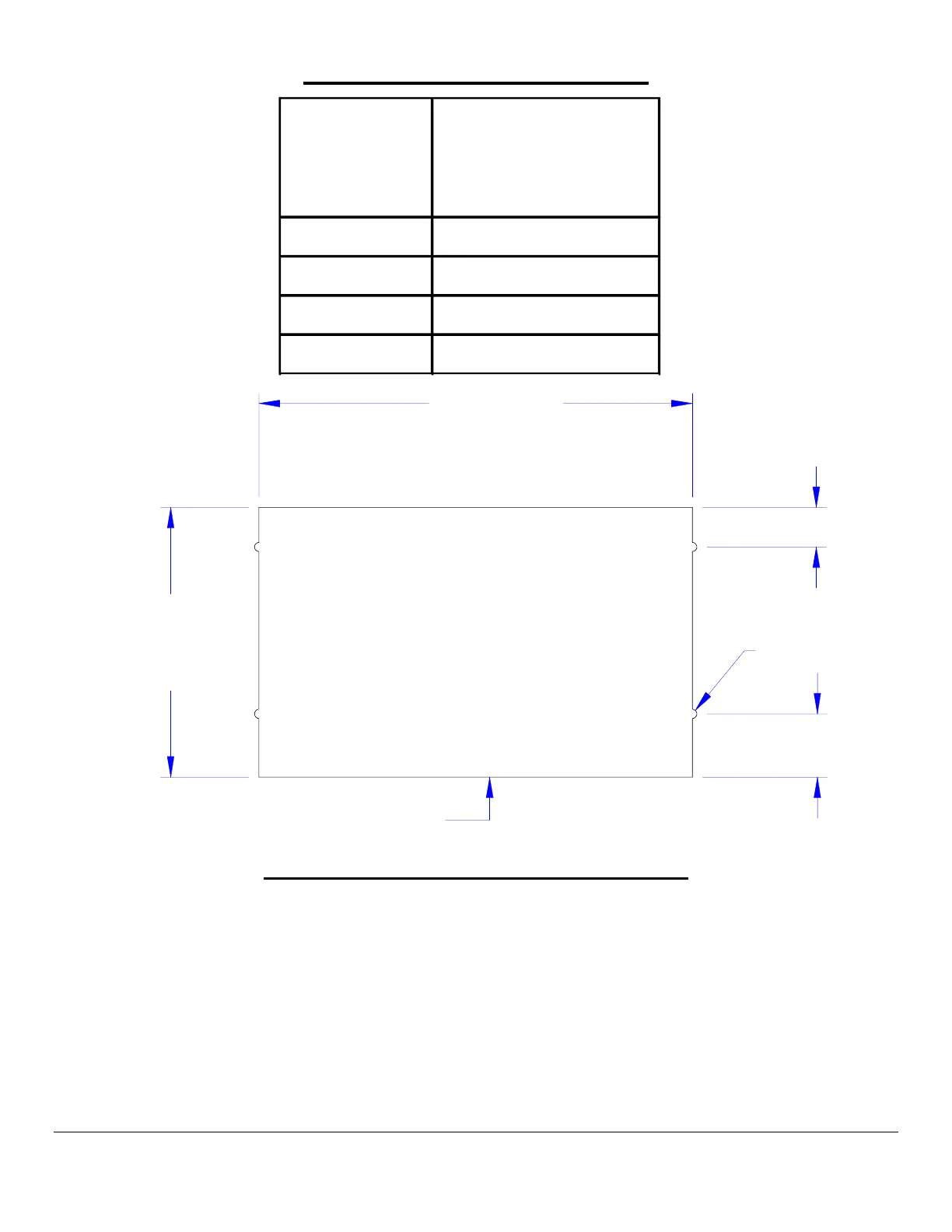

COUNTER DROP-IN CUTOUT
L1
CUTOUT
29.50
" W1 "
CUTOUT
FRONT
CUTOUT
4.34
6.92
R .50
MODEL
COUNTER CUTOUT
L1 X W1
RSSM360 36.50 X 29.50
RSSM460 47.50 X 29.50
RSSM560 59.50 X 29.50
RSSM660 71.50 X 29.50
LOCATING CASE IN THE COUNTER
- Remove two-piece trim from around case.
- The 1/2: radiuses shown in the cutout are for clearance of weld nuts attaches to the side
flanges on the case. These weld nuts accept the eye bolts supplied with the case for lifting the
case to drop-in thru the cutout made in the counter top.
- Once the case is positioned the eye bolts will need to be removed so the two-piece trim can be
installed.
- Alternate install – case can be slid into an opening in the counter and a removable panel or
swing doors can be in installed for accessing and or servicing some components in the base
including electronic temperature control.
Refrigerated Self-Serve Merchandiser (High Profile) Page 25
