10 Assembly and Wiring
The antenna is intended for the indoor use on a plane surface (desktop) or for mounting behind or
under a mounting plate (non-conductive).
For the operation on a plane surface, rubber bumpers are mounted on the backside of the anten-
na.
The mounting behind or under a mounting plate can take place via domes, which are suggested
with bore holes on the backside of the antenna housing.
The surface of the acrylic glass plate is protected by a foil to avoid scratches from
transport and installation work. After the installation, the protection foil can be re-
moved carefully, starting at a corner.
10.1 Dimensions
The dimensions and the mounting holes of the shielded pad antenna are shown in the following
picture.
All dimensions are shown in mm (inch):
376,2 (14,81)
275,7 (10,85)
280 (11,02)
215 (8,46)
140 ( 5,51)42,8 (1,68)
240 (9,44)
6 x Ø 1,5 (0,06)

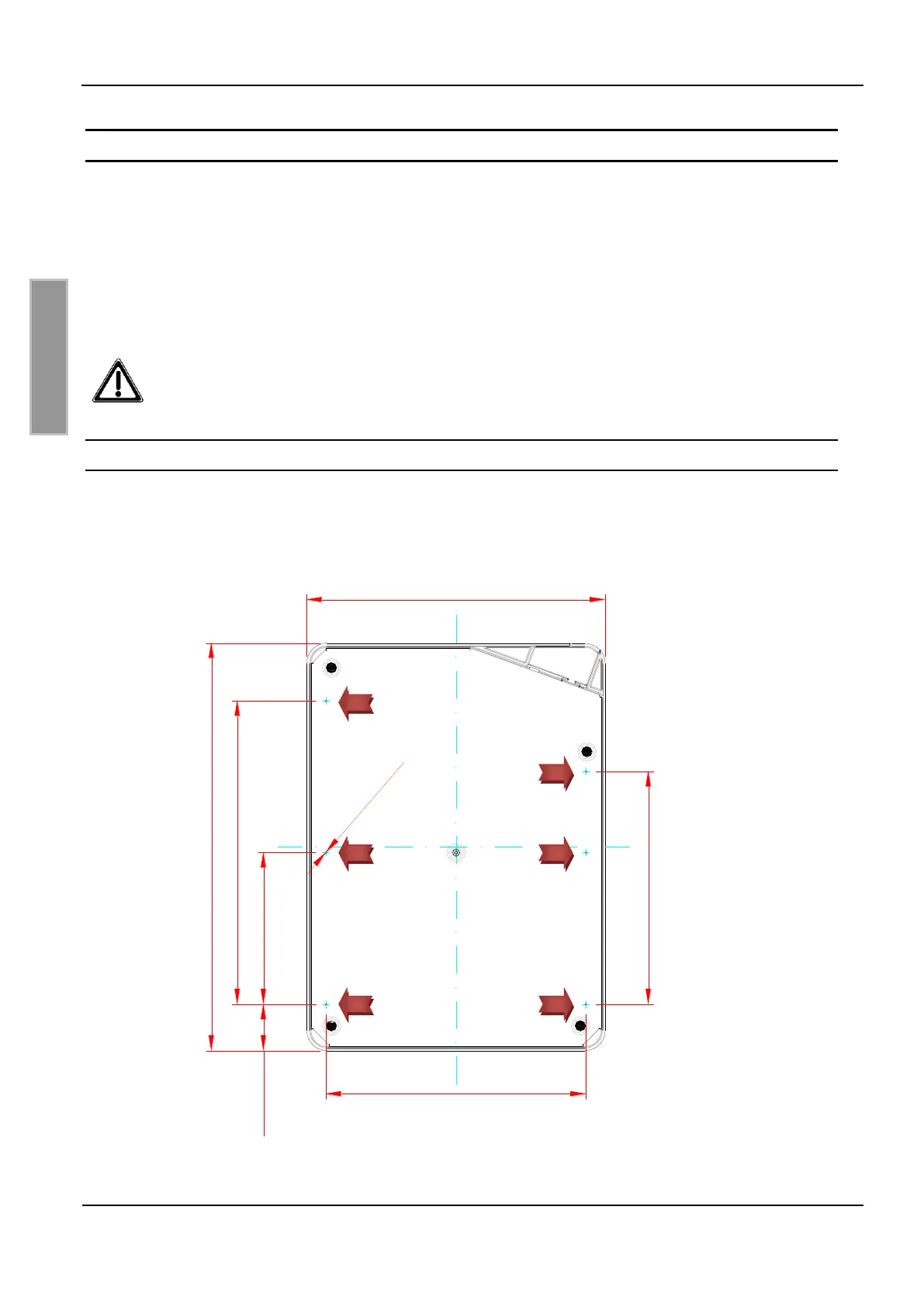

Figure 1: Dimensions of the antenna and positions of mounting holes (backside)
