Ethernet Interface on connector X1
The Reader has an integrated 10 / 100 base-T network port for an RJ-45. Connection is made on
X1 and has an automatic “Crossover Detection” according to the 100BASE-T Standard.
With structured cabling STP CAT 5 cables should be used. This ensures a reliable operation at
10 Mbps or 100 Mbps.
The prerequisite for using TCP/IP protocol is that each device has a unique address on the net-
work. All Readers have a factory set IP address.
Table 7: Standard factory configuration of the Ethernet connection
USB Interface on connector X3
The USB socket on the board is terminal X3. The pinout is standardized. The data rate is reduced
to 12 Mbit (USB full speed). A standard shielded USB-cable can be used.

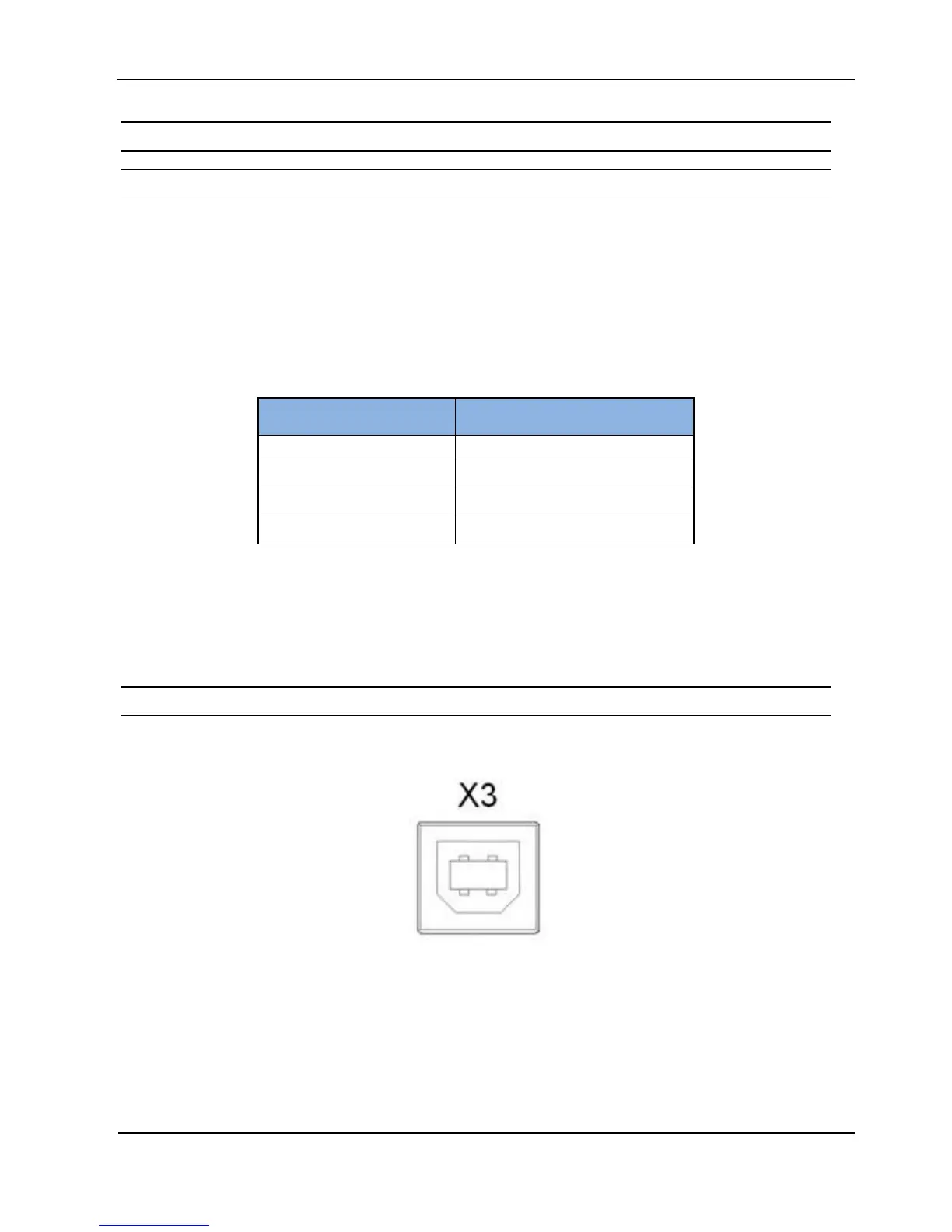

Figure 5: USB-Interface for host communication
NOTE:
The length of the USB-cable can have a max. of 5m (20 inch). It is not allowed to use longer
cables.
