Feig Electronic OBID i-scan UHF User Manual

OBID i-scan
®
UHF
Installation
ID ISC.LRU1002
FEIG ELECTRONIC GmbH
Page 19 of 29
M31010-1e-ID-B.docx
5.
Operating and Display Elements
5.1.

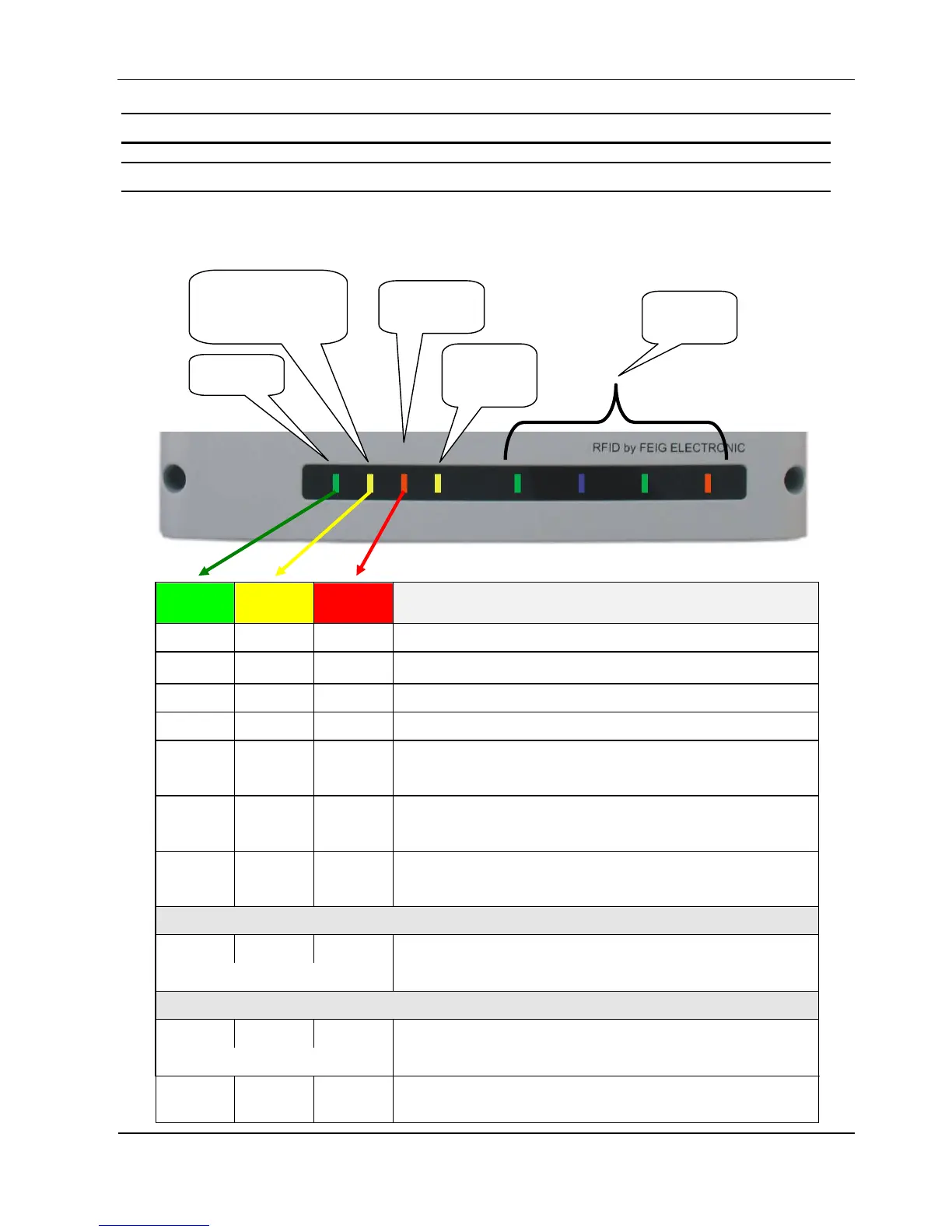

Status LEDs
Table 13: Configuration of the LEDs
Green
Yellow
Red
Description
ON
OFF
ON
Boot sequence (ca.10s) after power on
FLASH
OFF
OFF
Normal Reader operation (without Host communication)
FLASH
FLASH
OFF
Reader receives a valid protocol from host
FLASH
OFF
ON
RF Warning [0x84] (without host communication)
FLASH
(alternat-
ing)
OFF
FLASH
(alternat-
ing)
Firmware Activation necessary [0x17] /
Wrong Firmware [0x18]
FLASH
(synchro-
nous)
OFF
FLASH
(synchro-
nous)
RFC Hardware Error [0xF1]
OFF
FLASH
(synchro-
nous)
FLASH
(synchro-
nous)
Hardware Warning
(EEPROM Error / RFC not detected)
Firmware Update:
FLASH
FLASH
FLASH
Firmware transfer from host to reader
(Please do not switch off the reader or disconnect the interface cable)
(light in sequence)
Configurations-Reset:
FLASH
FLASH
FLASH
While T1 is pushed and hold for maximal 5s
(light in sequence)
ON
ON
ON
After T1 has been pushed and hold for 5s. Configuration
Reset has been finished.
ANT 1- 4
RUN
Host
Communication
Warning
RFU
