Feig Electronic OBID i-scan UHF User Manual

OBID i-scan
®
UHF
Installation
ID ISC.LRU1002
FEIG ELECTRONIC GmbH
Page 16 of 29
M31010-1e-ID-B.docx
4.5.
Outputs on connector X4
4.5.1.
Digital outputs on connector X4
Optocoupler output:
The transistor connections, collector and emitter, of the optocoupler output are galvanically isolated
from the Reader electronics and are carried to the outside without any internal ancillary circuitry on
Terminal X4. The output must therefore be powered by an external power supply.

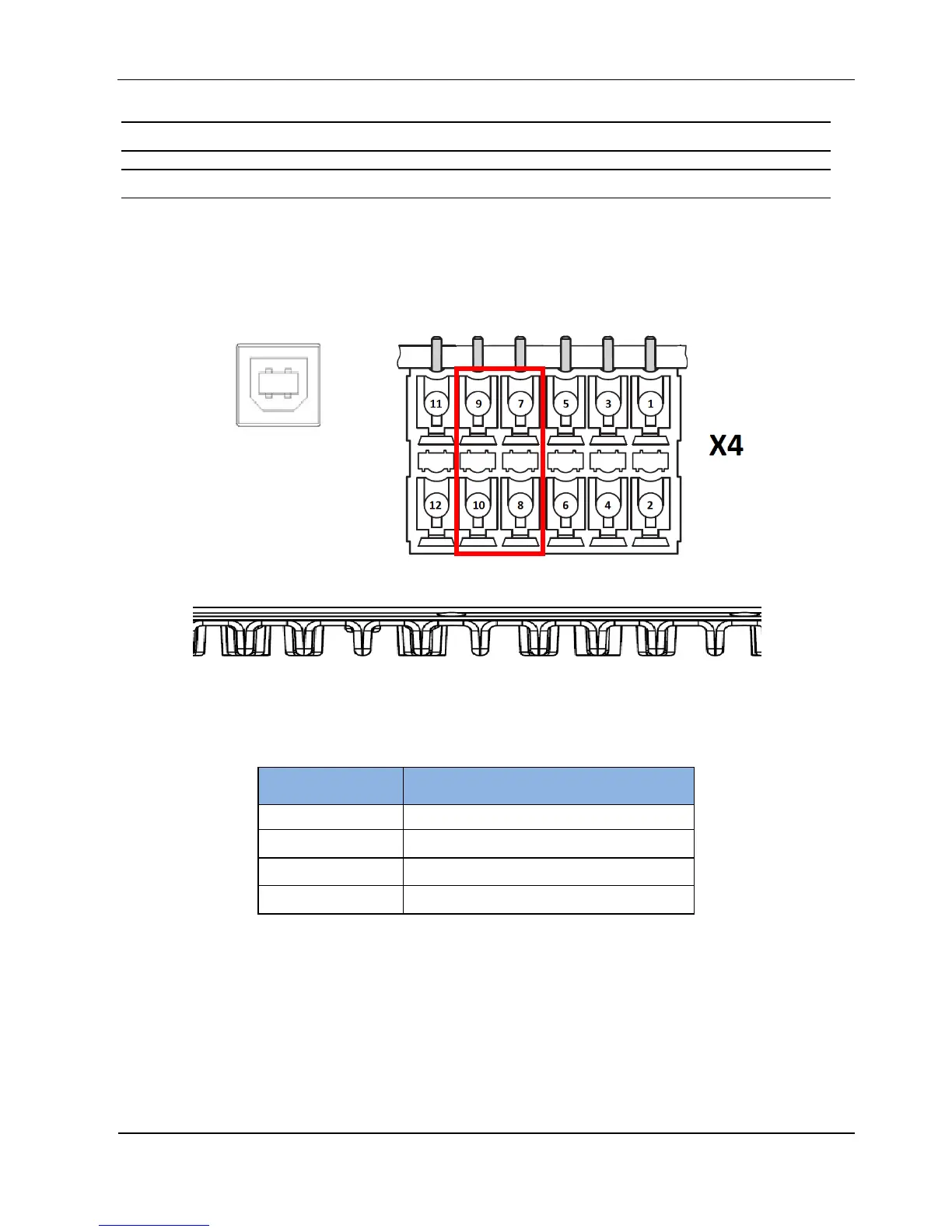

Figure 11: Optocoupler -Outputs OUT1-2
Table 11: Pin Assignment digital Output OUT1 / OUT2
Pin Number
at Connector X4
Pinbelegung
7
OUT1-E
8
OUT1-C
9
OUT2-E
10
OUT2-C
