OBID

i-scan

UHF

Installation

ID ISC.LRU1002

FEIG ELECTRONIC GmbH

Page 12 of 29

M31010-1e-ID-B.docx

4.3.3.

RS232 Interface on connector X4

The RS232 interface is connected on X4. The transmission parameters can be configured by

means of software protocol.

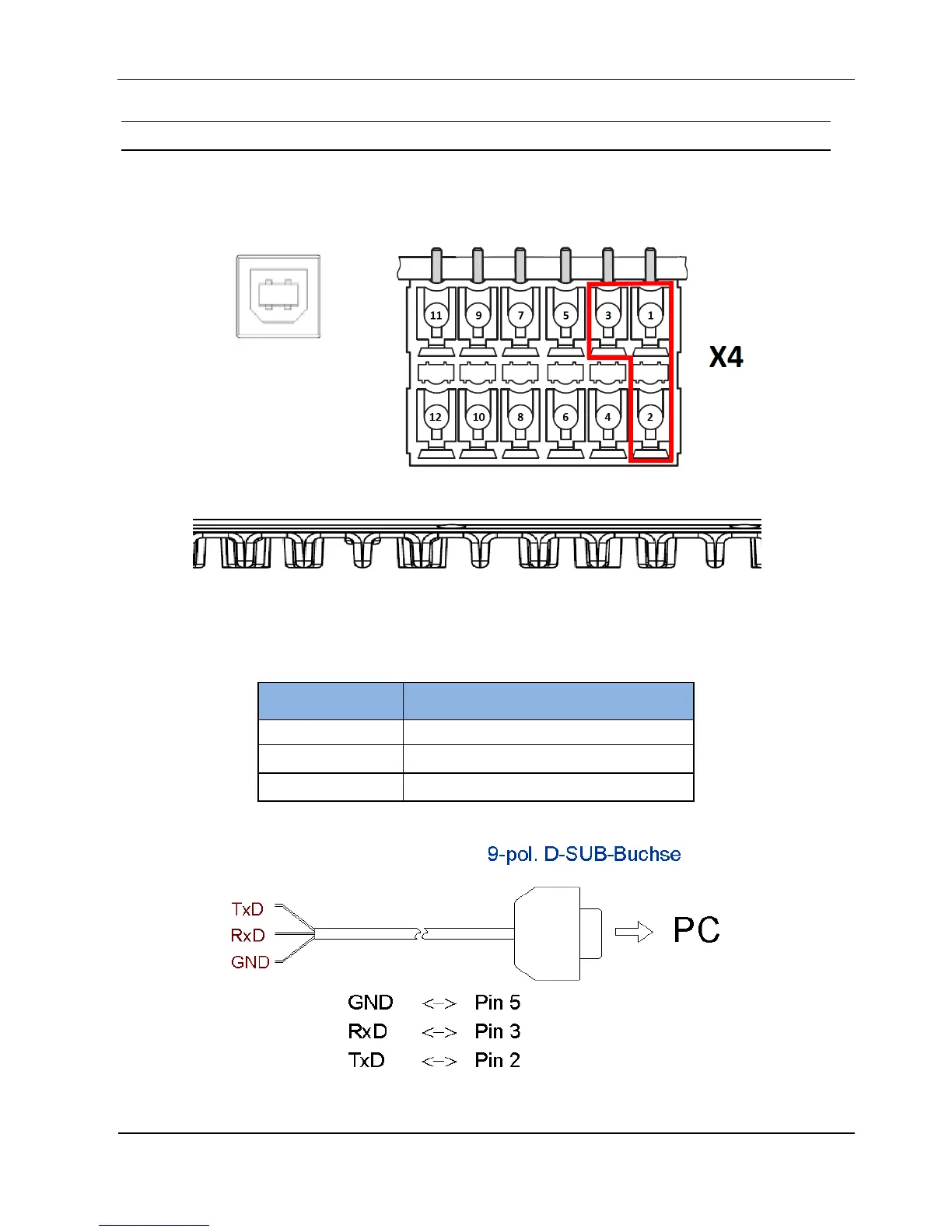

Figure 6: RS232 interface pin-outs on X4

Table 8: Pin Assignment RS232 Interface

Pin Number

at Connector X4

Pin Assignment

RS232 – RxD

RS232 – TxD

GND

Figure 7: Wiring example for connecting the RS232 interface to a 9 pin D-SUB plug
