Installation

ID ISC.LRU1002

FEIG ELECTRONIC GmbH

Page 9 of 29

M31010-1e-ID-B.docx

4.1.

Antenna Connection

The external SMA antenna connectors are positioned on the lower side of the reader.

The maximum tightening torque for the SMA sockets is 0.45 Nm (4.0 lbf in).

CAUTION:

Exceeding the tightening torque will destroy the plug.

Table 5: External antenna connection

Terminal

Description

ANT 1 - 4

Connection for external antennas (input impedance 50)

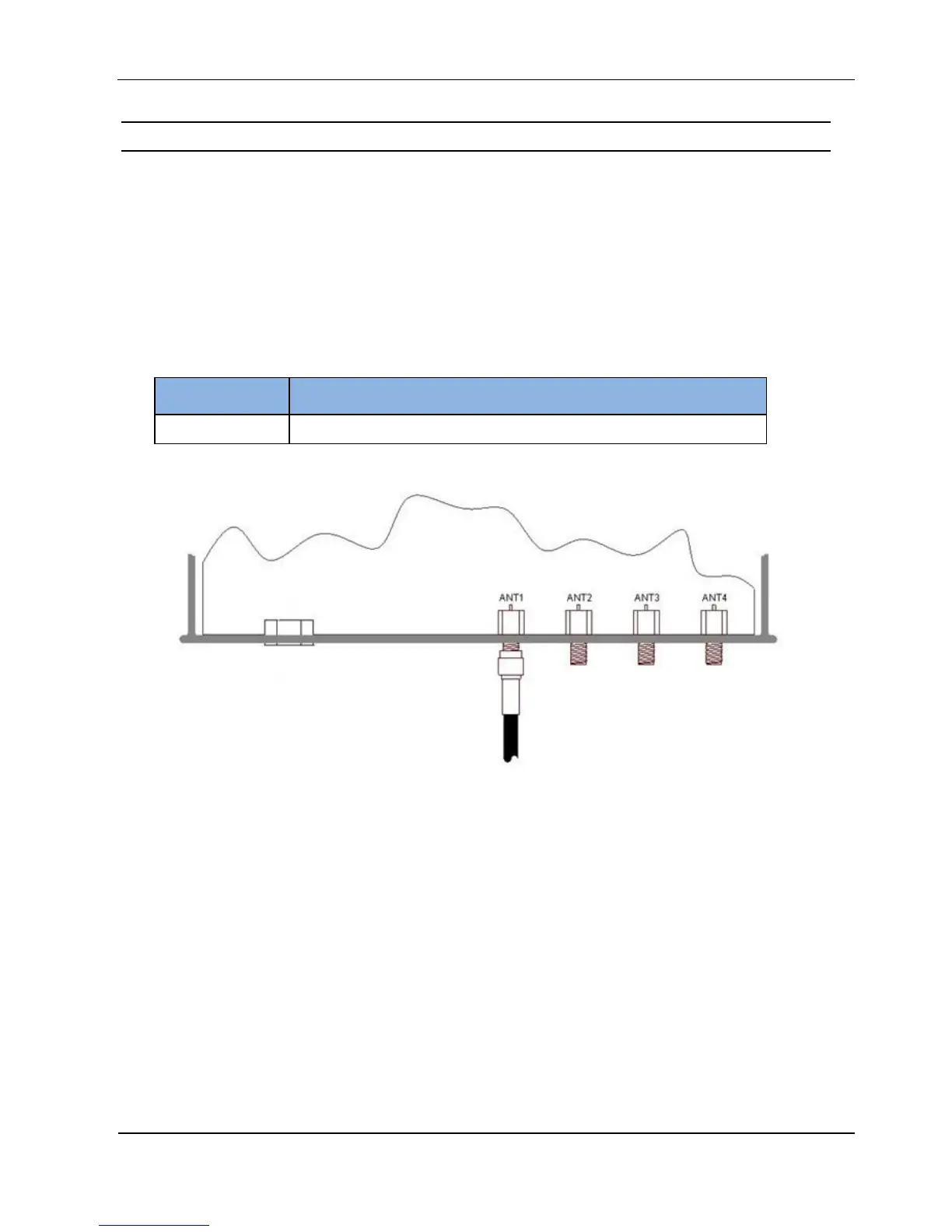

Figure 3: External antenna connection ANT1-4
