6. Removal
C-SC_CSSM
Version 1.0
2017-10-12
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 30 of 65

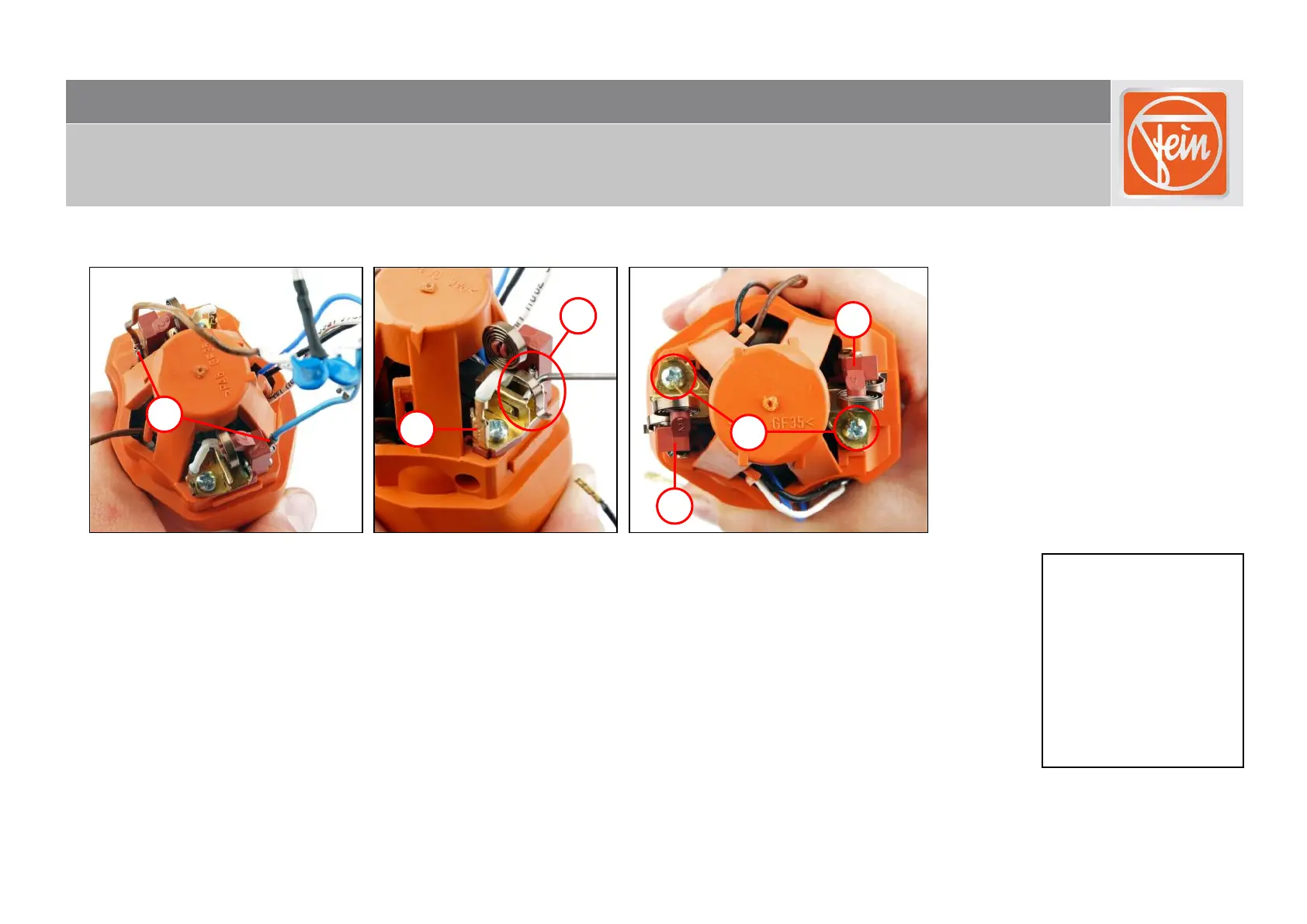

Removing the carbon brushes and carbon brush holders
1. Remove the two cables (1).
2. Lift the spring (2) to one side [on both sides].
3. Disconnect the connection cable (3) on both sides.
4. Remove the carbon brush on both sides.
5. Unscrew the screws (4).
6. Remove the carbon brush holders (5).
Tools:
- PH2 cross-tip
screwdriver
- Assembly aid
