Fein BOP 6 - Fitting

BOP 6 (A); BOP 10 (A); BOP 10-2 (A); BOP 13-2 (A)
7. Fitting
C-SC_CSSM
Version 1.0
2017-10-12
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 34 of 65

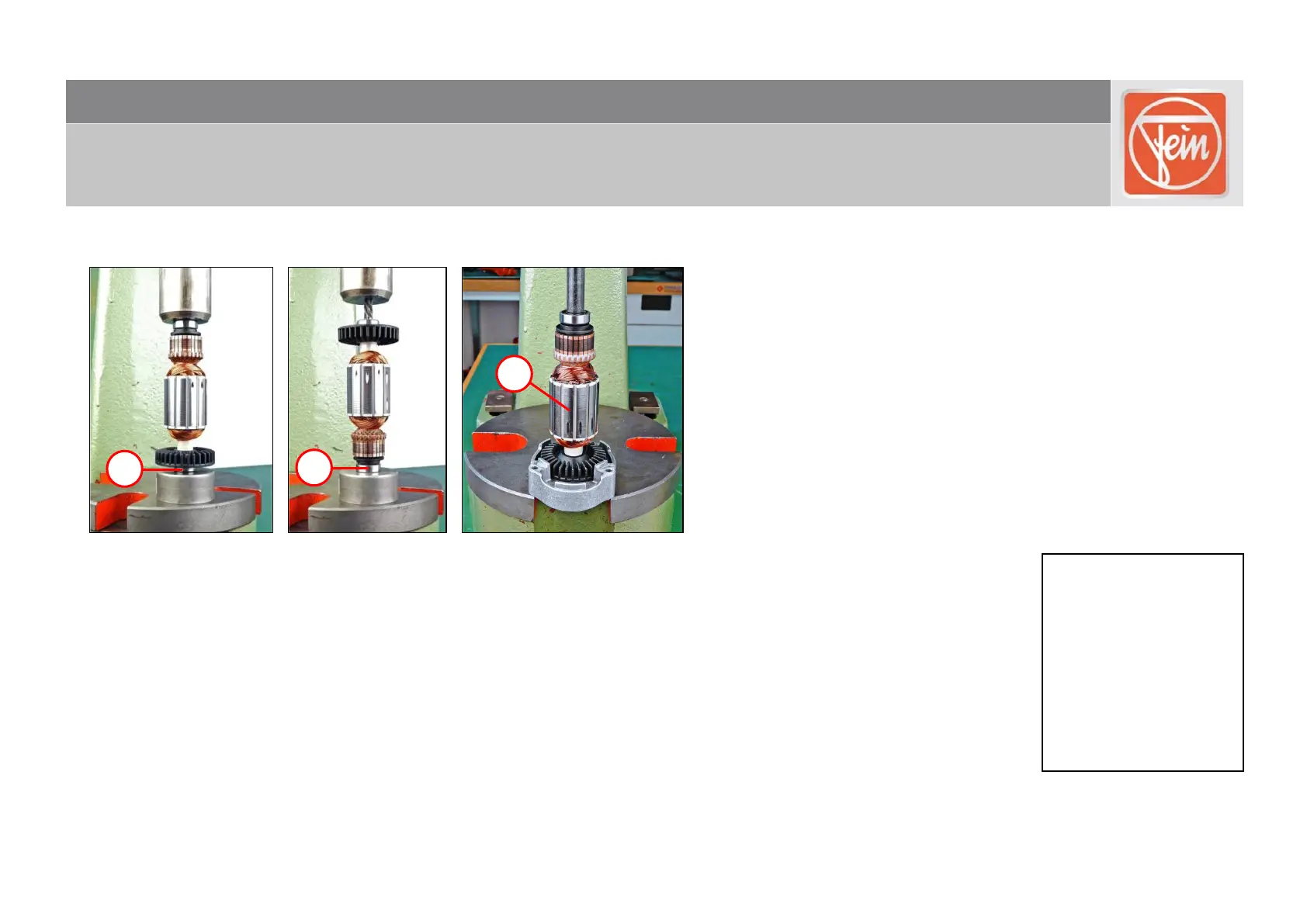

Fitting the armature
1. Press on the grooved ball bearing (1).
2. Press on the grooved ball bearing (2).
3. Press in the armature (3).
Tools:
- Arbor press
- Sleeve
7 mm inner diameter
~17 mm outer diameter
- Sleeve
8 mm inner diameter
~19 mm outer diameter
- Pressure piece, 7 mm
diameter
1
2
3
