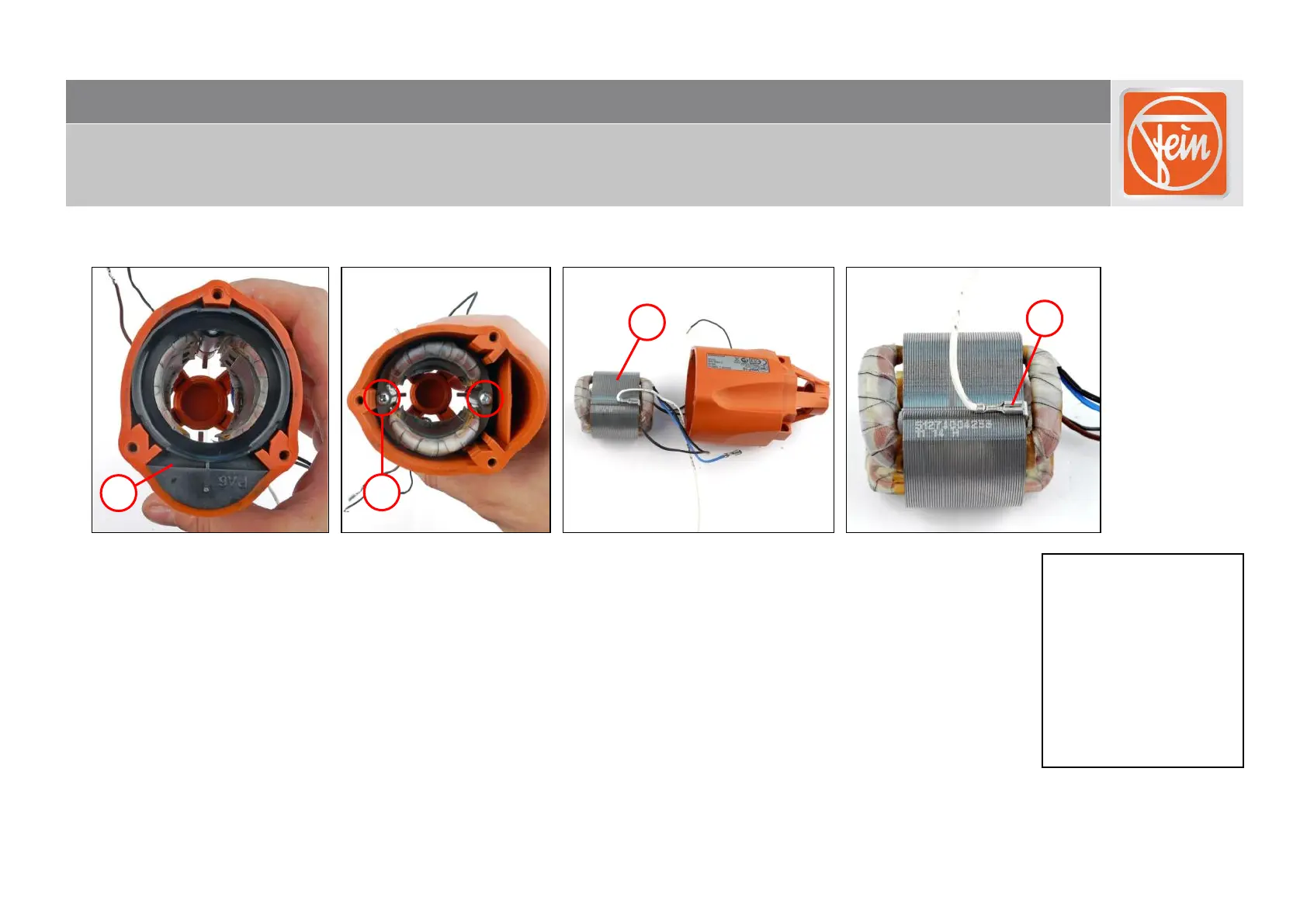

Removing the motor housing
1. Remove the air guide ring (1).
2. Unscrew the two screws (2).
3. Remove the stator (3) from the motor housing.
4. Pull out the connecting cable (4).
Tools:
- PH2 cross-tip
screwdriver
3
1
2
4
