Fein BOP 6 - Page 32

BOP 6 (A); BOP 10 (A); BOP 10-2 (A); BOP 13-2 (A)
6. Removal
C-SC_CSSM
Version 1.0
2017-10-12
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 32 of 65

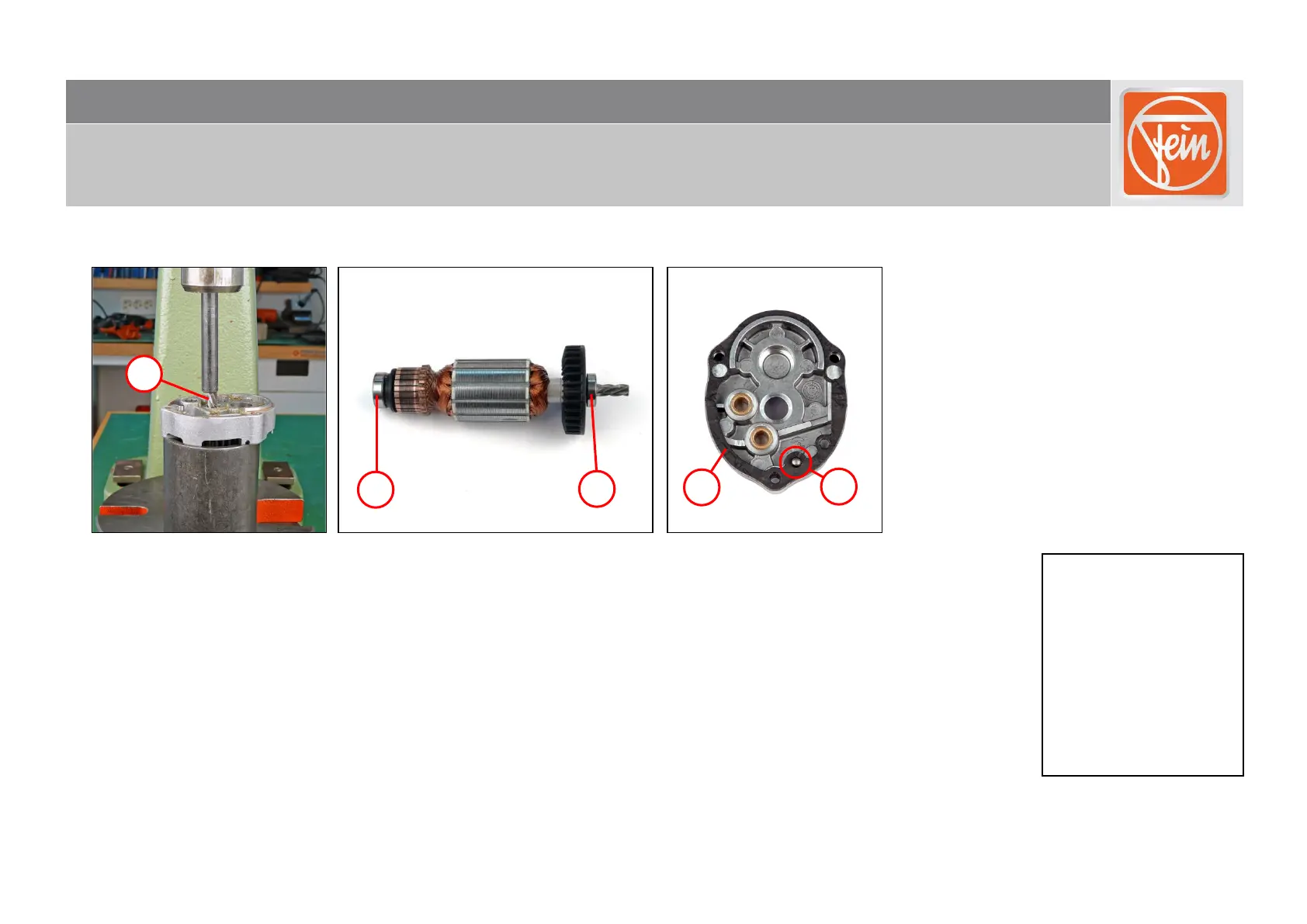

Removing the armature
1. Press out the armature (1).
2. Pull off the grooved ball bearing (2).
3. Pull off the grooved ball bearing (3).
4. Remove the seal (4).
5. Remove pin (5).
Tools:
- Drawing-off socket cap
- Chuck cone, 17 mm
diameter
- Chuck cone, 19 mm
diameter
- Punch, 7 mm diameter
- Sleeve
55 mm inner diameter
65 mm outer diameter
1
2
3
4
5
