BOP 6 (A); BOP 10 (A); BOP 10-2 (A); BOP 13-2 (A)
7. Fitting
C-SC_CSSM
Version 1.0
2017-10-12
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 35 of 65

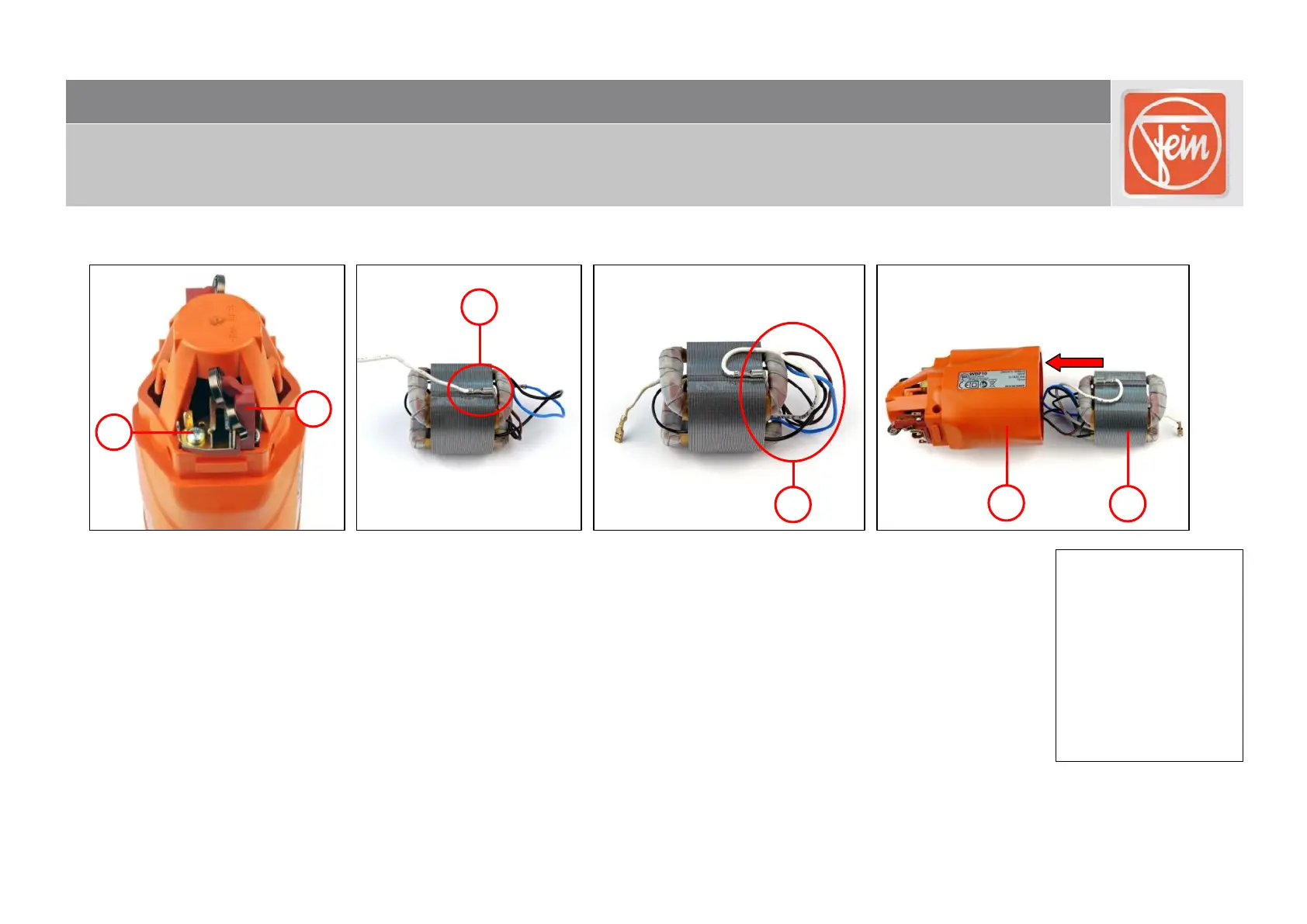

Fitting the motor housing
1. Put the carbon bush holder (1) in place and use the screw (2) to fasten it [0.6 Nm +0.1 Nm].
2. Connect the cable (3) to the stator.
3. Insert the cables (4) into the stator.
4. Slide the stator (5) into the correct position in the motor housing (6).
Tools:
- PH2 cross-head
screwdriver
3
1
2
4
6
5
