Fein BOP 6 - Page 36

BOP 6 (A); BOP 10 (A); BOP 10-2 (A); BOP 13-2 (A)
7. Fitting
C-SC_CSSM
Version 1.0
2017-10-12
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 36 of 65

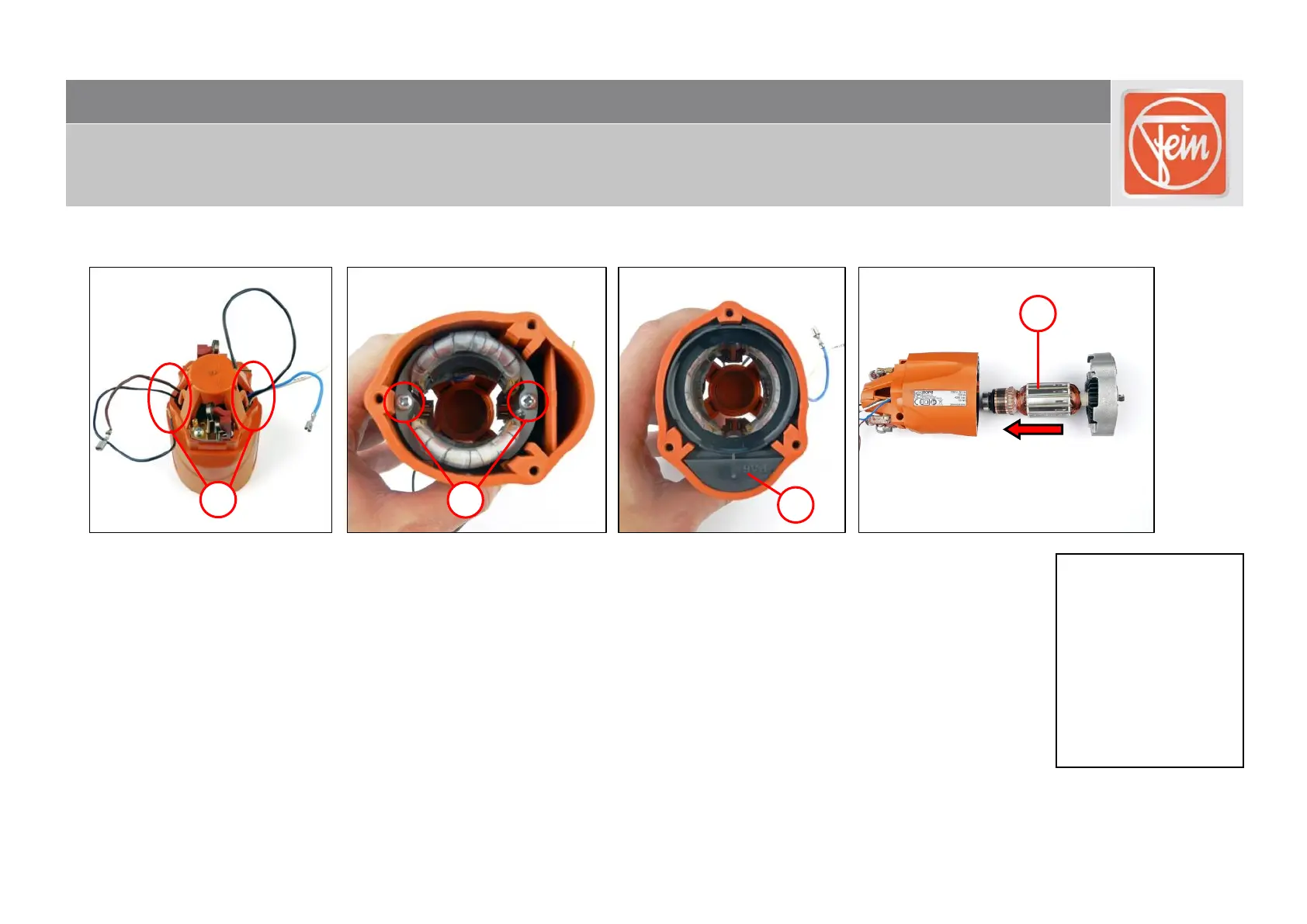

Fitting the motor housing
1. Remove the cables (1) from the stator.
2. Use the two screws (2) to fasten the stator [1 Nm +0.4 Nm].
3. Insert the air guide ring (3).
4. Push the armature (4) into the housing.
Tools:
- Assembly aid
- PH2 cross-head
screwdriver
3
2
1
4
