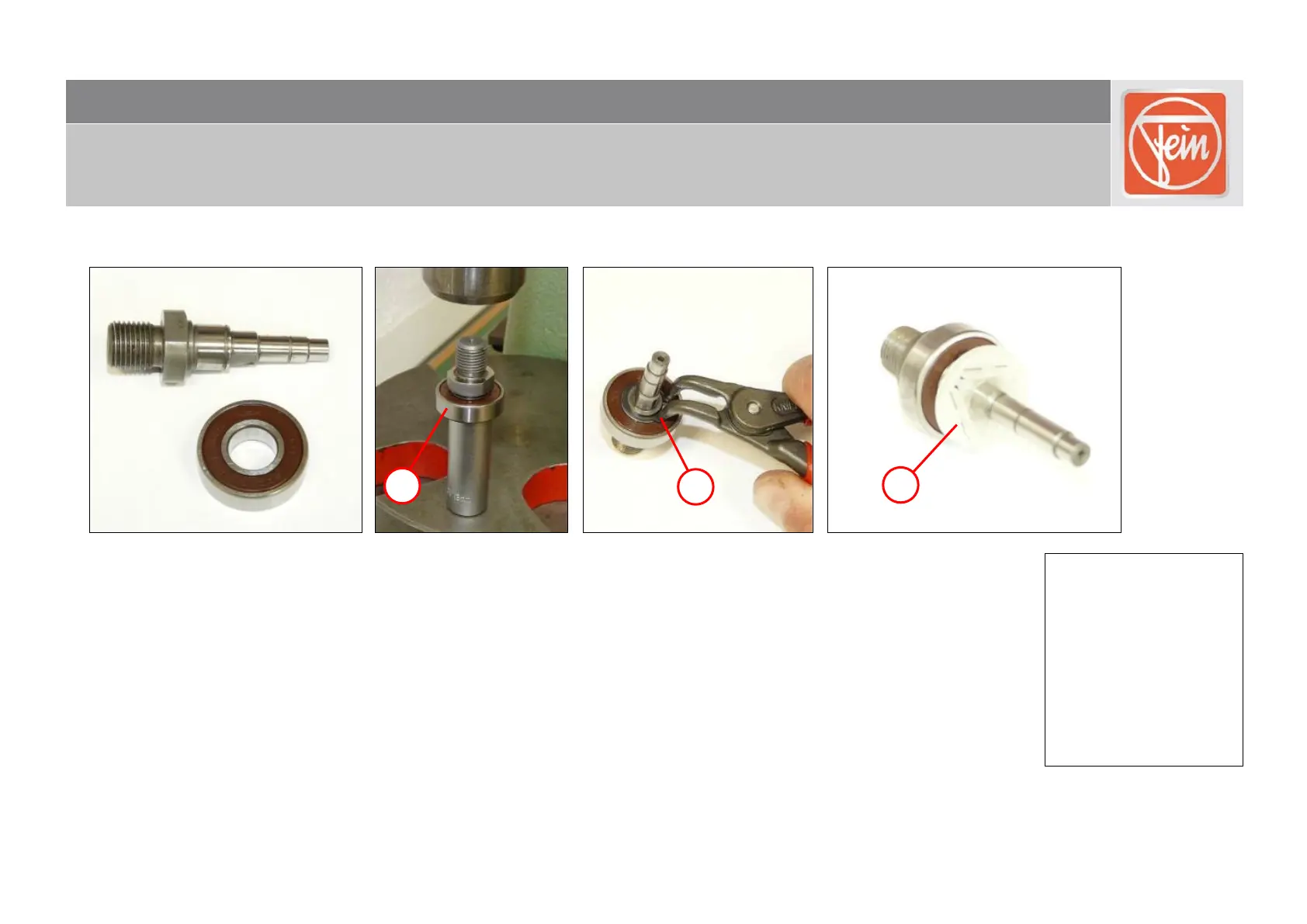

Fitting the gearbox housing [applies to: BOP 6 (A)]
1. Press on the grooved ball bearing (1).
2. Fit the circlip (2).
 Replace the circlip during each fitting.
3. Place the disc (3) in the correct position.
 Its flat side should be facing the grooved ball bearing.
Tools:
- Arbor press
- Circlip pliers
2
1
3
