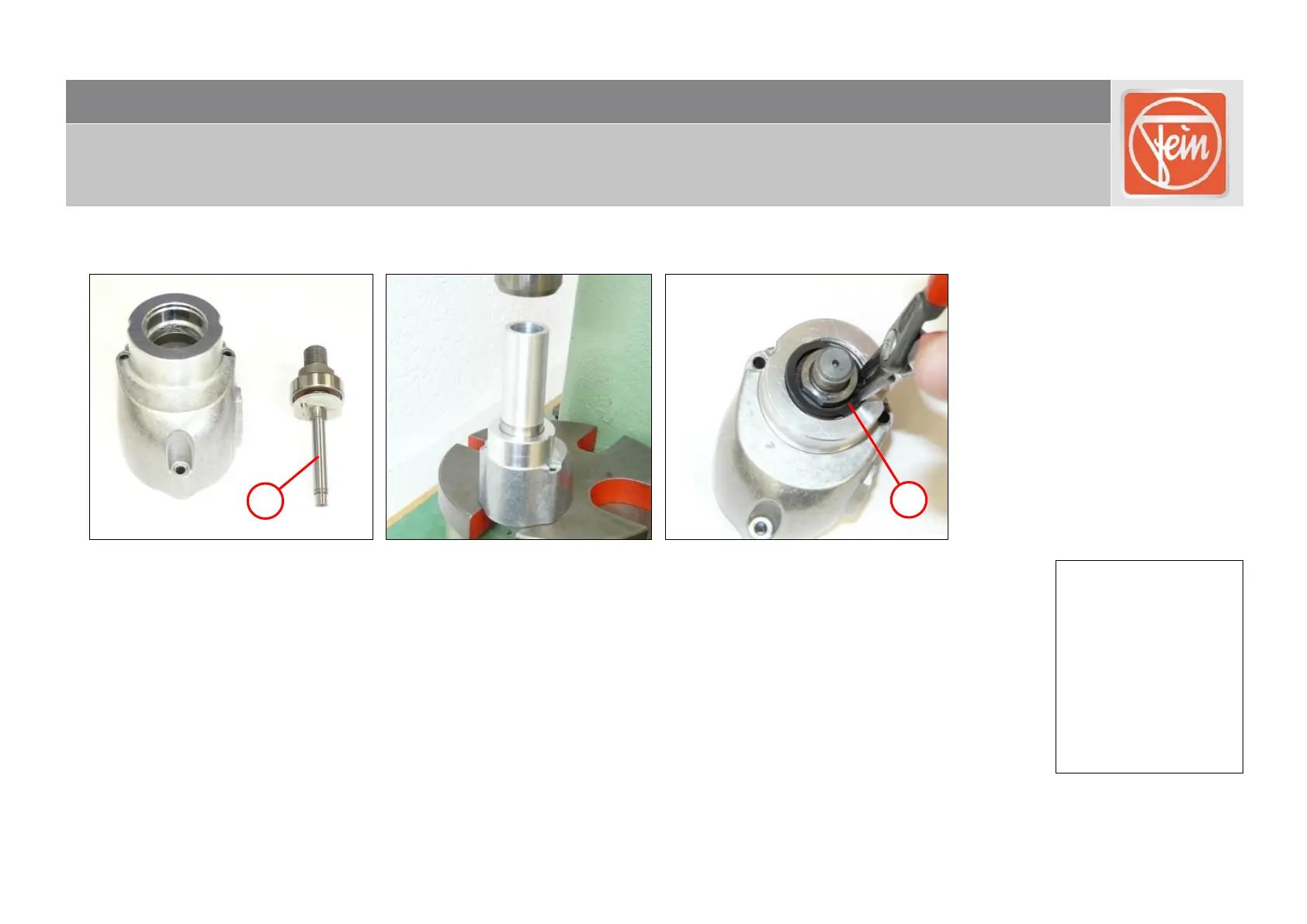

Fitting the gearbox housing [applies to: BOP 13-2 (A)]
1. Press in the shaft (1).
2. Fit the circlip (2).
 Replace the circlip during each fitting.
Tools:
- Circlip pliers
- Arbor press
- Sleeve
20 mm inner diameter
27 mm outer diameter
1
2
