Fein BOP 6 - Page 63

BOP 6 (A); BOP 10 (A); BOP 10-2 (A); BOP 13-2 (A)
7. Fitting
C-SC_CSSM
Version 1.0
2017-10-12
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 63 of 65

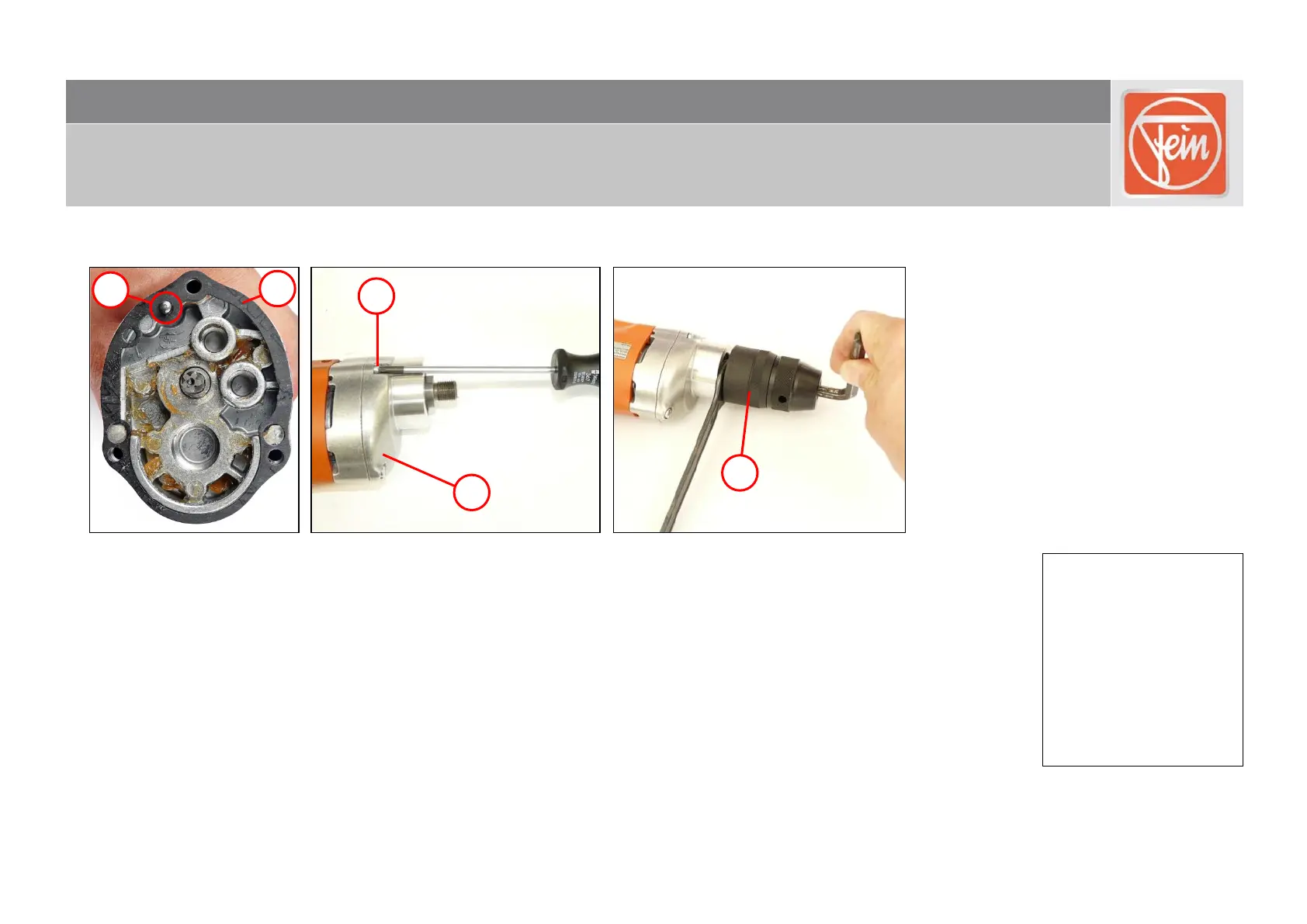

Fitting the gearbox housing
1. Fit the pin (1).
2. Position the seal (2).
3. Fit the gearbox housing (3) on the motor housing.
4. Screw in the three screws (4).
5. Fit the quick-action chuck (5) [35 Nm].
Tools:
- Torx T20
- Socket head wrench
- Open-ended spanner,
17 mm (width = 4 mm)
