FEIN – REPAIR - TOOLS
All rights reserved by FEIN, especially in case of industrial rights registration.
Any power of disposition such as copying and right of transfer is situated with FEIN.
Sahre / MVK 05 / 2011

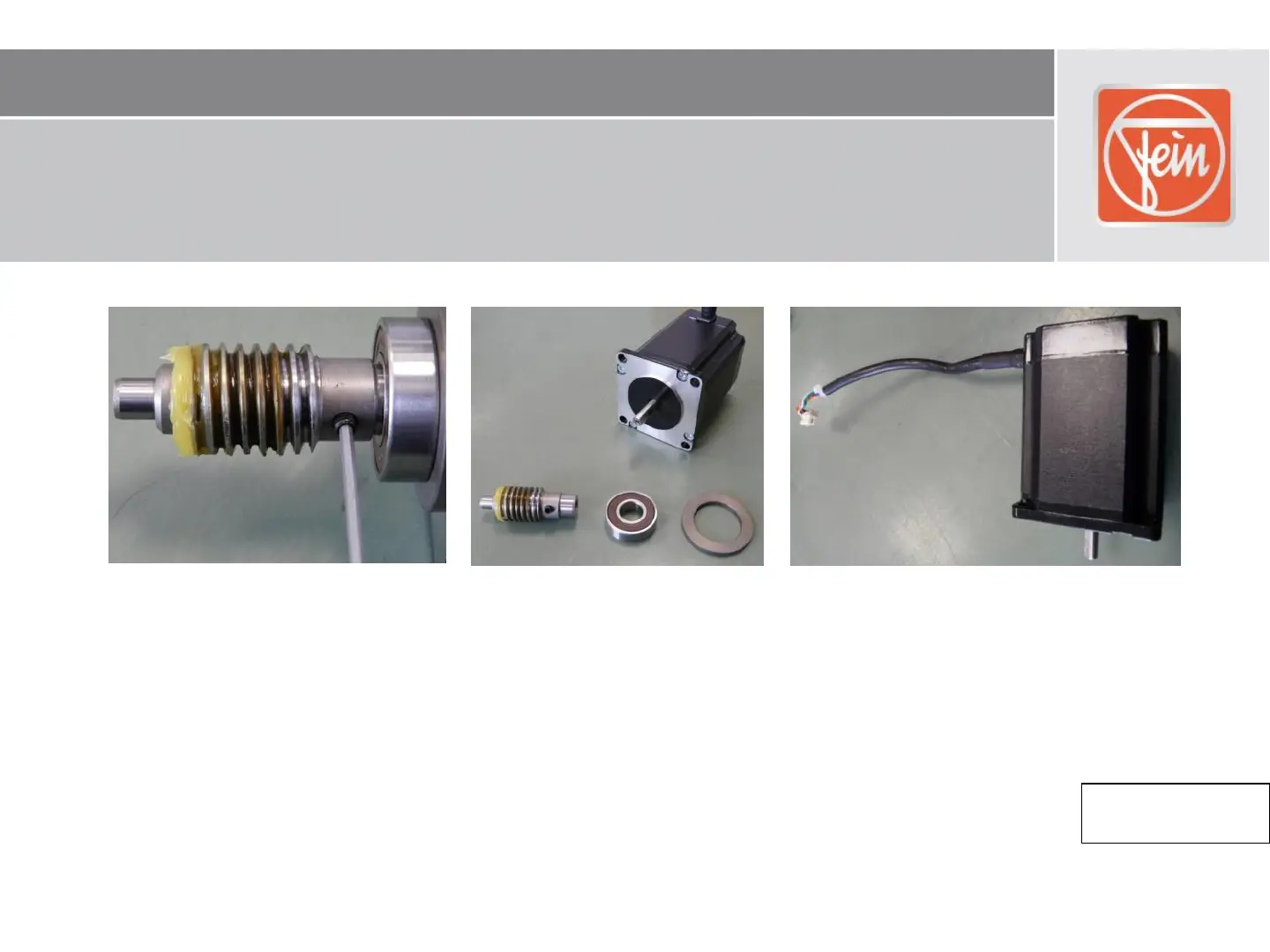

4.2. Disassembly - Feed unit
Loosen set screw
Remove worm with ball bearing and spacer from motor shaft
Feed motor is only available as a spare part in complete form (see
photo on right)
Tools:
- allen key 2 mm
