4.4. Disassembly - Gearbox

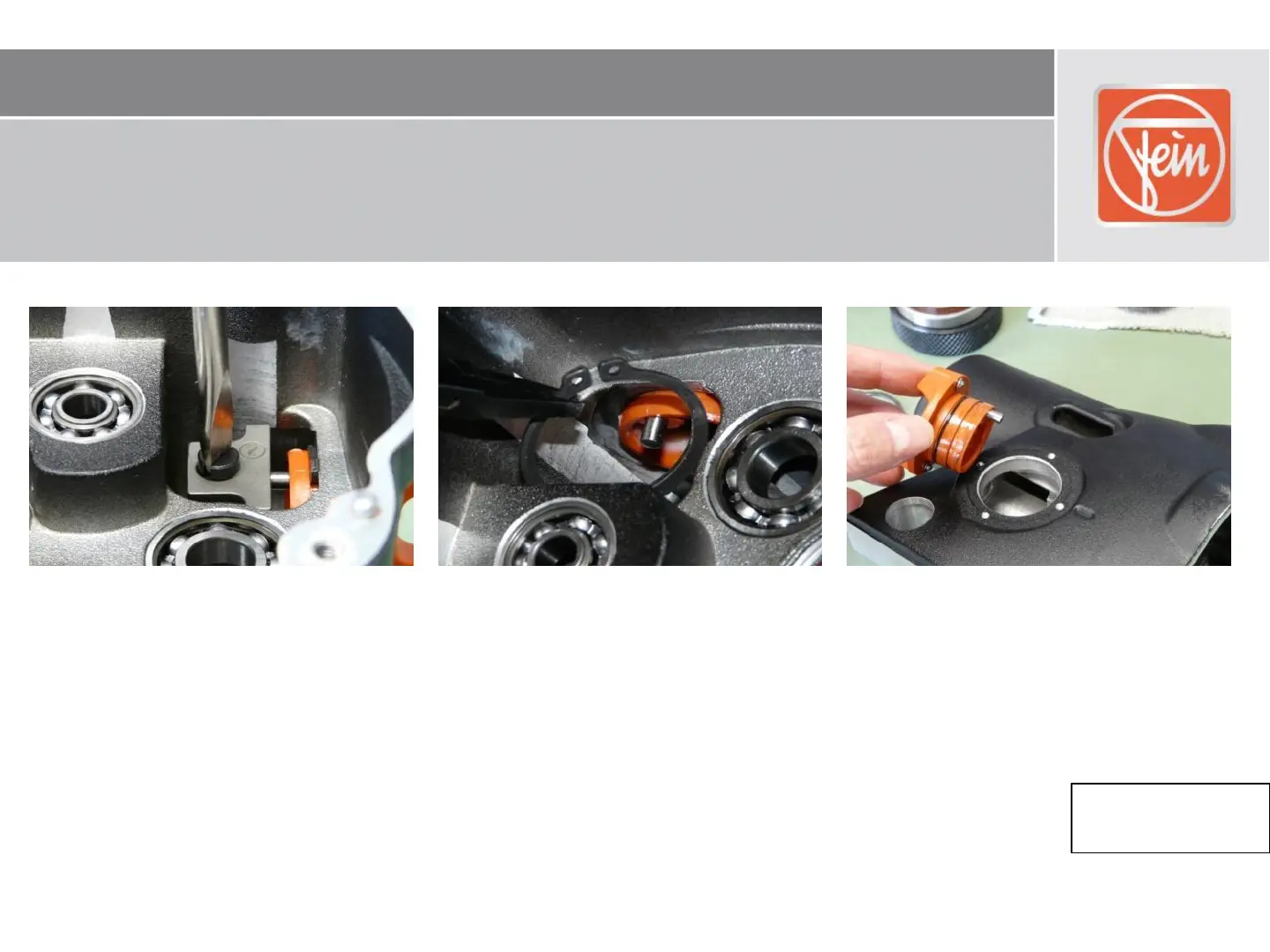

Loosen screw for securing shifting claw and remove shifting claw
– best done in first gear switch position
Remove circlip for securing switching handle and remove
switching handle. Replace if necessary
Tools:
- outer circlip plier
- slotted screw driver
