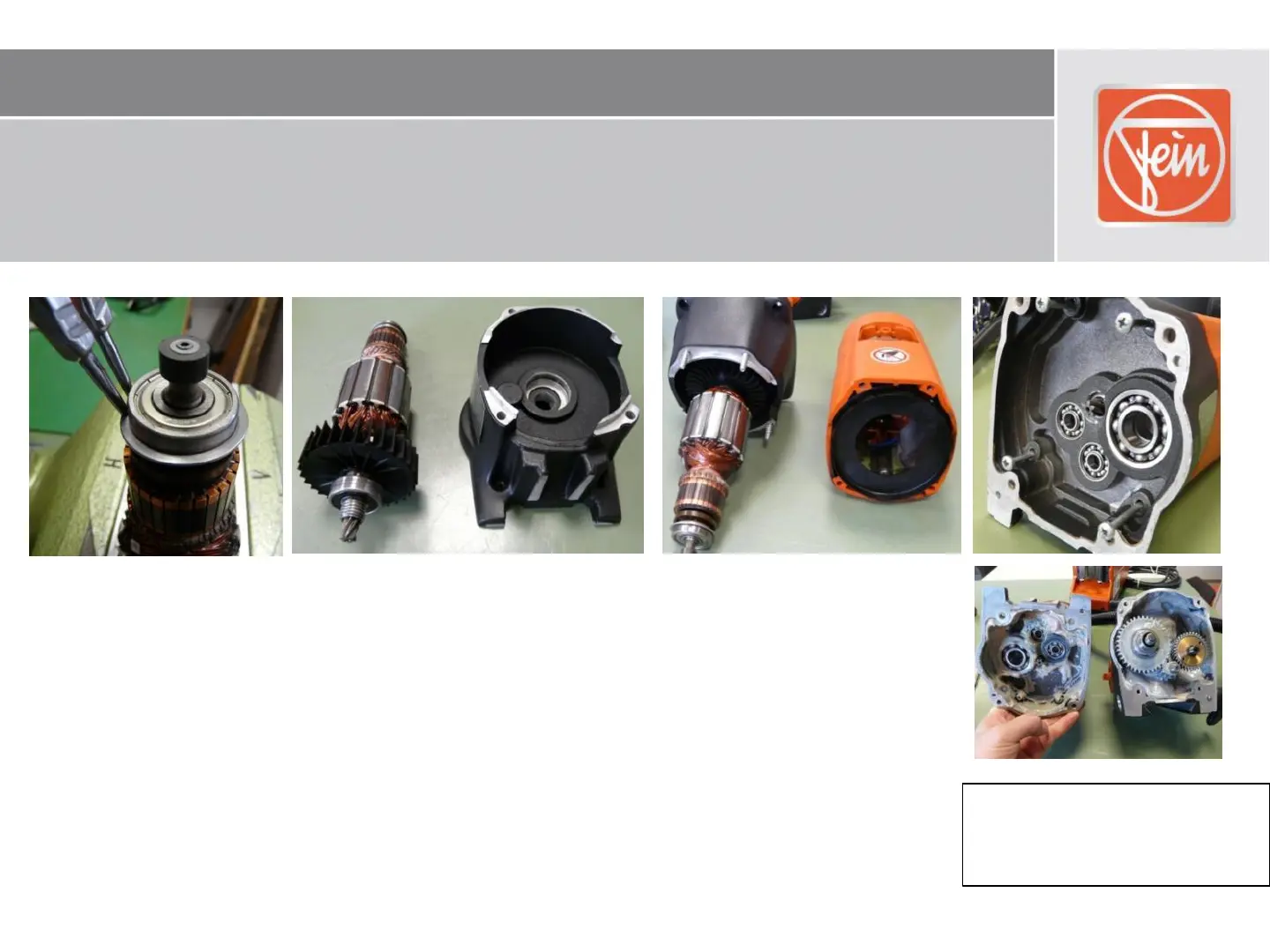

5.2. Assembly - Drill motor
Press-fit ball bearing and magnet ring
Attach spacer to bearing
Attach armature to intermediate bearing and press in
Insert assembled intermediate bearing in motor housing and
secure with 4 screws
Fill gearbox with grease (350 g – 3 21 320 07 18 9)
Stick the Gearbox with Loctite 5188
Close the Gearbox with the 4 screws
Tool:
- Grease (3 21 320 07 18 9)
- PH 2 cross-tip screwdriver
- External circlip pliers
