FEIYUTECH G6 Max - Gimbal Balance; Balance Adjustment of the Tilt Axis

05
www.feiyu-tech.cn
3. Gimbal Balance
Position Lock
4
If the gimbal is not well balanced, it will decrease the performance of stabilization or even cannot balance
the camera.
TIPS
( Before powering on )
Each of the three rotating axis has one position lock, take the pan axis lock for example.
*Before balancing the gimbal, please lock the gimbal at the balanced lock status, and unlock
the position lock in stages for convenient balancing.
3 Axis position lock
Lock status Unlock status
Lock
Unlock
解锁状态
Lock
Unlock
Power on the gimbal after balanced it.

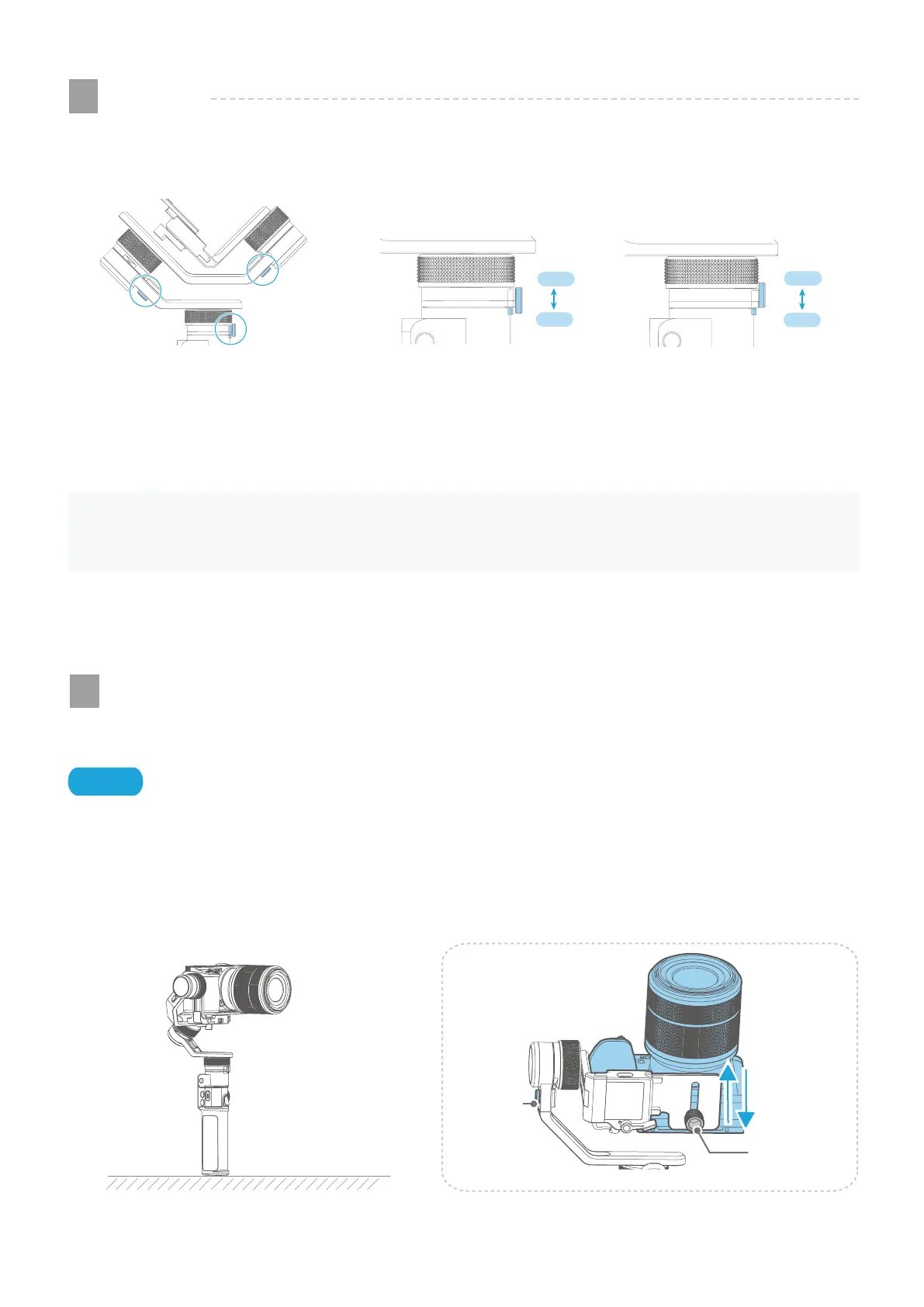

Balance Adjustment of the Tilt Axis
1
Steps
(1) Let the gimbal stand on a horizontal plane, unlock the tilt axis position lock.
(2) Loosen the Thumb screw on the camera bottom, slide the sliding arm to balance the camera
until the camera is parallel with the horizontal plane, tighten the Thumb Screw.
（Loosen the Thumb screw a little to let the camera can be moved）
Camera
move
Unlock
Horizontal Plane
Thumb
Screw
Loosen
