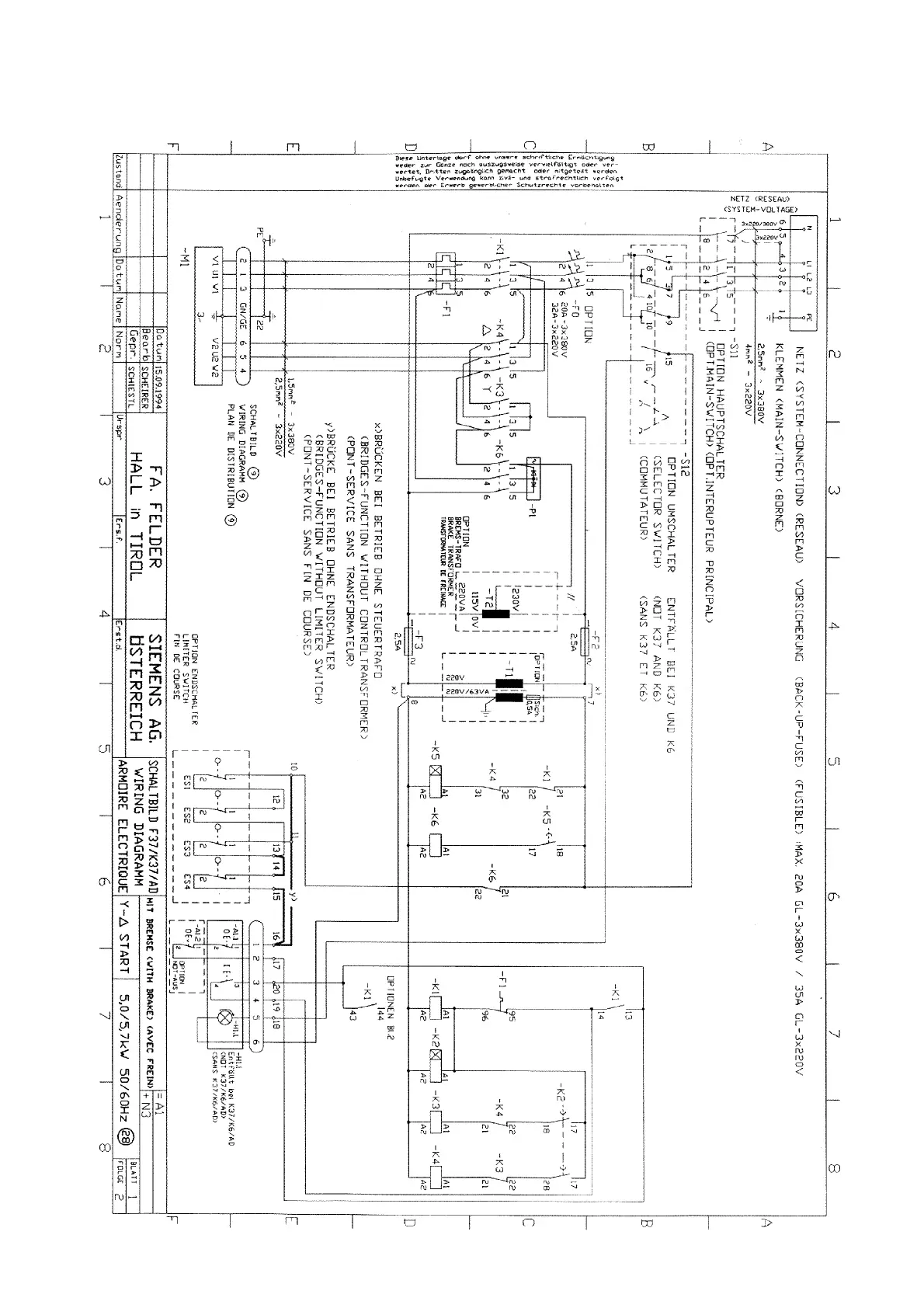

3x380 V oder 3x220V, 1 Motor
YD-Anlauf mit Bremse, 5.2kW
3x380 V or 3x220V, 1 motor,
YD start with brake, 5.2kW
3x380 V ou 3x220V, 1 Moteurs
démarrage étoile-triange
avec frein, 5.2kW
