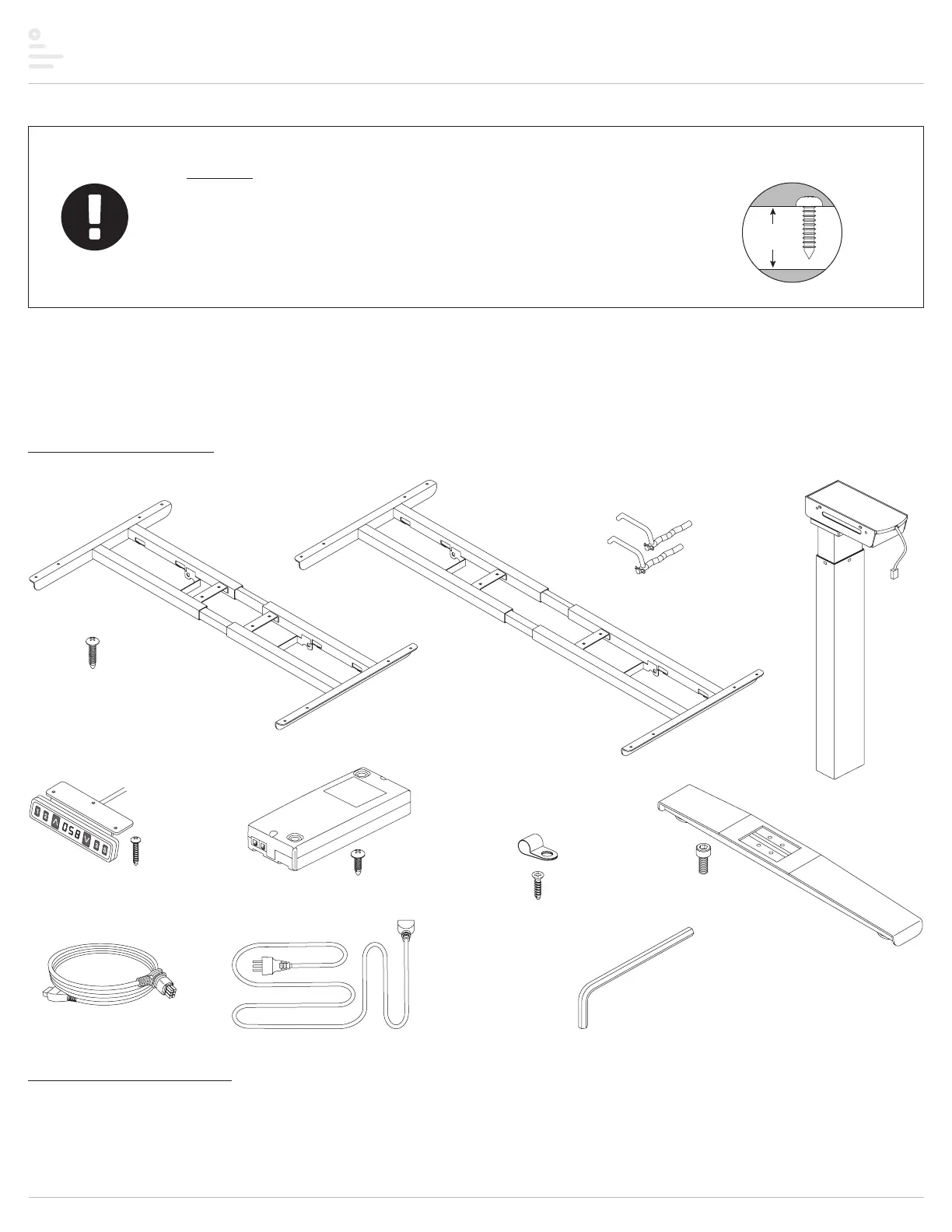

TriumphLX Components and tools
Please review these instructions before beginning the installation. Use the illustrations below to check that all components needed for your installation
were provided with your order. Do not discard the packaging until the product works to your satisfaction.
Components and tools
Additional tools required
• power drill with assorted drill bits
• Phillips screwdriver
• Phillips #1 and #2 bits
caution
• When drilling holes for the wood screws, guard against drilling through the
top of the worksurface.
• Always check that screws used to attach components to the worksurface
are not too long for the thickness of the surface.
legs with
motor (2)
frame, C36 or C48 (1)
C48
C36
frame screws
digital keypad (1)
M3x20 #1 Phillips
round head (3)
motor cable (2)
5mm
Allen key (1)
M6x15
socket cap (8)
cord clips (10)
control unit (1)
M5x15 #2 Phillips
round head (2)
power cable (1)
feet (2)
M4.8x22 #2 Phillips
round head (12)
M3.5x16
#2 Phillips
flat head (10)
cam locks (2)
with cotter pin
