INTERNAL TRIM POTENTIOMETERS (ACCESSIBLE BY
REMOVING COVER)
Remove cover using a flat-head screwdriver.
MANUAL RELEASE trim potentiometer determines release time when
Release Switch is at UP position. Turn clockwise for longer release time;
counterclockwise for shorter release time (factory position is full clockwise).
ATTACK trim potentiometer determines compressor attack time. Turn
clockwise for longer attack time; counterclockwise for shorter attack time
(factory position is full counterclockwise).

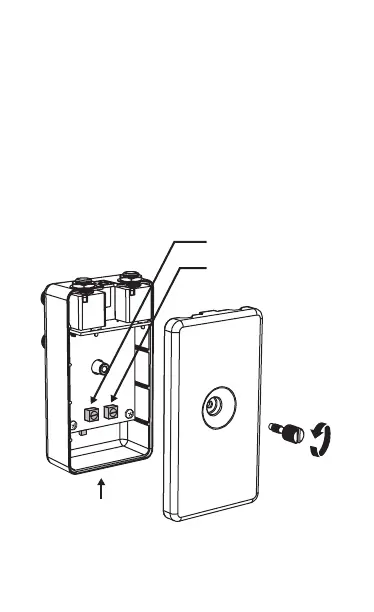

ATTACK TRIM POT
MANUAL RELEASE
TRIM POT
9V BATTERY
(NOT INCLUDED)
