10
A. AUX SEND - Plug your
external effects signal processor in
here. Although the Passport is
already equipped with on-board
digital reverb, an external effects
signal processor can be
incorporated into the Passport’s signal flow. This
1/4 inch output jack is designed to feed the
Passport’s effects bus signal to an external signal
processing device, such as a digital delay or a
chorus unit.
B. AUX RETURN - Plug your external effects signal
processor’s output signal in here. This 1/4 inch input
stereo jack is designed to accept signals from an
external processing device, such as a digital delay or
a chorus unit. This input can also be used as a
stereo input with the volume controlled at the master
volume knobs.
C. FOOT SWITCH - The
Footswitch connector allows the
internal reverb return to be muted,
or shut off, through the use of a
simple foot operated switch. The
footswitch should be wired to
connect the tip to sleeve for Off and requires a
standard speaker or instrument cable.
D. SPEAKER OUTPUTS
- These are speaker level
output jacks designed to
feed each of your
Passport speaker
enclosures. Use the
enclosed cables to
connect the Passport’s
speakers to the power tower.
E.POWER SWITCH - Turns the AC
power ON and OFF. When the switch is
in the OFF position, your Passport is
completely shut down.
F. LINE CORD - The
Passport is equipped
with a grounding type
IEC supply cord to
reduce the possibility of
shock hazard. Be sure
to connect it to a grounded AC receptacle. DO
NOT ALTER THE AC PLUG.

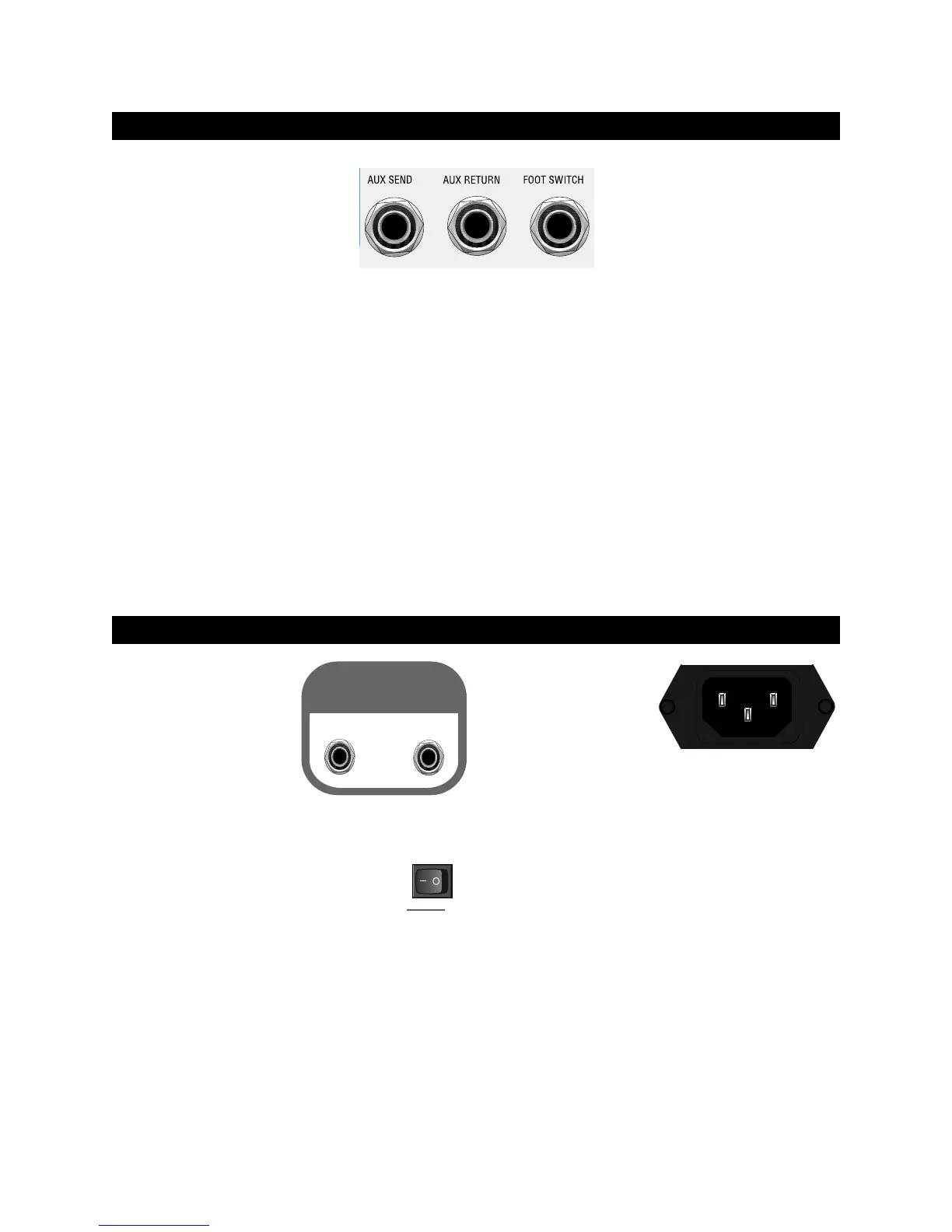

AUX / FOOTSWITCH JACKS
REAR PANEL
SPEAKER
OUTPUT
LEFT
RIGHT
OFF / ON
A
B
C
D
F
