Fender PASSPORT P150 User Manual

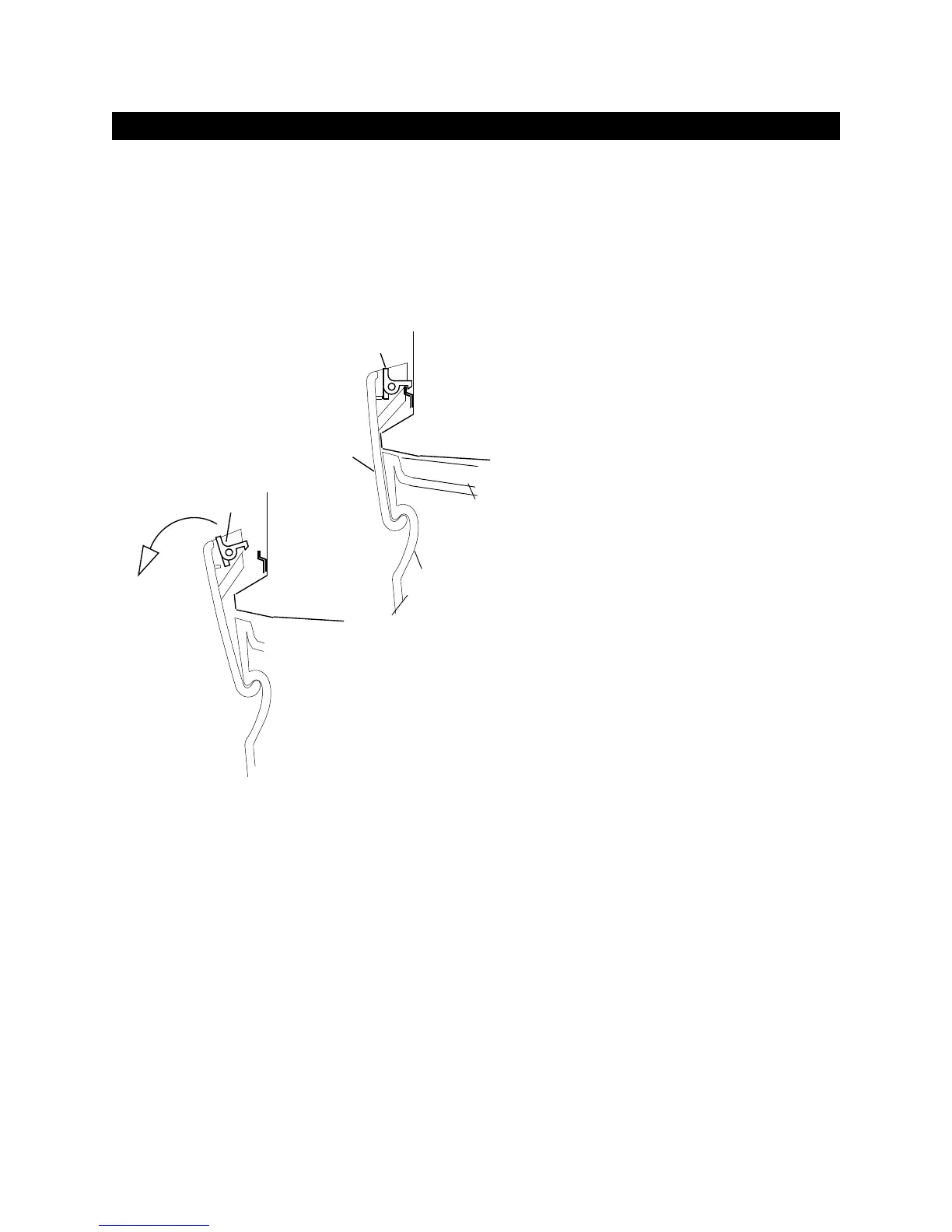

ROTATE SAFETY CATCH TO
DISENGAGE SPEAKER LATCH
SPEAKER LATCH
SAFETY CATCH
CATCH PLATE
SPEAKER
5
To open and close your Passport system, simply
follow these guidelines:
1. Place your finger tip under the safety latch and
gently lift. When the safety latch has disengaged, lift
both the latches clear on each speaker before
attempting to remove the speaker.
2. To replace, position each speaker on the tower
foot and bring the speaker in to close the
engagement with the tower and latches. Position
the latch hooks over the speaker notch and close
the latches. The 4 latches will automatically engage.
Note: These parts are precision engineered and no
force is needed to secure them. Careful alignment
of parts will ensure easy operation.
TRANSPORTATION LATCHES

Fender PASSPORT P150 Specifications

Frequency and Response

frequency range	20 Hz to 40 kHz +/- 1 dB
response	30 Hz to 30 kHz +/- 1 dB
distortion	<0.1%, 20 Hz to 20kHz 1 dB below rated output

Power Output and Signal

power output	75W/ch continuous average power, 8Ω
signal to noise ratio	>80 dB @ 1 w, “A” WTD
fuse type	T4A, 250V

Input Specifications

input impedance mic	2 kΩ
input impedance line	66 kΩ
input impedance phono	78 kΩ
