OUTPUT
MIC/LINE INSTRUMENT
SETUP DIAGRAMS (CONTINUED)

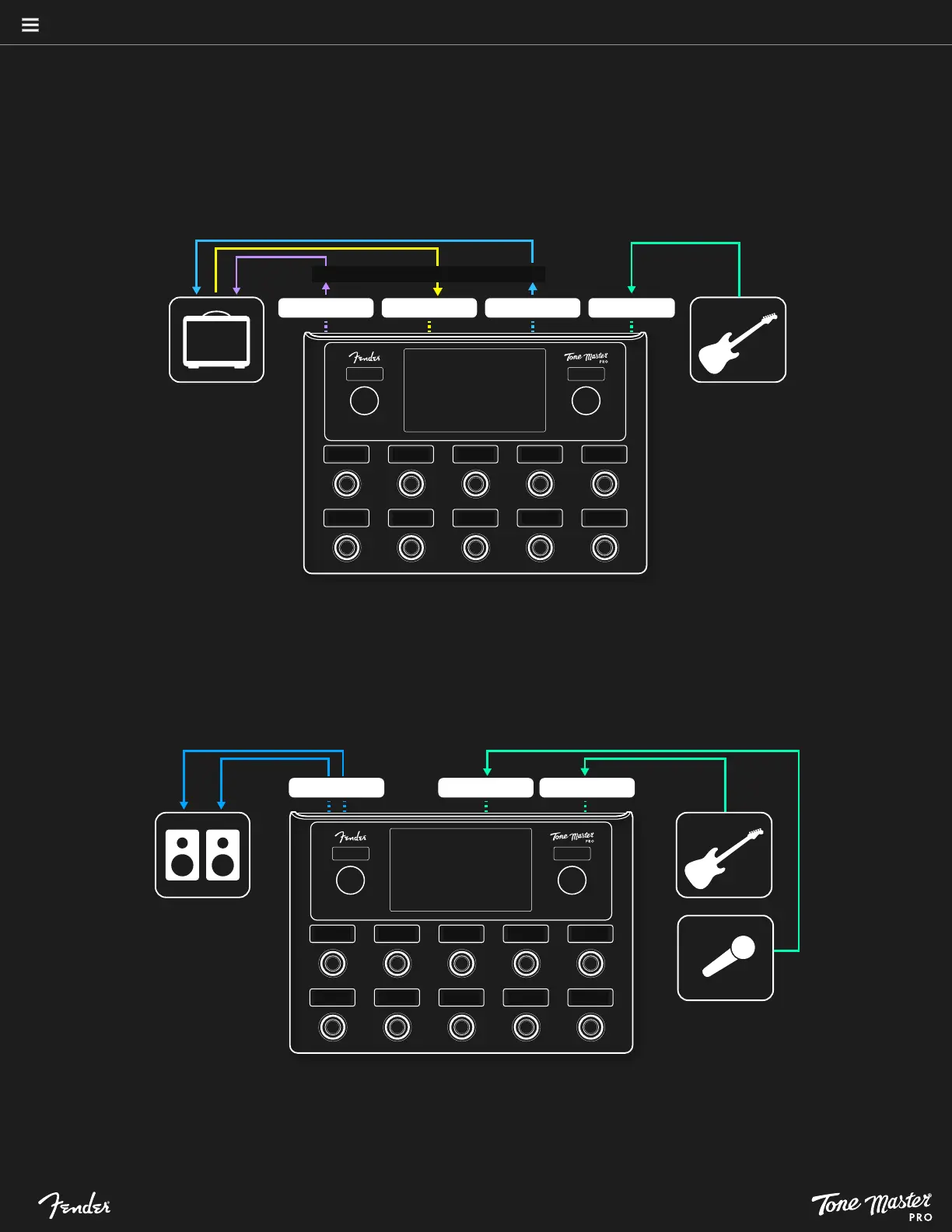

SETUP DIAGRAMS
39
STUDIO MONITORING/PA SYSTEM
• Set Tone Master PRO rear-panel outputs to line level in Global Settings for optimal signal-to-noise ratio.
EXTERNAL AMPLIFIER USING FOUR-CABLE METHOD (4CM)
• 4CM allows placement of effects before and after the preamp section of an external amplifier with an effects loop. For best results use effects-only
presets with no amp or cabinet blocks; set Tone Master PRO rear-panel outputs and effects loop to instrument level in Global Settings, and note that
the connected Tone Master PRO effects loop must be added to the signal path.
FX LOOP: SENDOUTPUT FX LOOP: RETURN
AMP FX LOOP: SENDAMP FX LOOP: RETURN
INSTRUMENT
AMP INPUT
