Several detailed setup diagrams for using Tone Master PRO are shown in this section.

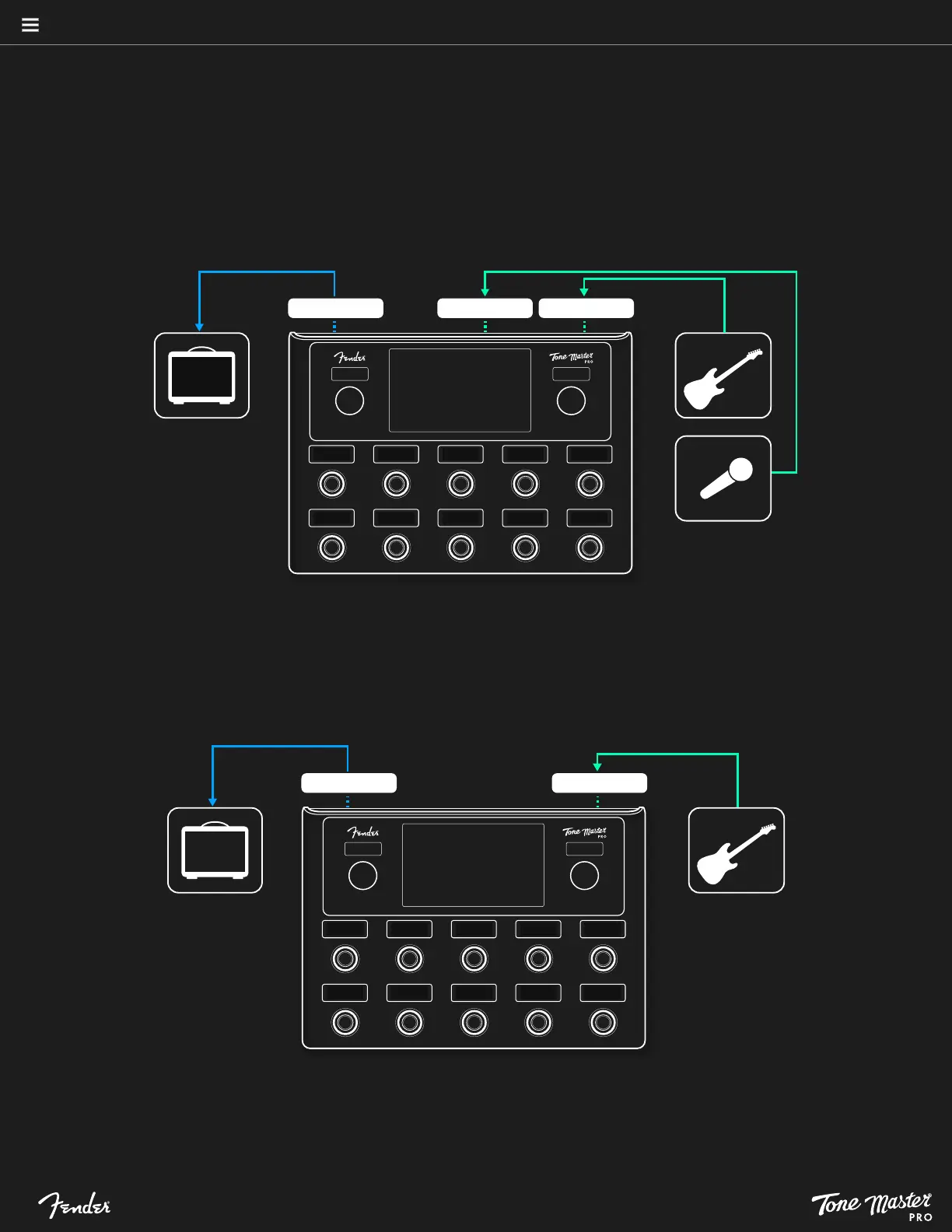

INSTRUMENT OR MIC/LINE TO FR CABINET
• Set Tone Master PRO rear-panel outputs to line level in Global Settings for optimal signal-to-noise ratio when using FR cabinets such as the
Fender Tone Master FR-10 and FR-12 powered speakers.
EFFECTS PEDALBOARD WITH EXTERNAL AMPLIFIER
• For best results use effects-only presets with no amp or cabinet blocks. Set Tone Master PRO rear-panel outputs to instrument level in Global Settings.
OUTPUT INSTRUMENT
OUTPUT
MIC/LINE INSTRUMENT
To Next Page
