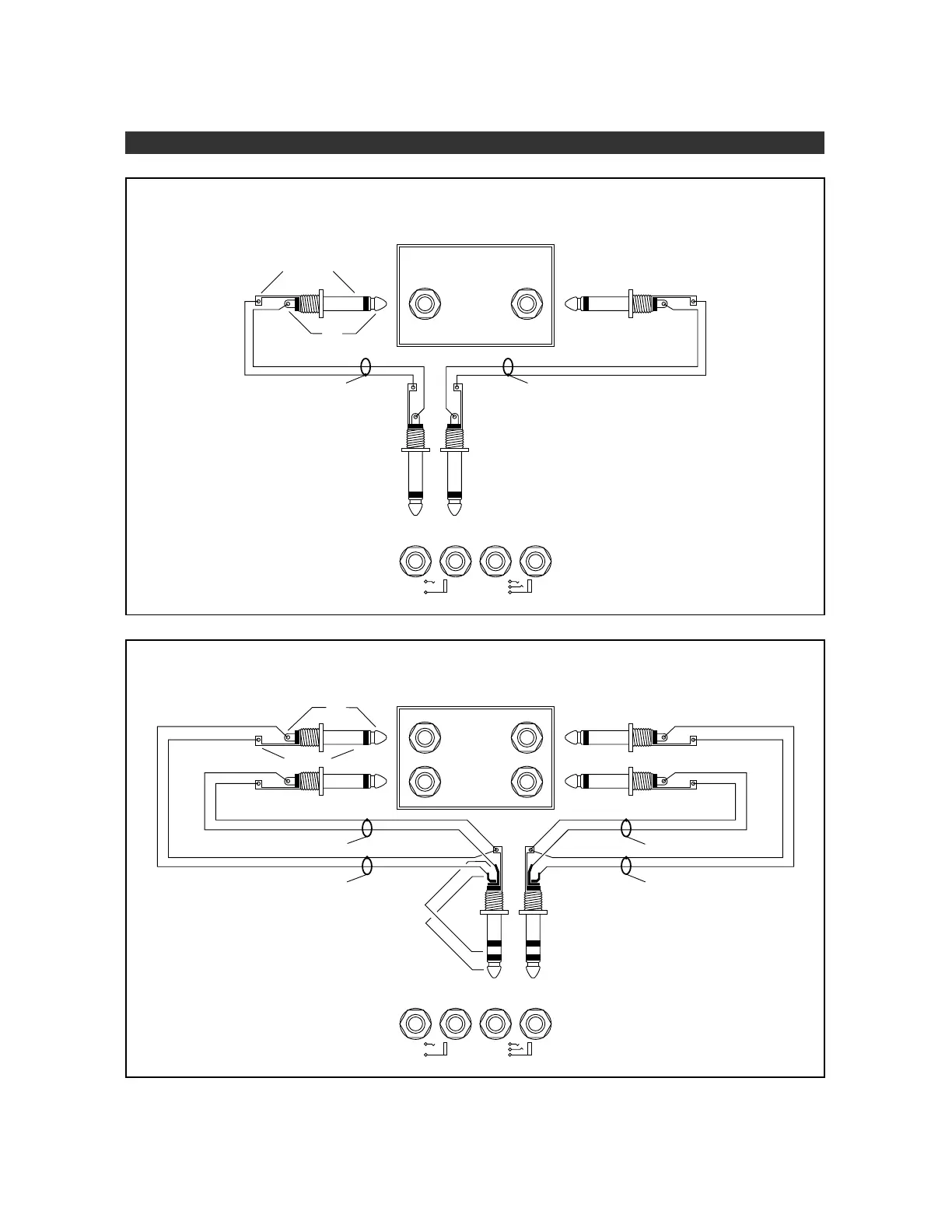

ULTIMATE CHORUS EFFECTS LOOP CONNECTION DIAGRAMS
1. For mono effects devices
EXTERNAL
EFFECTS
OUTPUTINPUT
MONO FX STEREO FX
SEND RETURN SEND RETURN
L
R
SHIELDED CABLE
SLEEVE
TIP
SHIELDED CABLE
2. For stereo in/stereo out effects devices
EXTERNAL
EFFECTS
OUTPUTSINPUTS
MONO FX STEREO FX
SEND RETURN SEND RETURN
L
R
SHIELDED CABLE
SLEEVE
TIP
SHIELDED CABLE
LEFT LEFT
RIGHT RIGHT
TIP
RING
SHIELDED CABLE
SHIELDED CABLE
