1.9.4 Handrails
To prevent falls when you do work on the machine, you must move some handrails before you can use
them.
The handrails are:
• Around the cab.
• On the ladder to the cab.
• On top of the engine cover.
GUID-C96EF70D-8286-4CD1-ACB3-4E9C07649BD3-high.jpg [High]

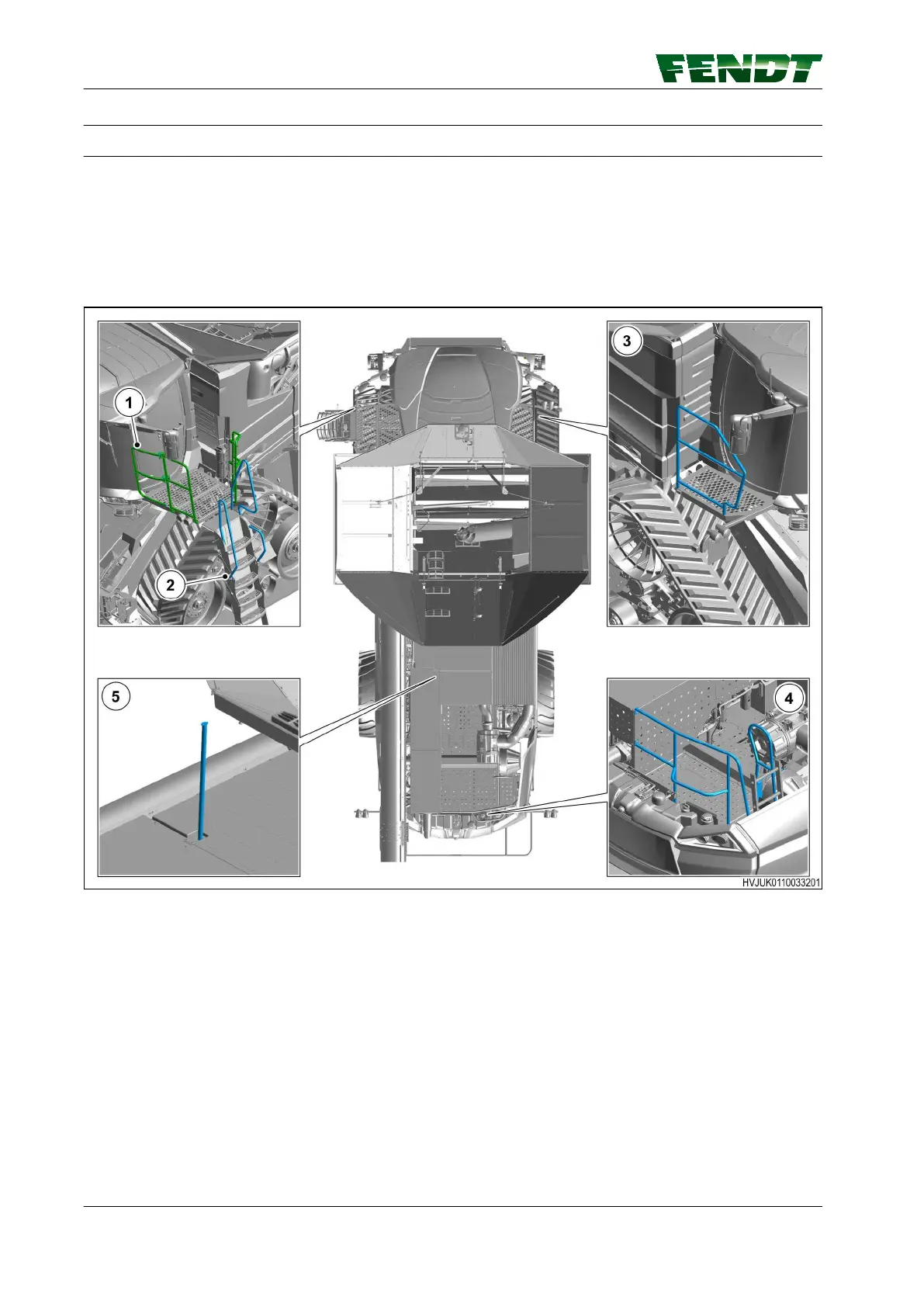

Fig. 29
The left side of the cab (1) has a handrail attached to the platform.
There are handrails on each side of the cab ladder (2).
The right side of the cab (3) has a handrail attached to the platform.
On the rear platform of the machine (4) is a handrail.
The engine handrail (5) is on the left side of the engine cover. Always lift the handrail when you do work on
top of the engine:
1. Pull the handrail to its full height.
2. Turn the handrail counterclockwise.
3. Lower the handrail a small distance to lock into position.
To put the engine handrail in the storage position:
1. Lift the handrail a small distance.
