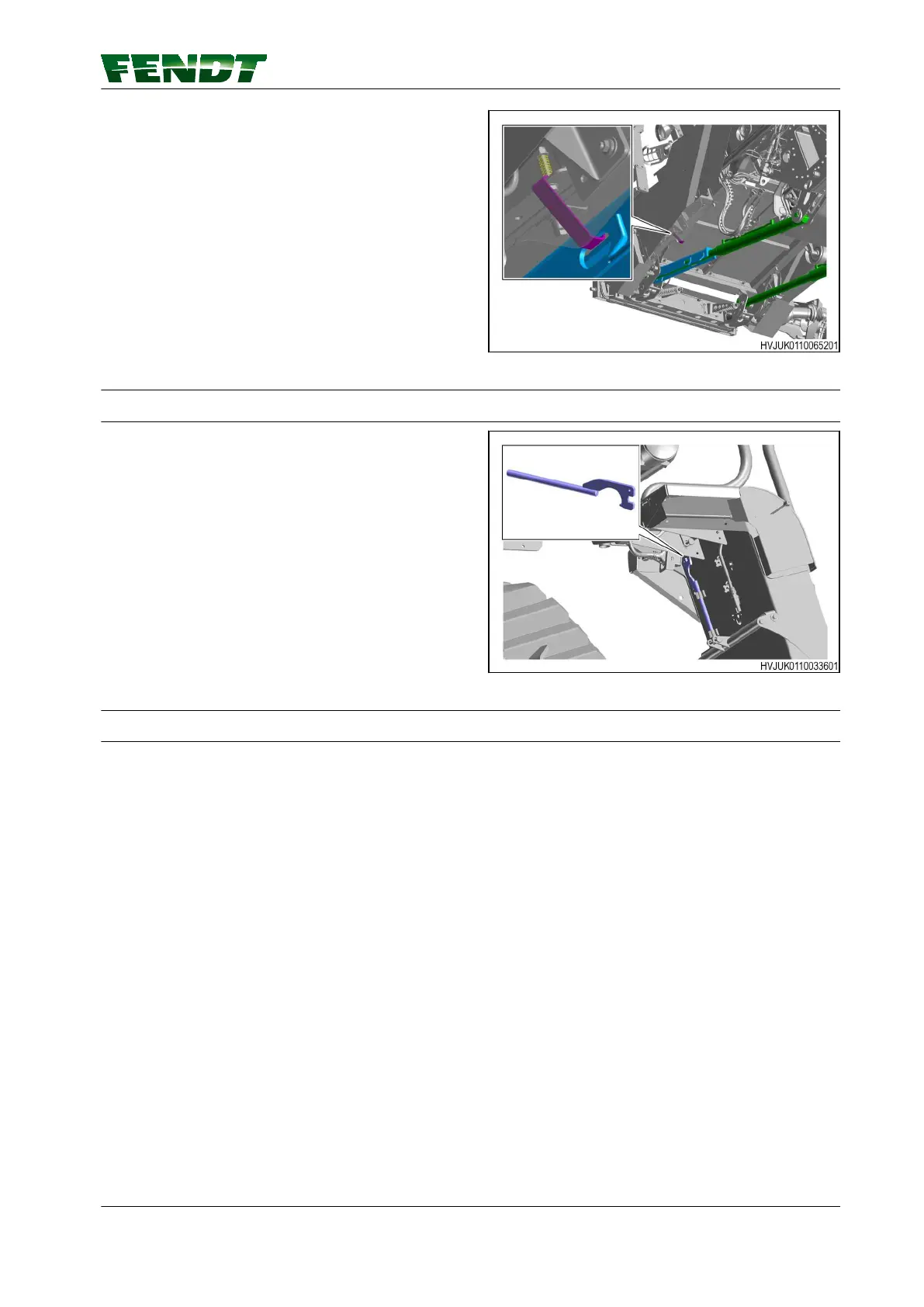

4. Lift the safety stop o the header lift cylinder.
Engage the spring loaded latch that holds the
safety stop in the stowed position.
GUID-C85DD551-E831-4BCC-B7EB-5E86CEE2DB76-high.jpg [High]
Fig. 35
1.9.8 Shield tool
The shields on the machine have locking devices
to prevent unauthorised access to dangerous parts
of the machine.
Use the shield tool to open the locking devices on
the shields.
The shield tool stows on the rear of the cab ladder.
You can also use the shield tool to align the PTO
shaft for the header.
GUID-E716540B-E1CC-4223-966F-4665C23B11AB-high.jpg [High]
Fig. 36
1.9.9 Warnings for the ParaLevel system
If the machine does work on a slope, the recommendation is that you use the ParaLevel system. This lets
the primary part of the machine stay horizontal when on a slope.
Monitor the slope for the type of ground that can cause the machine to slip. On rough ground, move
carefully and decrease the speed of the machine when it is necessary.
Always use the ParaLevel system during field operation. Do not let the machine go near the limit where an
alarm sound operates and a message shows on the terminal. Only operate the machine if the primary part
is in a horizontal position.
When you operate on a slope, do not drive on a slope with more than the maximum work angle the
machine can operate on.
Operate the machine in 1 of the 3 directions:
• Horizontally across the slope.
• Vertically up, or vertically down the slope.
• If you must drive diagonally, always point the header up the slope.
Make no sudden turns when in operation. If the direction of the machines changes suddenly, the ParaLevel
system cannot level the machine as fast.
Connect the brake pedals to prevent a change in direction of the machine when you push the brakes.
Regularly do a test of the manual controls for the ParaLevel system. They are a second level of safety if the
automatic system does not operate correctly. The manual controls override the automatic system.
GUID-8164EA68-F560-4053-9912-C54A61480A8D [V1]
GUID-3FB597B8-B63B-482E-BEC4-C5E84EEAFBED [V1]
1. Safety
IDEAL Series Combine 53
ACX2738370
