Do not manually adjust the level system when you operate the machine on flat ground. This can have an
eect the engine lubrication system and cause engine damage.
Select the transport mode before you drive the machine on the public roads. This stops the Paralevel
system function.
1.9.10 Reverse alarm
When you move the machine in reverse, an external alarm automatically operates. The audible alarm is a
warning to personnel that the machine is moving in reverse.
1.9.11 Fire extinguisher
The fire extinguisher is on the cab access platform,
on the left side of the machine.
To operate the fire extinguisher:
• Release the latch that holds the fire
extinguisher.
• Remove the fire extinguisher from the bracket.
• Pull the locking pin out of the fire extinguisher.
• Point the nozzle at the bottom of the fire.
• Operate the handle.
If you replace the fire extinguisher, use an AGCO
approved model of the correct specification.
Capacity Minimum 6 kg
Fire class A, B or C
Temperature range -20 °Cto 60 °C
Make sure that the fire extinguisher has a regular
inspection by an approved person.

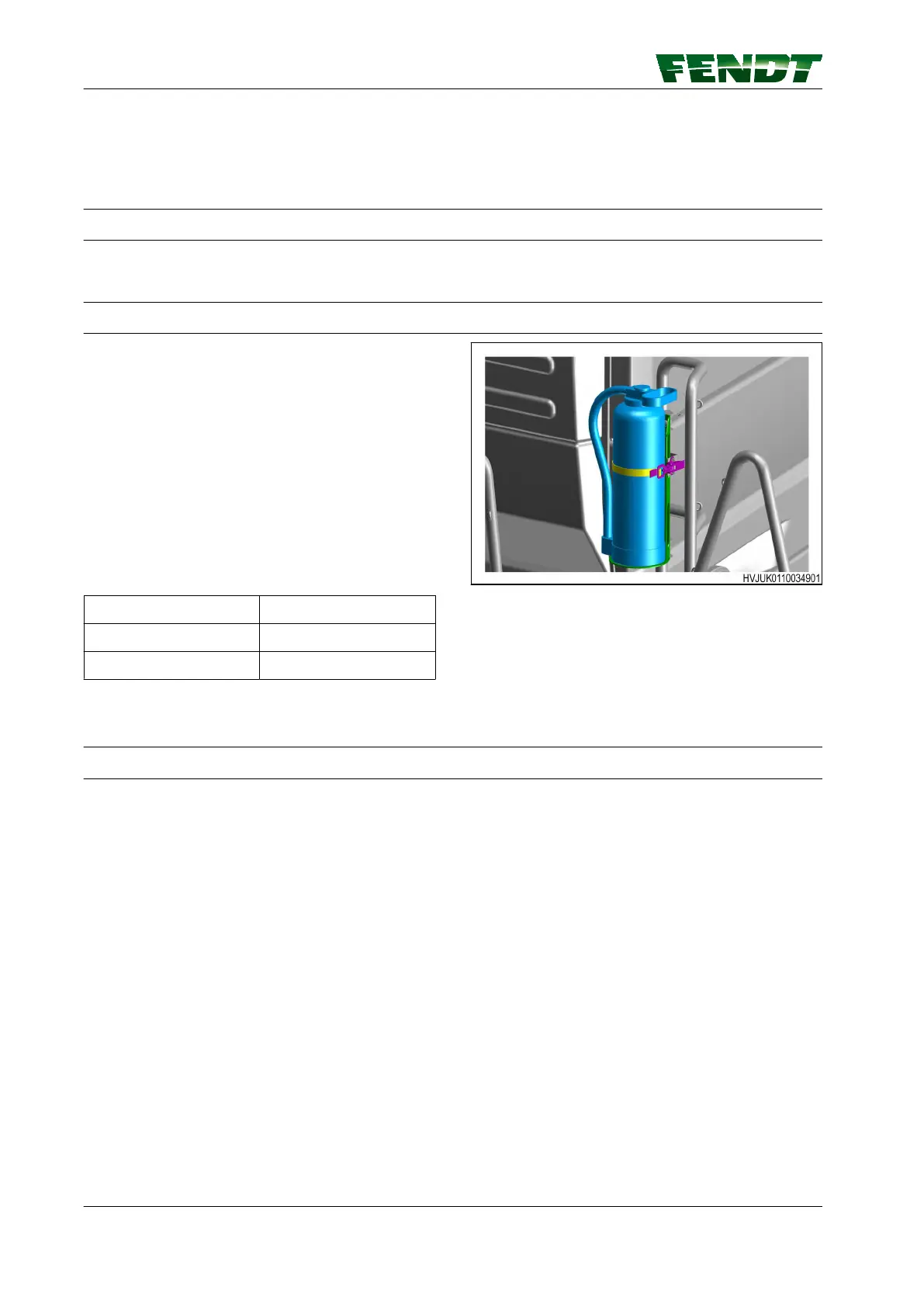

GUID-A335990B-704B-4D7E-9EA6-A7E45DA1F2CC-high.jpg [High]
Fig. 37
1.9.12 Dangerous areas
Personnel must keep a safe distance (1) of a minimum of 25 m from the machine when in operation. Only
approved personnel can go into this area. The dangerous areas include:
• The end of the unloading auger (2).
• The discharge at the rear of the machine (3).
• The header (4).
If personnel go into a dangerous area, stop the machine immediately.
GUID-138C0E9F-28B5-492E-93CD-6BA2D17FBF8C [V1]
GUID-E5CDF83D-0088-4580-BA47-A1F5B3C1088C [V1]
GUID-CCB47770-F4C1-462E-8BAA-21C84E2EF8AF [V1]
