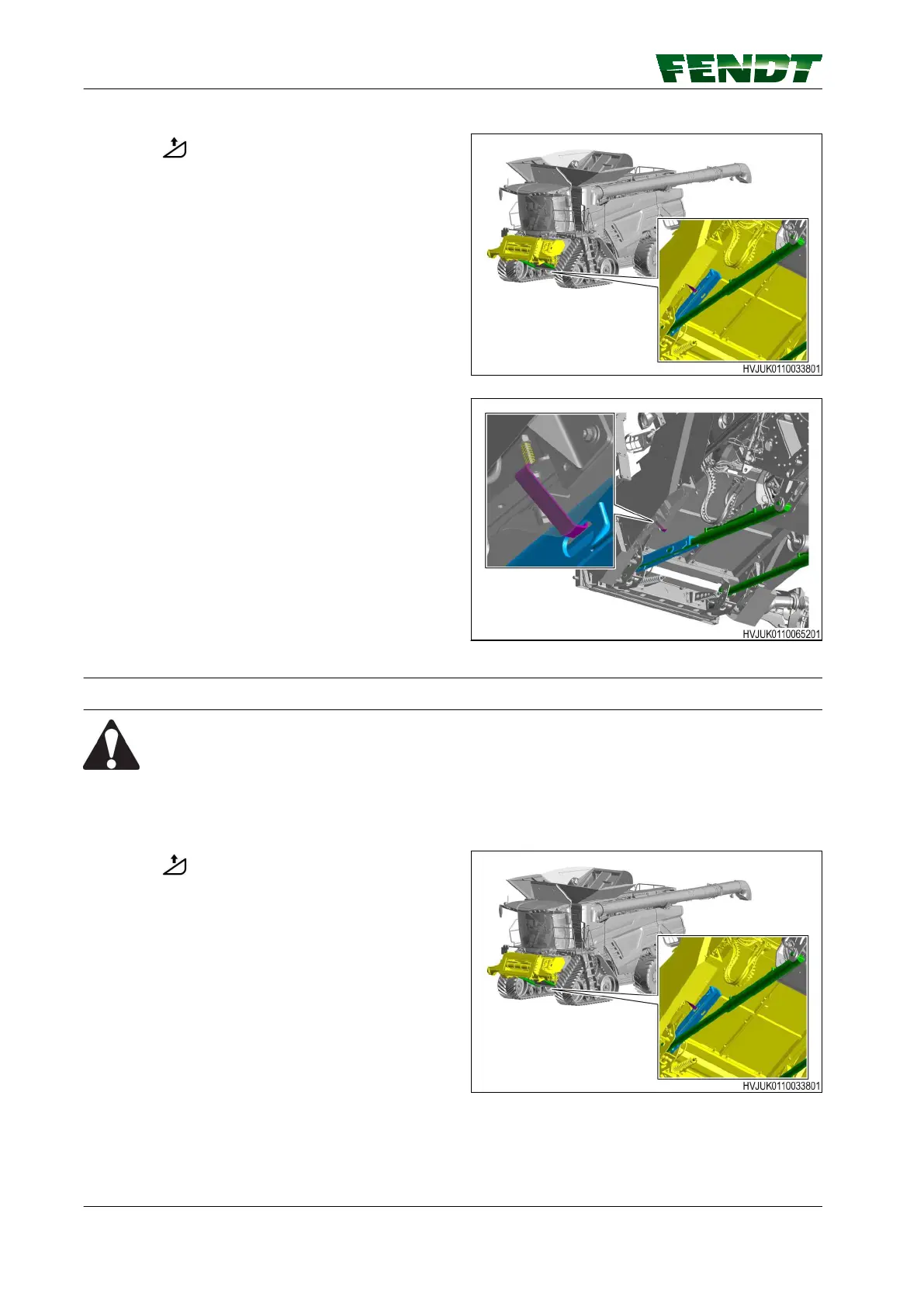

FENDT IDEAL Series - Disengage the Header Lift Cylinder Safety Stop

Procedure
1. Push on the multifunction lever to lift the
feeder housing to the top position. Make
sure that you fully extend the hydraulic
cylinder.
2. Set the engine to OFF.
3. Remove the ignition key from the machine.
GUID-FA08BB07-1DA8-43A1-B82C-6D757C180BF4-high.jpg [High]
Fig. 32
4. Release the spring loaded latch that holds
the safety stop in the stowed position.
5. Lower the safety stop on to the hydraulic
cylinder.
GUID-C85DD551-E831-4BCC-B7EB-5E86CEE2DB76-high.jpg [High]
Fig. 33
1.9.7 Disengage the header lift cylinder safety stop
WARNING: The machine can move without warning.
The machine is heavy and can cause death or injury.
Park the machine on a clean, hard and level area. Set the parking brake to ON and install
the wheel chocks.
Procedure
1. Push on the multifunction lever to lift the
feeder housing to the top position.
2. Set the engine to OFF.
3. Remove the ignition key from the machine.
GUID-FA08BB07-1DA8-43A1-B82C-6D757C180BF4-high.jpg [High]
Fig. 34
GUID-EB2BE705-8327-4B5A-967F-60D5B28E6B37 [V1]
1. Safety
52 IDEAL Series Combine
ACX2738370
