2. Turn the handrail clockwise.
3. Lower the handrail into the frame of the machine.
IMPORTANT:
Lower the engine handrail when you are not on the top of the machine.

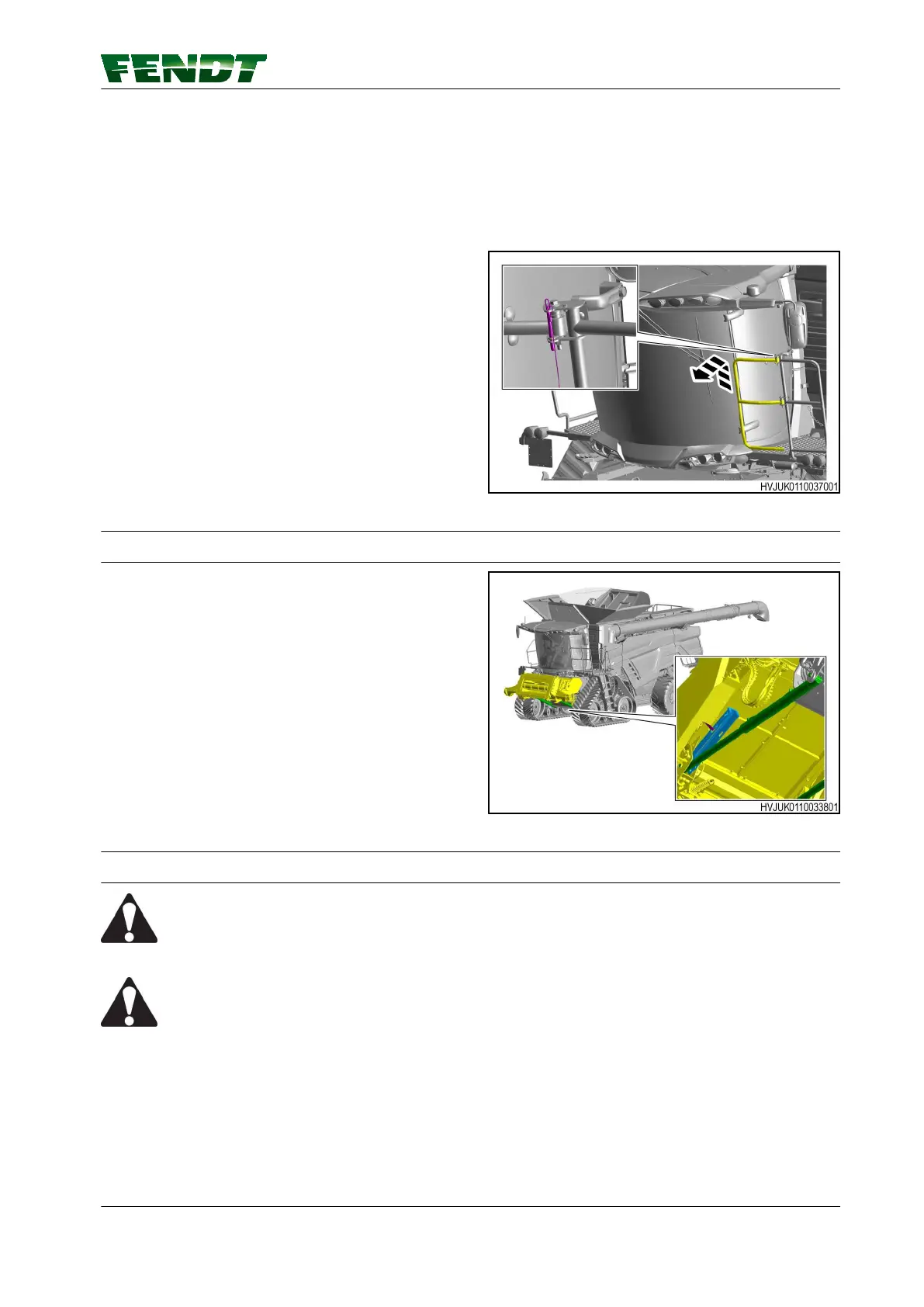

To get access to the windshield the handrail moves for access.
To move the handrail in to the correct position:
1. Remove the pin.
2. Lift the top of the handrail and push it to the
front of the machine.
3. Lower the handrail until it automatically locks at
90°.
4. To put the handrail in its initial position, lift the
handrail up and move it to the closed position.
Install the pin to stop the handrail from moving.
GUID-99A2338E-13BC-41AF-8A81-22C9243A36CF-high.jpg [High]
Fig. 30
1.9.5 Safety stop for the header lift cylinder
The safety stop makes sure that the header does
not move down. When you install the safety stop,
it makes sure that the left cylinder does not
compress and lower the header.
Always install the safety stop before you go below
the header or feeder housing.
Use the spring-loaded clip to hold the safety stop
in the stowed position when it is not in use.
GUID-FA08BB07-1DA8-43A1-B82C-6D757C180BF4-high.jpg [High]
Fig. 31
1.9.6 Engage the safety stop for the header lift cylinder
WARNING: Unwanted loss of hydraulic pressure.
Risk of death or injury.
Use the applicable supports when you do work near the header or feeder unit.
WARNING: The machine can move without warning.
The machine is heavy and can cause death or injury.
Park the machine on a clean, hard and level area. Set the parking brake to ON and install
the wheel chocks.
GUID-F382E1A6-1D88-455D-9A40-1A8EF73EA49A [V1]
GUID-88C83512-DC1E-4CAF-8431-6C3F2E974E6F [V1]
1. Safety
IDEAL Series Combine 51
ACX2738370
