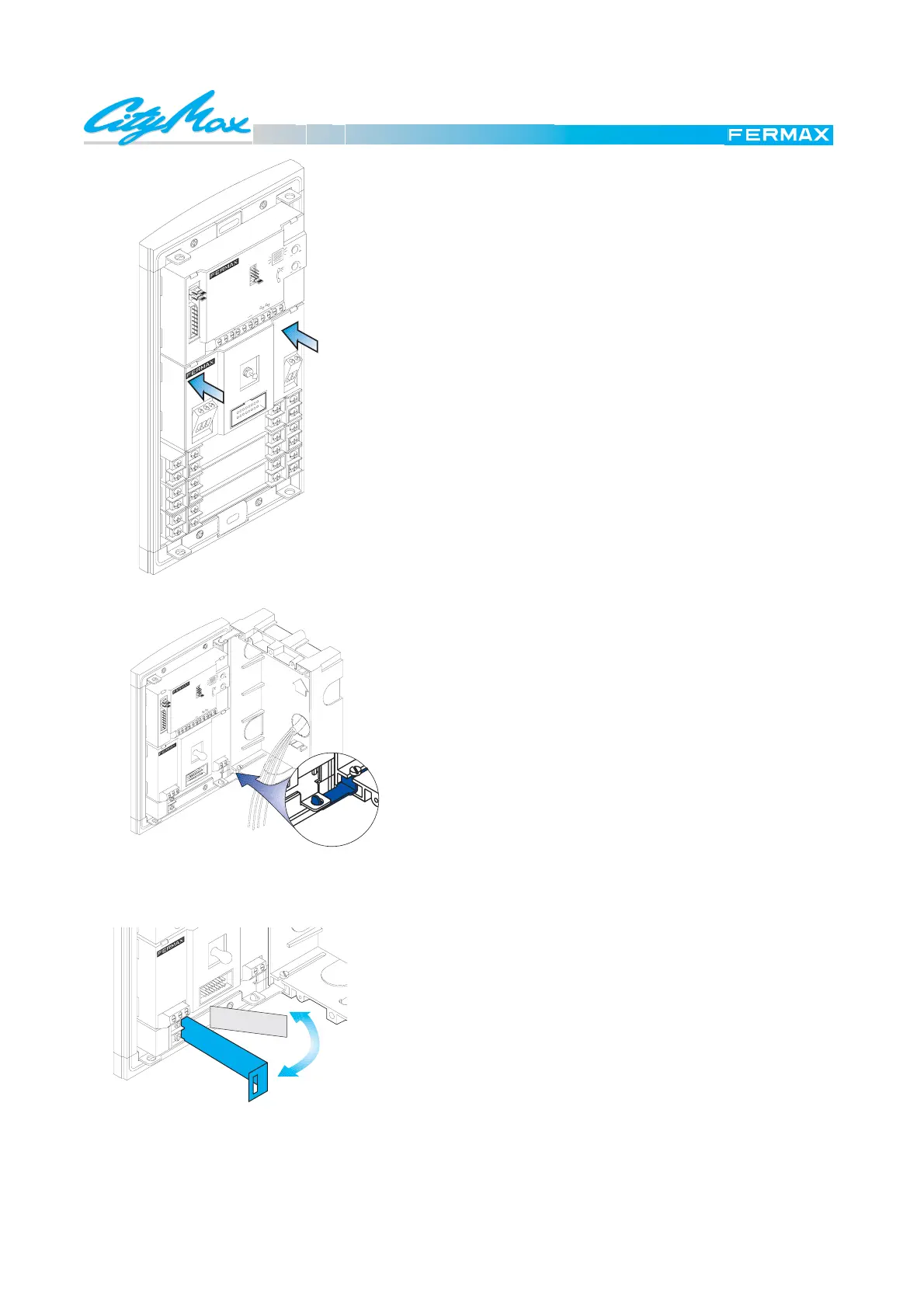

* How to mount the telecamera (or any other accessory for the
window).
Ensure the correct positioning of the telecamera by facing it straight in
the window and pushing it hard until the securing flanges are firmly in
place (you will hear a “click”).
The telecamera or whatever accessory installed must be fitted
completely flush with the front surface of the panel.
If the telecamera has to be removed, loosen the flanges with a
screwdriver and push backwards.
PRACTICAL ADVICE ON THE INSTALLATIONS
* Use the folding hinges to wire the electrical connections more
easily.
These hinges, which remain hidden once the box is mounted, allow the
panel to be hinged in any direction: to the left, to the right, upwards and
even downwards.
Choose which is the most convenient.
* How to insert the button identification labels.
Using a flat screwdriver, lift up the button’s plastic flap and insert the
corresponding label, once this has been completed with the relevant
information for that dwelling.
FERMAX supplies standard labels with each panel. You can use these
or some personalised ones, as long as they are the same size.
