Fermax LOFT VISION 5 - Basic Installation

Pag 11
Kit VIDEO LOFT VISION 5
Kit VIDEO LOFT VISION 5
VERY IMPORTANT NOTES
99
99
9 In replacement installations you must ensure that the cables are not bare or in
contact with any metallic part of the installation.
99
99
9 If the installation wiring is very worn, Fermax recommend that you change it,
following the previously shown specifications.
For greater distances or additional equipment the recommended sections are as
follows:
As this kit is installed without coaxial cable, the system is ideal for replacement of a stan-
dard 1 line entry system (5 wires) to transform it into a video entry system by making use of
the previous installation.
The 5 WIRE VIDEO ENTRY SYSTEM KIT is easy to install, advanced professional
equipment with no call wires OR COAXIAL CABLE.
BASIC INSTALLATION
BASIC INSTALLATION
V+
+
-
L
V-
1 - 50
50 - 100
100 - 200
75 Ohm
75 Ohm
75 Ohm
mm
mm
mm2,5
1,5
1
2
2
2
S
metros / metres
pies / feet
AWG
3 - 150
150 - 300
mm
2
17
15
13
D
300 - 600

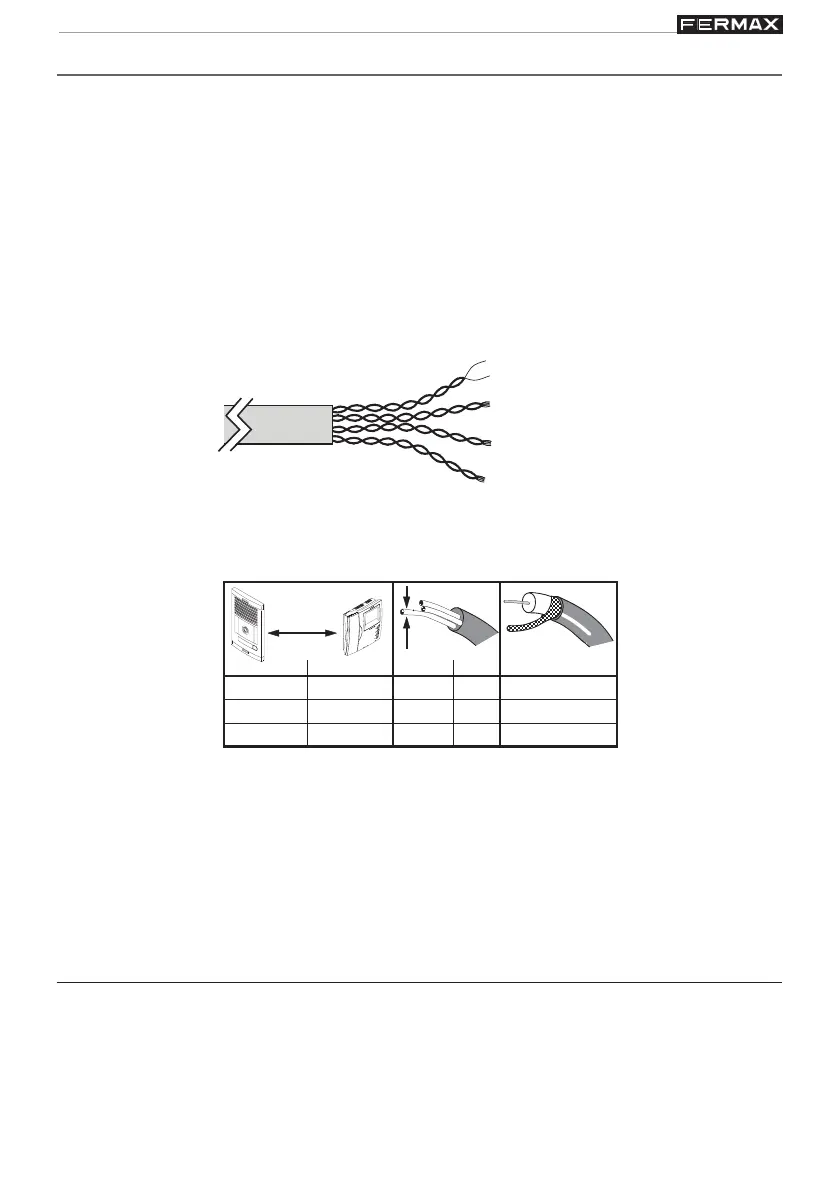

CAT 5 UTP 4 pair cable can be used, (distance up to 100 metres / 300 feet and consisting
only 1 monitor in the installation), as indicated below:
- 1 pair to connect «V+» and «V-», (video signal).
- 1 pair for «+», (positive feed).
- 1 pair for «-», (negative feed).
- 1 pair for «L», (audio/data line).
