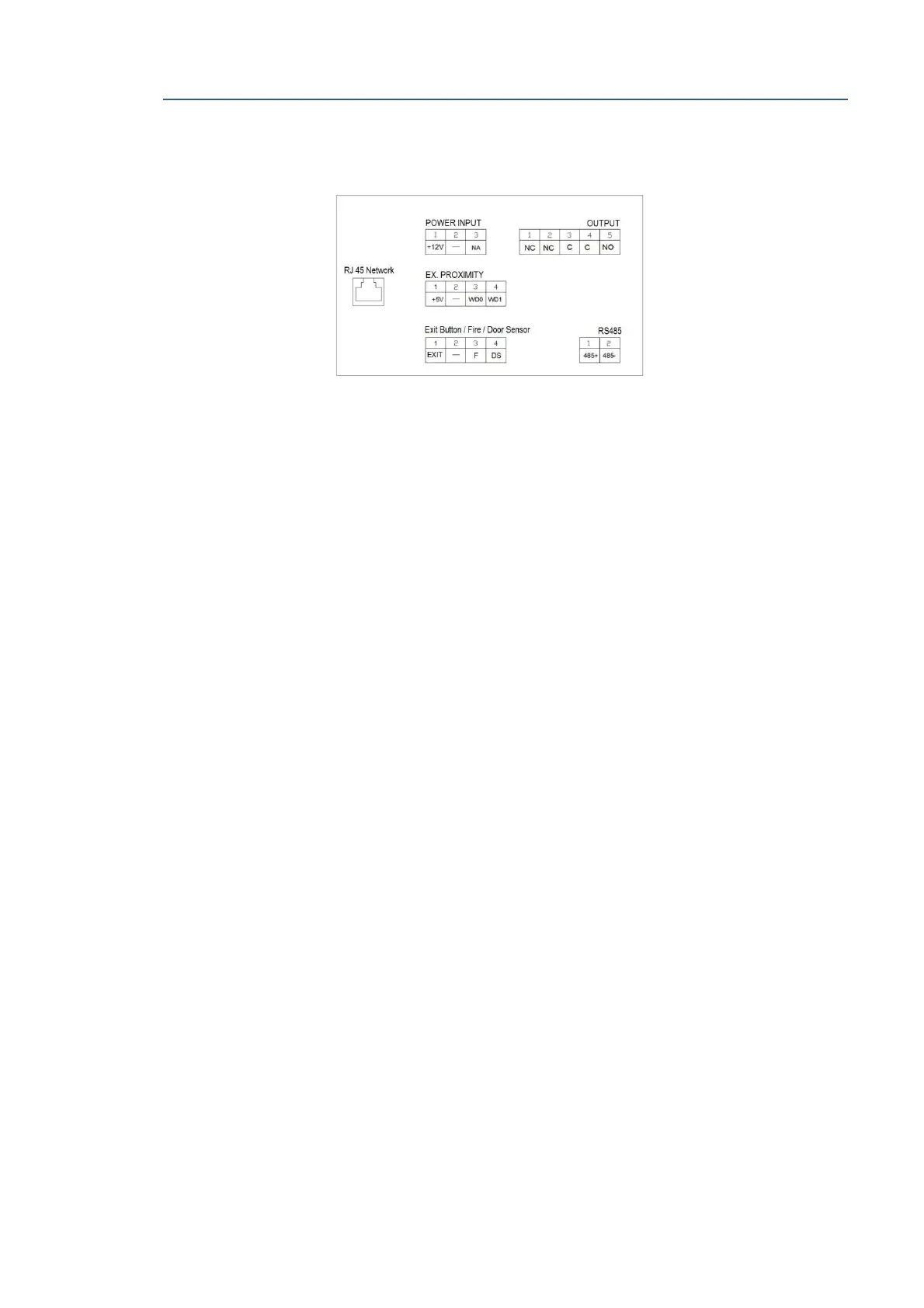

4.3 Connectors
The KIN panel is connected to the installation by means of connectors: Ethernet for LAN connection
and MOLEX type connectors for other connections (power supply, RS-485, etc.). A bag containing the
corresponding female connectors with their cables comes with the panel.
POWER INPUT: 12 Vdc power supply for the cases where no LAN PoE is available.
OUTPUT: Electric lock control relay output.
• NC: Normally closed contact
• NO: Normally opened contact
• C: Common
NOTE: NC & C contacts are internally duplicated
EX PROXIMITY (external proximity reader)
• (WD0-WD1) Wiegand input/output
• (+5V, -) 5 Vdc auxiliar output
Exit Button /Fire / Door Sensor. See NOTES.
• (EXIT, -) Connections for indoor button
• (F, -) Input for fire alarm & block doors unlock contacts
• (DS, -) Connection for door opened sensor
RS485
• Output for Ref. 1491/Ref. 9545 MEET LIFT Control Gateway, Ref. 1494 Guest code or
Ref. 1490 External Relay (*)
(*) Ref. 1490 works as an auxiliar relay in parallel with the panel´s relay.
RJ 45 Network
• RJ-45 LAN or LAN PoE connection
NOTES
EXIT, FIRE and DS require installer programming. See WEB BROWSER PRORAMMING for further
details
EXIT button allows users to open the door from inside.
FIRE input in PANEL No 1 has to be connected to a fire output relay of a third-party fire alarm
system. If a fire alarm is triggered, an alarm will sound in all the panels of the block, and all the
doors will remain opened.
Installing a door open sensor in DS, an alarm sounds in the panel and concierge if the door remains
opened during a programmed period, or the door has been forced as well.
