Fermax VEO DUOX

CONNECTIONS

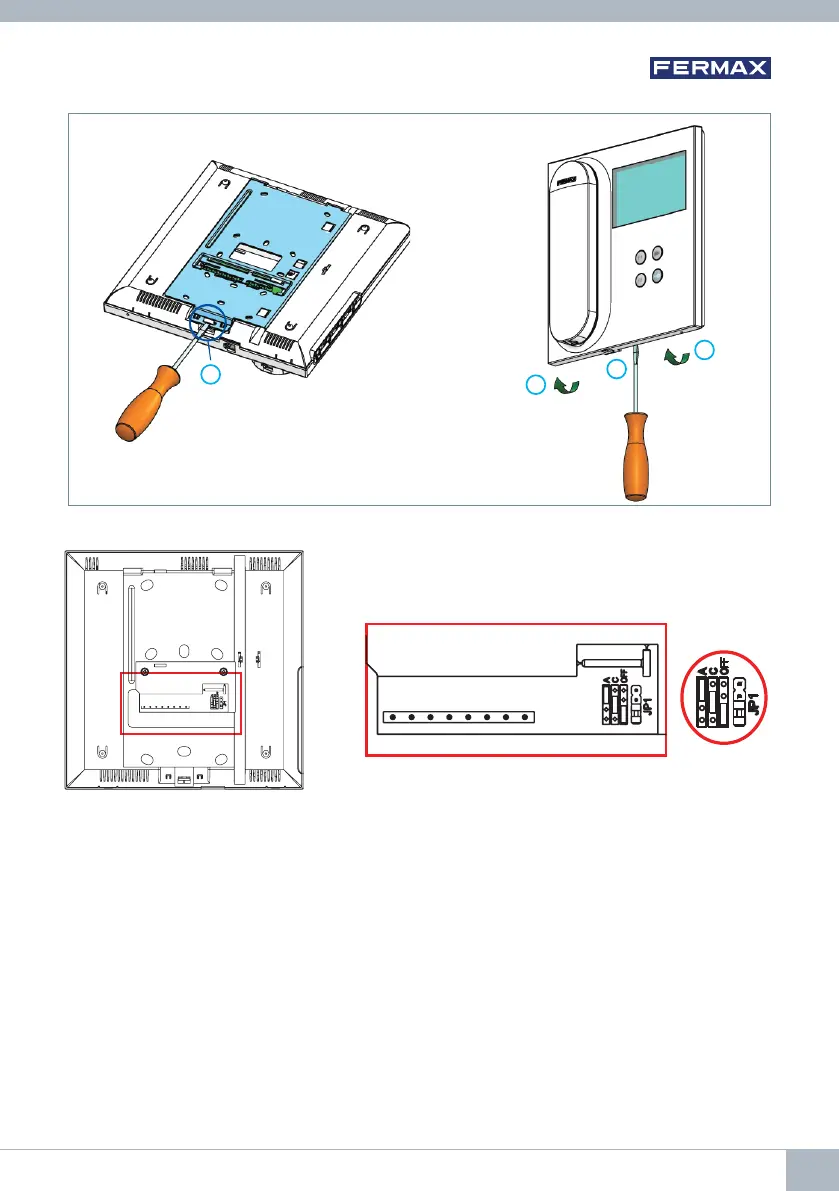

Disassembly-Detail
1
2
2
1
T
F1 A+ - Bout
Bin
Monitor Connectors:
Bin,Bin: Data, audio and video input.
Bout,Bout: Data, audio and video input (cascade connection).
T, -: Apartment door call button (P1).
A+, -: Option of connection with the following devices:
• Call extender ref. 2040.
• Light and buzzer commander ref. 2438.
F1: Additional function. (Negative output “-” / command transmission, see chapter
Buttons: Auxiliary function F1).
JP1: Integrated line adapter bridge
• Top: Adaptation type A.
• Centre: Adaptation type C.
• Bottom: Without line adaptation: OFF, (by default).
DUOX VEO MONITOR 5
