Wheel (2)Safety Bar
Release
Handle (2)
Backrest
Control Handle
HEAD END
FOOT END

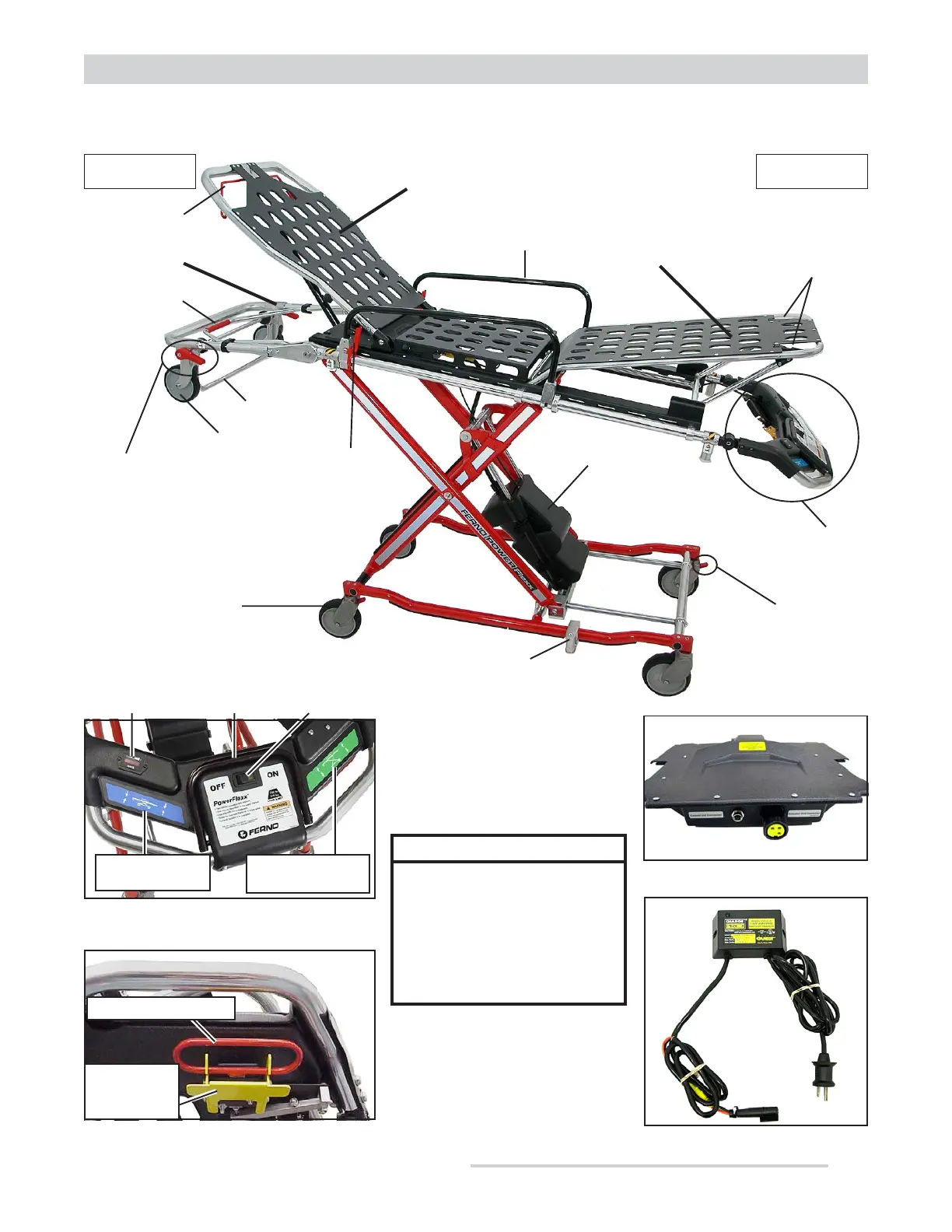

3.3 Components
About the Cot
24 VDC Power Pack Module
Shock Frame
6" Swivel
Wheel (4)
Wheel
Lock (2)
Safety Bar
Swing-Down
Sidearm (2)
Drop Frame
Control Handle
Hydraulic
Actuator Unit
Control Panel
(see insets)
Control Panel - Top
Battery Charge
Indicator Power SwitchLead Handle
LOWER/LOAD
Touch Pad
RAISE/UNLOAD
Touch Pad
175 Fastener Post
Sidearm Release
Handle
• Safety Hook
• Low-Profile Mounting Block
• Short Turn-Knob
• Users’ Manual
• Set of Restraints
• Mattress
ALSO INCLUDED:
Control Panel - Bottom
Manual Mode Handle
Release for
Manual Mode
Handle
Battery Charger
Backrest
Shock Frame
Release Levers
Drop Frame
