Ferris HydroCut Series User Manual

11
Features & Controls

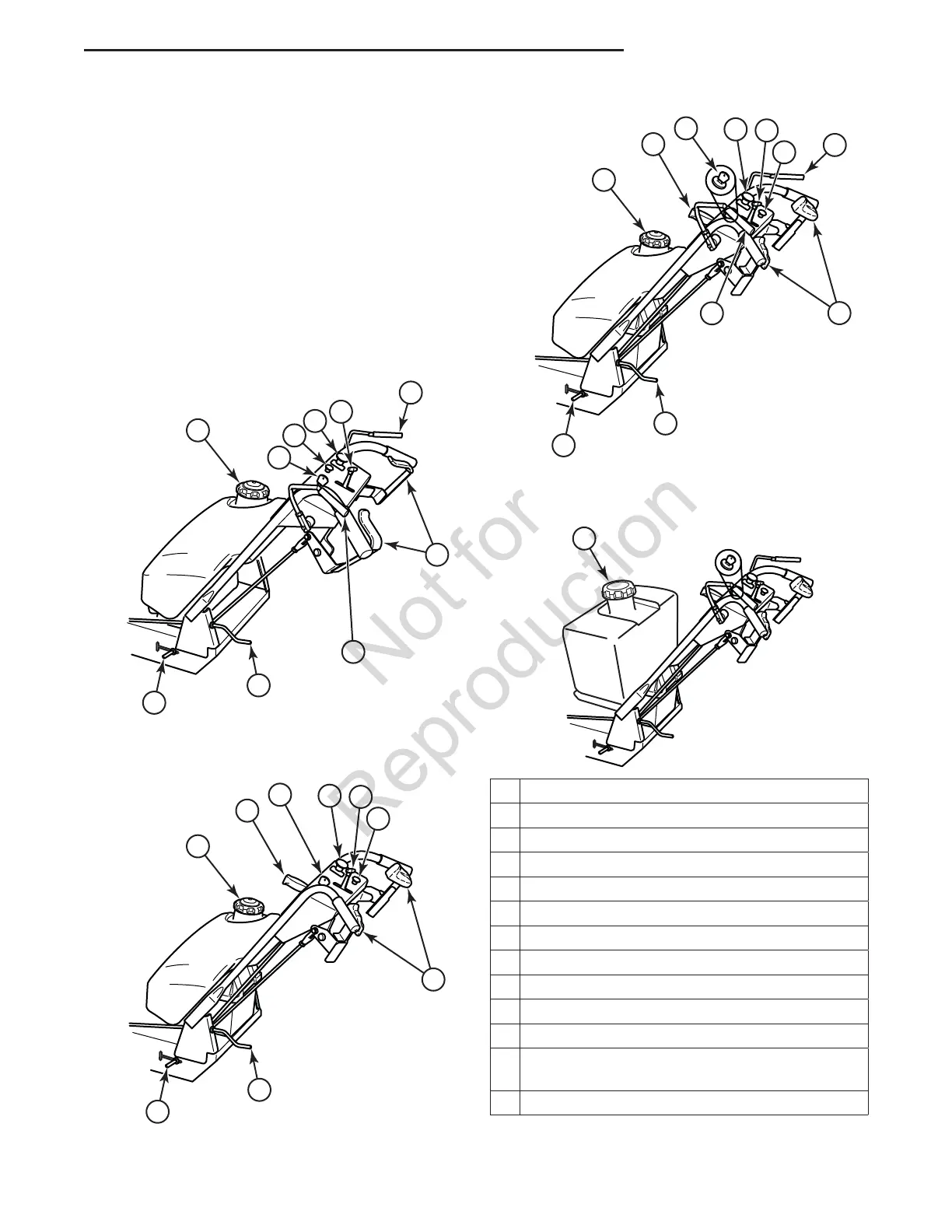

FEATURES & CONTROLS
Please take a moment and familiarize yourself with
the name, location, and function of these controls
so that you will better understand the safety and
operating instructions provided in this manual.
Control Functions
This information briefly describes the function of
individual controls. Starting, stopping, driving,
and mowing require the combined use of several
controls applied in specific sequences. To learn what
combination and sequence of controls to use for
various tasks see the OPERATION section.
Manual Start Models:
A
D
C
B
E
H
I
G
F
F
A Fuel Tank Cap
B Ignition Switch - 2 Position
C Choke
D PTO (Blade Engagement) Switch
E Throttle Control
F Operator Presence / Parking Brake Handles
G Ground Speed Control Levers
H Cutting Height Adjustment Handle
I Transmission Release Valve
J Parking Brake Lever
K Ignition Switch - 3 Position
L Operator Presence / Ground Speed Control
Levers
M Engine Kill / Operator Presence Levers
A
D
K
J
E
H
I
L
C
Electric Start (S/N: 2013136020 & Below):
Electric Start (S/N: 2013136021 & Above):
A
D
K
J
E
H
I
G
C
M
M
A
Some models are equipped with
rectangular fuel tanks:
Not for
Reproduction
