08
MAIN DISPLAY

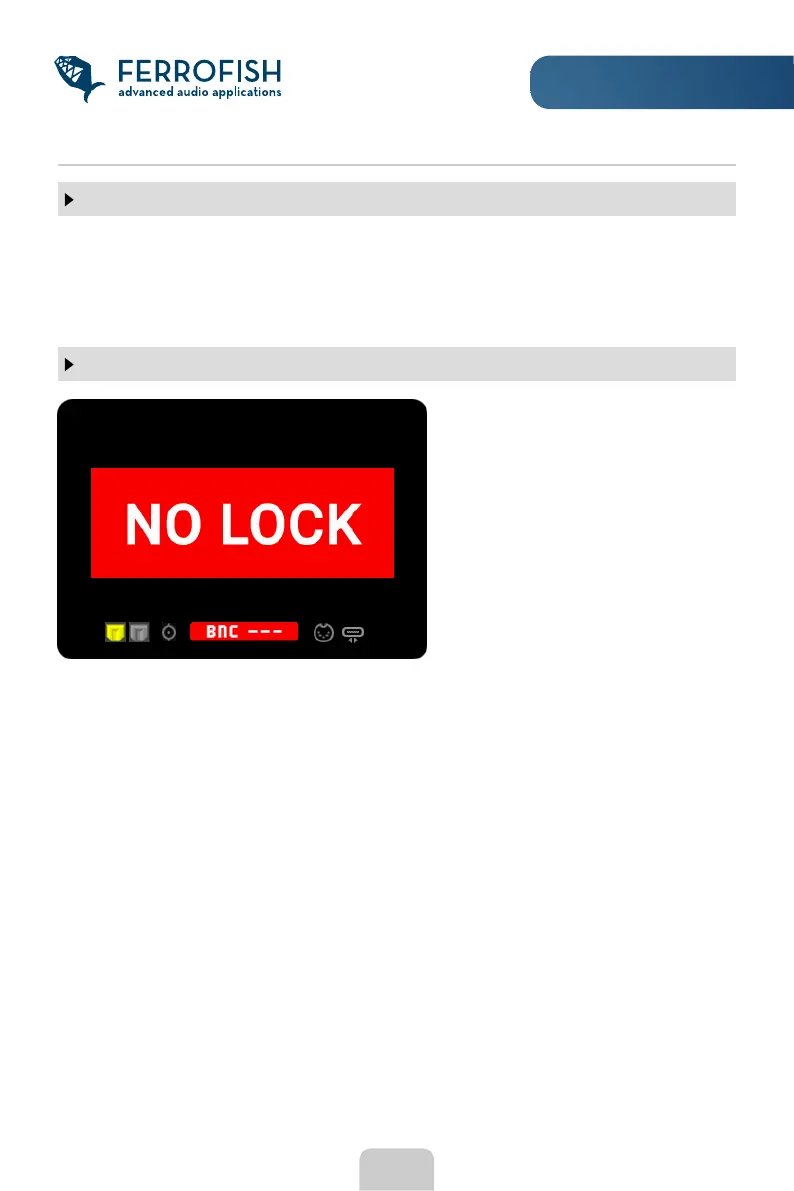

If no sampling frequency is detect-
ed at the selected clock source
(ADAT or BNC), this error message
appears.
Resolution of DAC and ADC chips
NO LOCK
All ADC and DAC chips as well as the FPGA chip work internally with 32-bit. Future
extensions via the DSP Stick port benet from this very high bit depth. However, the
ADAT specication only provides 24-bit, therefore the lower 8-bits are discarded
when transmitted.
