Ferroli DIVA C24 User Manual

DIVA C24 / C28 / C32
15
EN
cod. 3541E032 - Rev. 00 - 02/2014
5. TECHNICAL DATA AND CHARACTERISTICS
Table. 3 - Key fig. 17, fig. 19 and fig. 20

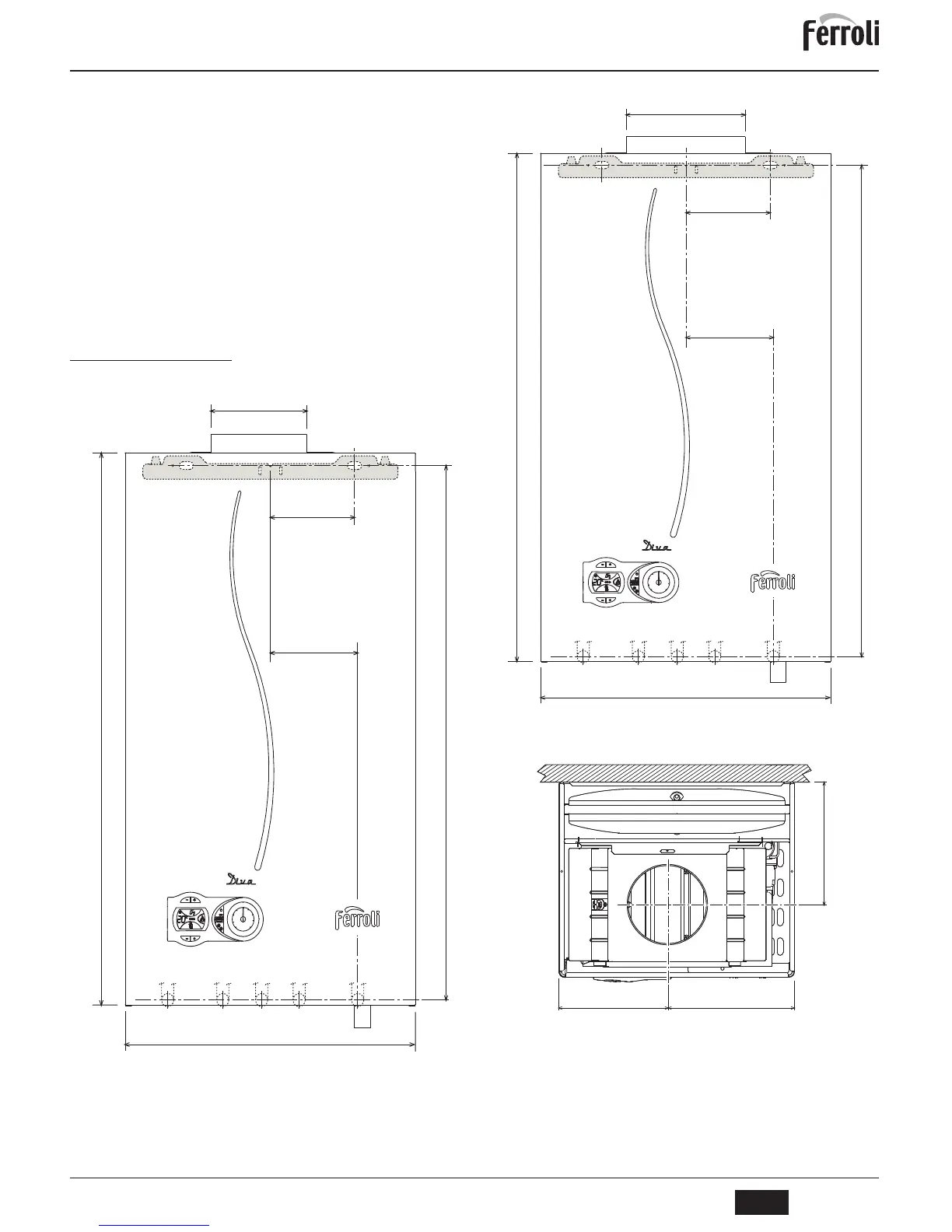

5.1 Dimensions and connections
Front view Model DIVA C24 (fig. 11)
fig. 11 - Front view
Front view Model DIVA C28 and DIVA C32 (fig. 12)
fig. 12 - Front view
Top view Model DIVA C24 (fig. 13)
fig. 13 - Top view
7 Gas inlet 39 Water flow limiter
8 Domestic hot water outlet 42 DHW temperature sensor
9 Cold water inlet 44 Gas valve
10 System delivery 49 Safety thermostat
11 System return 56 Expansion tank
14 Safety valve 74 System filling cock
19 Combustion chamber 78 Anti-backflow device
22 Burner 81 Ignition and detection electrode
27 Copper exchanger for heating and hot water 95 Diverter valve
32 Heating circulating pump 114 Water pressure switch
34 Heating temperature sensor 126 Fume thermostat
36 Automatic air vent 194 DHW exchanger
37 Cold water inlet filter 241 Automatic bypass
38 Flow switch
700
0
1
2
3
4
Ø131
680
400
117
120
10 8 7 9 11
700
0
1
2
3
4
680
400
117
121
Ø141
184
216
208
