EXTERNO
19
Cod. 3541T440 - Rev. 05 - 02/2020
IT

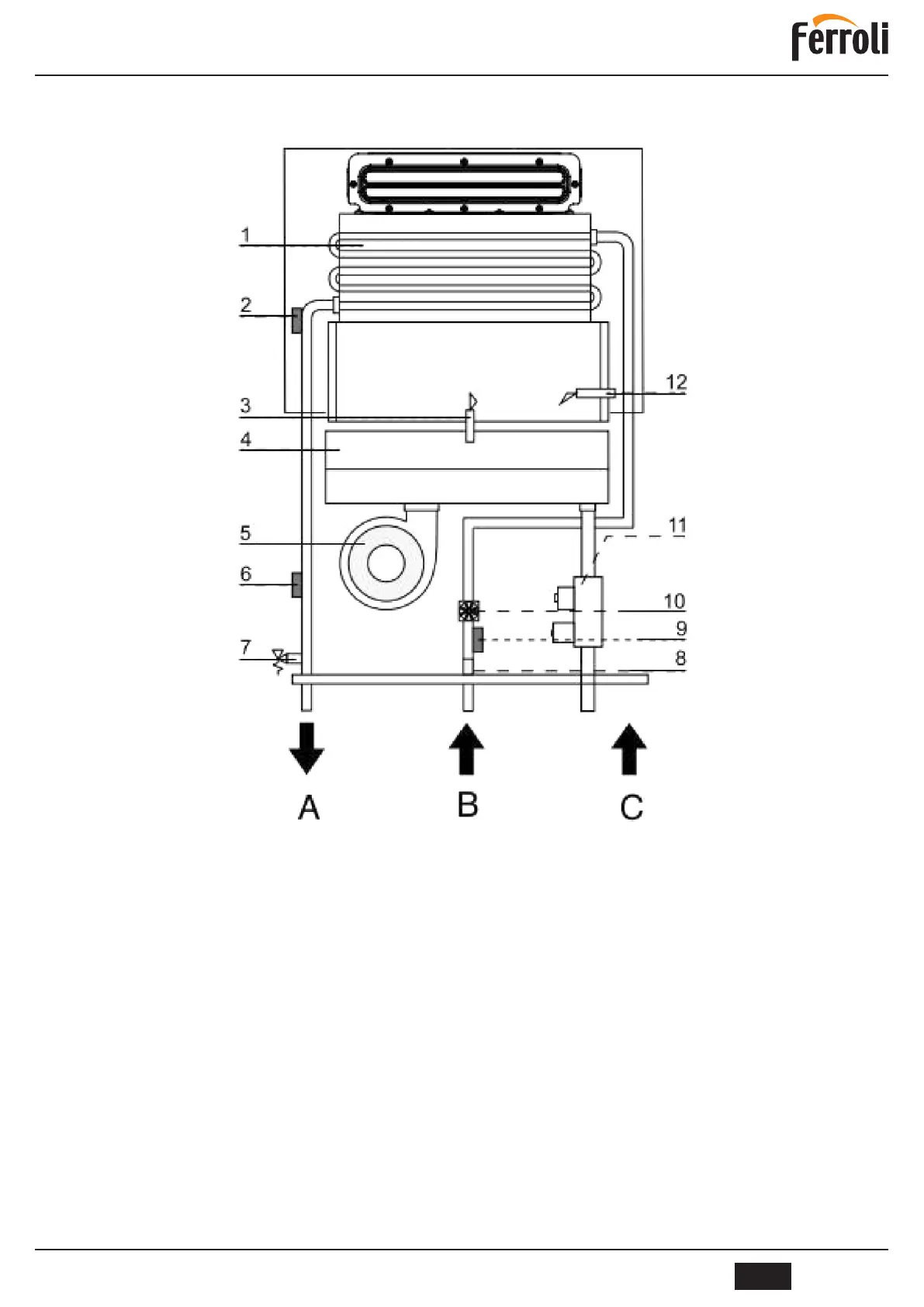

27. SCHEMA IDRAULICO
Legenda
1 Scambiatore di calore
2 Termostato di surriscaldamento
3 Elettrodo di rilevazione
4 Bruciatore
5 Ventola
6 Sensore temperatura acqua in uscita
7 Valvola di sicurezza
8 Filtro ingresso acqua fredda
9 Sensore temperatura acqua in ingresso
10 Flussostato acqua
11 Valvola gas
12 Elettrodo di accensione
