EXTERNO

Cod. 3541T440 - Rev. 05 - 02/2020

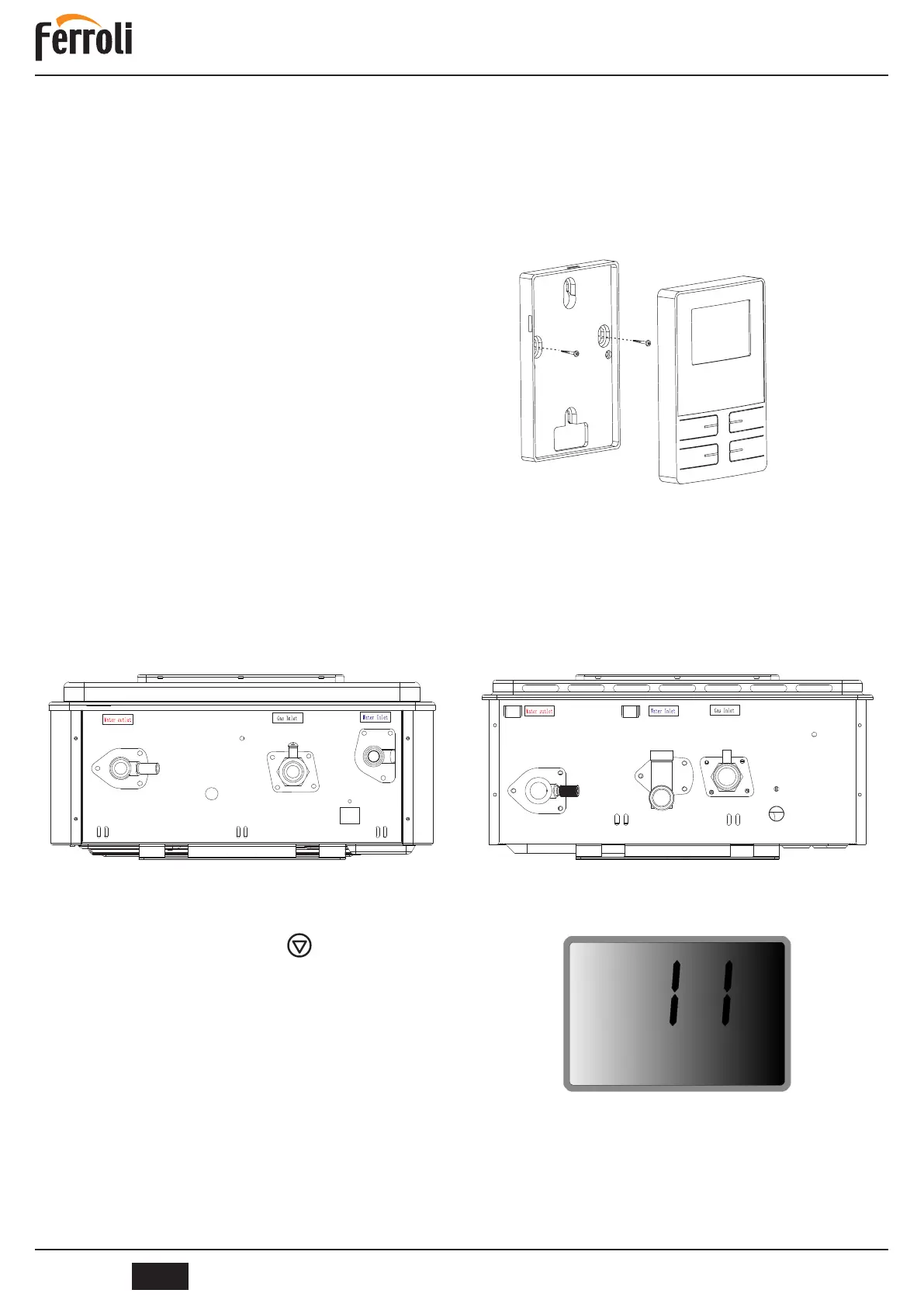

29. REMOTE CONTROL

The appliance is supplied with a Remote Control and the corresponding connection cable (10m).

Positioning the Remote Control

Make sure that:

• The remote control cannot be accessed by children.

• It is NOT installed near sources of heat.

• It is NOT installed in areas which could become wet (by spraying).

Separate the fixing base by inserting a screwdriver into the two

side cracks and fix the Remote Control base to the wall in the

chosen area, using the screws supplied with the appliance.If

necessary, cut the cable supplied to the desired length and ap-

ply the connectors supplied in the package to ensure power is

supplied properly and safely.

Remote Control connection

Proceed as follows:

• Disconnect the appliance from the electricity supply by switching the external bipolar switch to OFF:

• Remove the casing as indicated in paragraph “Instructions for opening the casing and performing internl ispection”.

• Insert the cable into the appliance via cable connection port L.

• Connect the cable to the P.C.B. - see electric diagram on following page.

fig. 8 - L= RC connection port - Mod. 11 and 16

fig. 9 - L = RC connection port - Mod. 22 and 26

Remote control pairing with PCB

Under standby mode, keep pressing “ “ button for 2 secon-

ds and the HMI displays “11” code, the press ON/OFF button to

confirm and exit pairing. It’ll confirm automatically after a short

while if ON/OFF button is still not pressed.To connect more re-

mote controllers, proceed the same steps, but the code will be

“12” and “13”in serie.The priority is allocated to controller “11”

as default.
