GN3

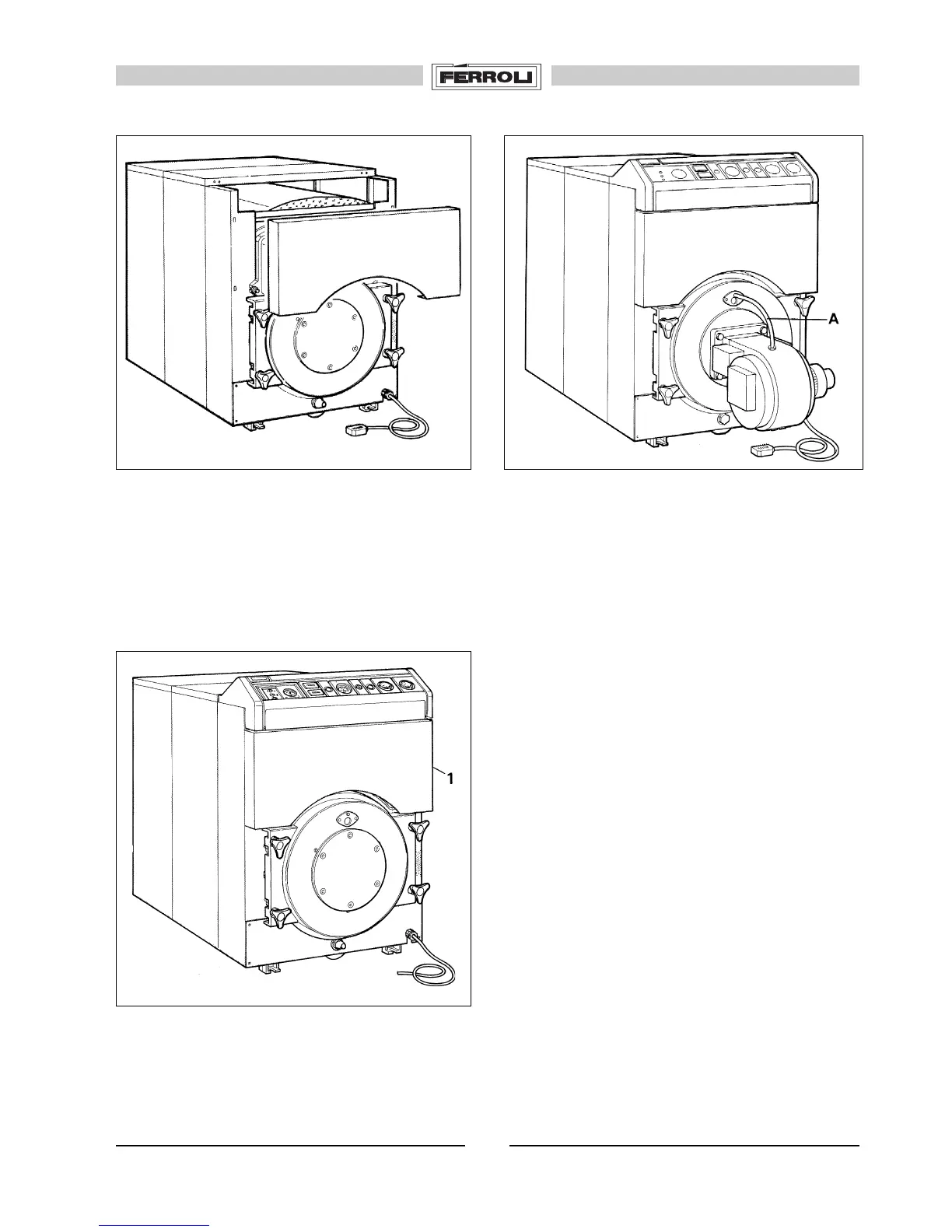

36. (Fig. 48) Mount the upper front panel. 38. (Fig. 50) Mount the burner according to the Manufac-
turer’s instructions. Also connect a tube to cool the boiler
porthole to the air tap of the burner (A).
37. (Fig. 49) Close the control panel and fix it in place with
the two self-threading screws 1.
Fig. 48
Fig. 49
Fig. 50
