Casing (fig. 5)
61 37025080 COMPL.RIGHT FRONT SIDE UNIT
62 37025090 COMPL.LEFT FRONT SIDE UNIT
63 37025100 COMPL.COMPON.SIDE UNIT TYPE 1 (6-9-13 elem)
64 37025110 COMPL.COMPON.SIDE UNIT TYPE 2 (6-9-10-11-13-14 elem.)
65 37025120 COMPL.COMPON SIDE UNIT TYPE 3 (7-11-12 elem.)
66 31000210 STUD COUPLING CLIP
67 31207470 SIDE FIXING BRACKET
68 31132780 CASING SUPPORT PLATE
69 37025160 COMPL.UPPER FRONT PANEL
70 34000640 STUD FOR COUPLING
71
72
73 37025170 COMPL.LOWER FRONT PANEL
74 36500200 RUBBER CORE HITCH ART. 302 OVA
75 37025130 COMPL.COMPON.COVER TYPE 1 (6-9-13 elem.)
76 37025140 COMPL.COMPON.COVER TYPE 2 (6-9-10-11-13-14 elem.)
77 37025150 COMPL.COMPON.COVER TYPE 3 (7-11-12 elem.)
78 31134530 COMPLETE REAR WALL
79 38503630 FERROLI TYPE DOUBLE CORE HITCH
80 38200860 COMPLETE INSTRUMENT PANEL
81 38701280 COMPLETE KNOB FOR THERMOSTAT
82 36401210 PROBE TR2 540499 C.1500 PVC 3CNT
83 36401450 PROBE LS 541577 C.1500 PVC 110°C
84 36450010 CIRC.THERMOM.0-120°C CAP.1000
85 34100442 PERFORATED HINGE 25x24 TH.1.2
86 31207520 WIRING SUPPORT PLATE
87 35001091 DARK BROWN SCREEN-PRINTED PLUG 96x144
98 36100200 SWITCH UP.SPL60 ART. 6000.8.05
89 36200390 RED WARNING LIGHT SPL80 ART. 6029.2.00
90 36504800 CLOCK ART. FWZ-55 220v-50HZ
91 38504852 WIRING CONTROL PANEL

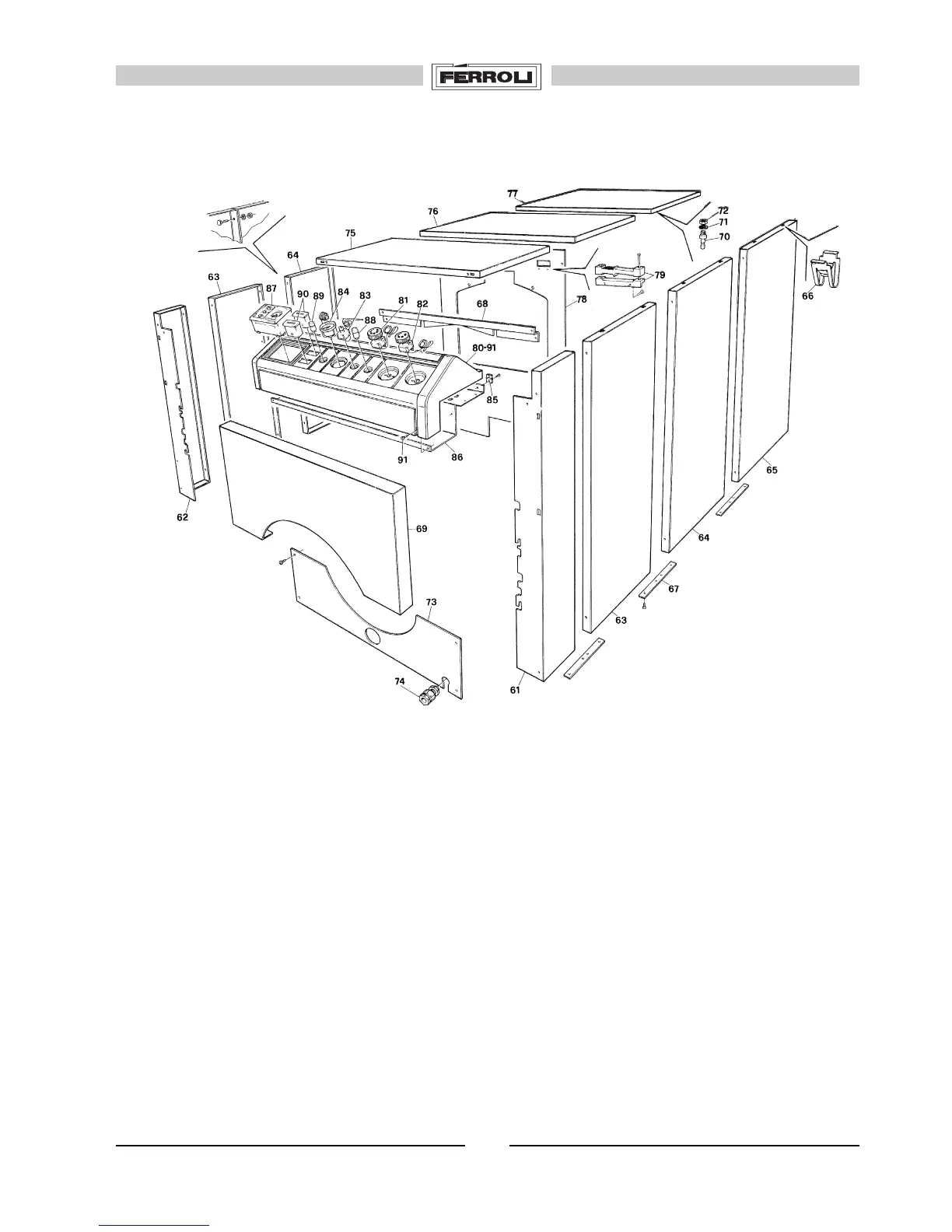

Fig. 5
