27
DOMINA F 24 - 30 E
FERELLA F 24 - 30 MEL
MILOS AIR COMPACT E
Version - 09.2002

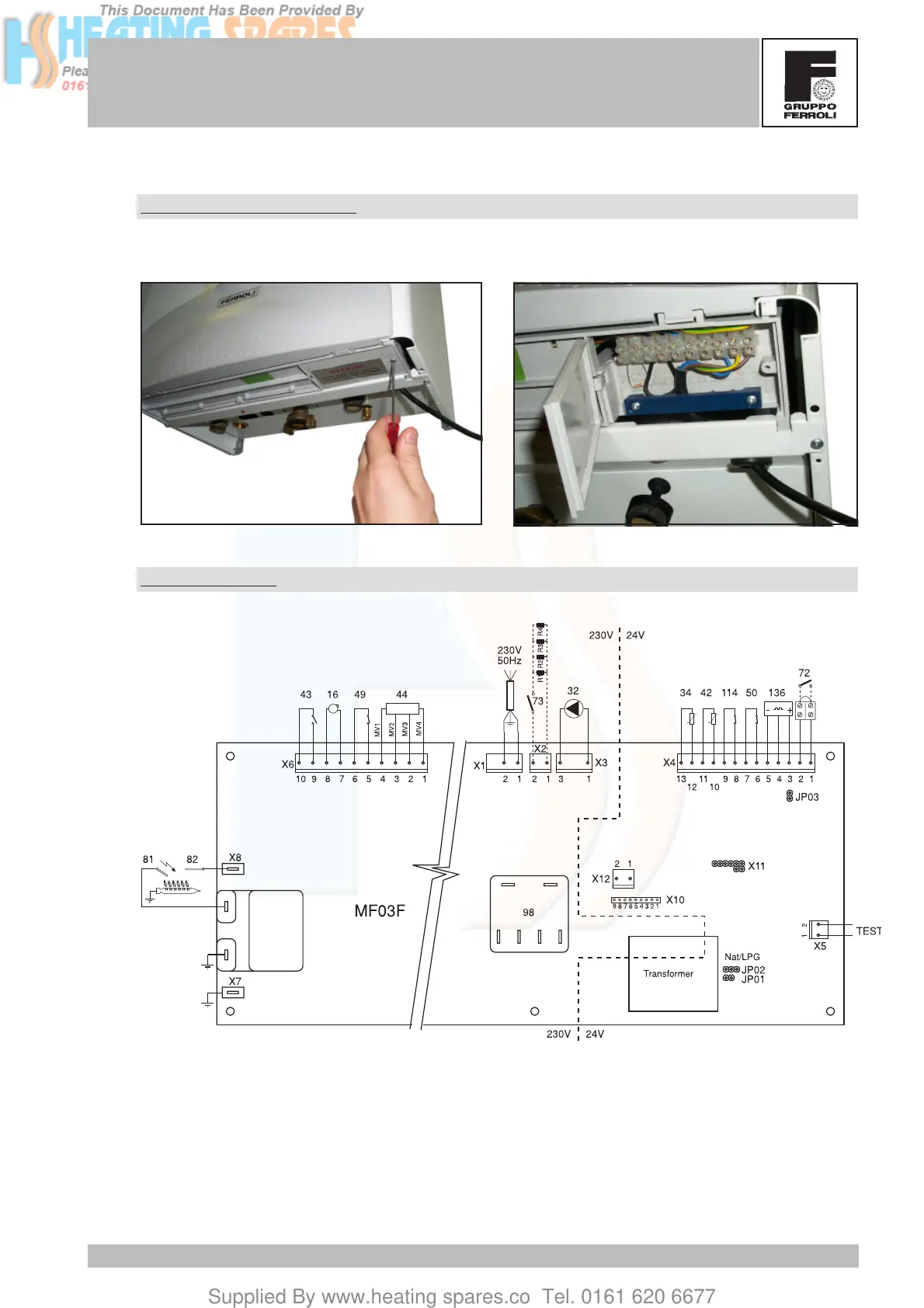

2.6 Electrical circuit
Electrical terminal board
Follow the instructions given in the figure to access the electrical connection terminal board.
The layout of the terminals for the various connections is given in the wiring diagram.
Wiring diagram
Key
16 Fan
32 Heating circulator
34 Heating temperature sensor
42 Tap water temperature sensor
43 Air pressure switch
49 Safety thermostat
50 Heating thermostat
72 Room thermostat (not supplied)
73 Antifreeze thermostat
81 Ignition electrode
82 Detection electrode
114 Water pressure switch
136 Flow meter
N.B. Respect the phase and neutral connections
