Fig. 11
Fig. 12
Fig. 13
External controls: room stat or
remote time clock in the place of
loop terminals 4 and 5. Please
note 24 V only.

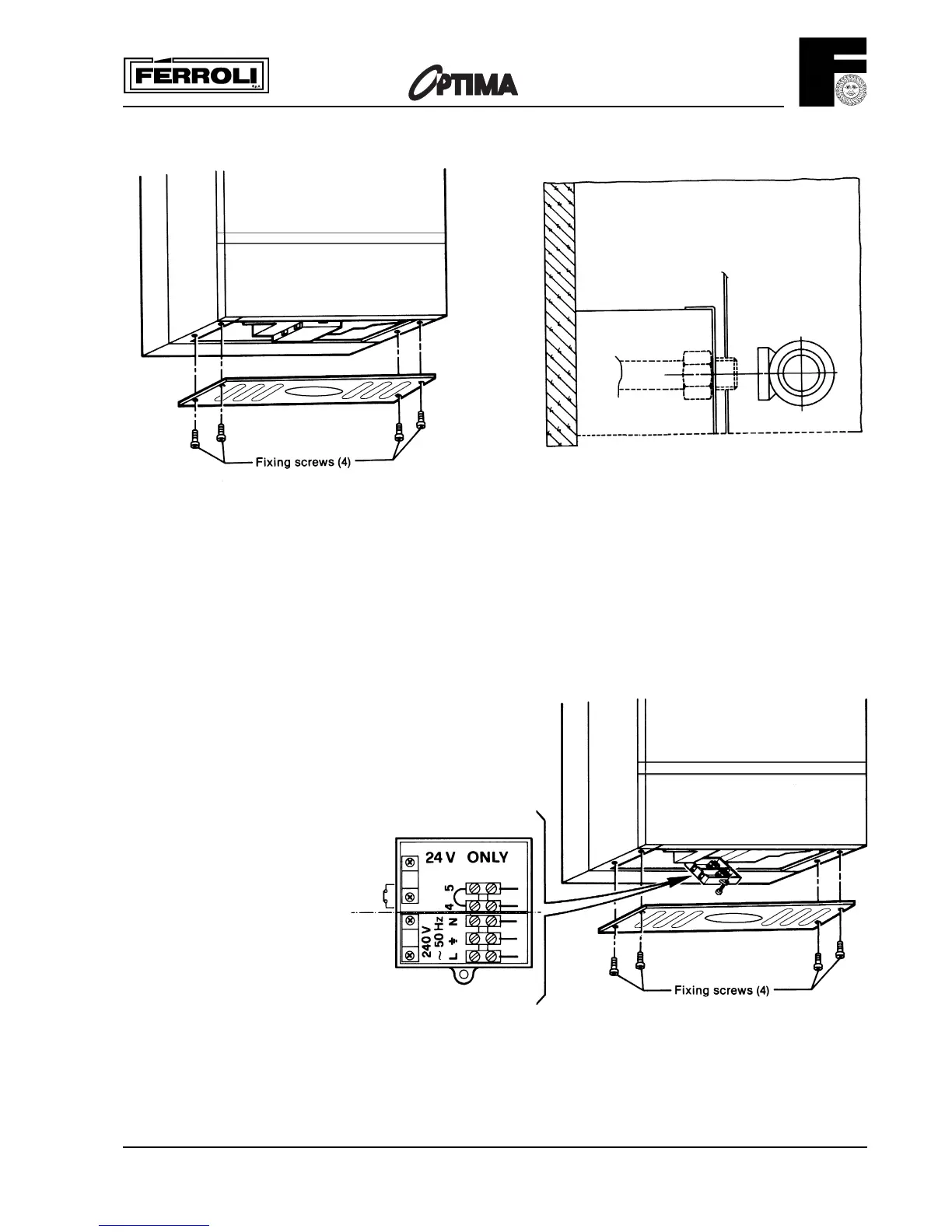

4.0 ELECTRICAL INSTALLATION
Electrical installation must be carried out by a competent electrician. The appliance is to be connected
to a 240 V ~ 50 Hz supply (see fig. 13). The supply fuse rating is 3A. The terminals are accessible
after removing the boiler base plate and single screw securing the terminal cover (see fig. 13).
